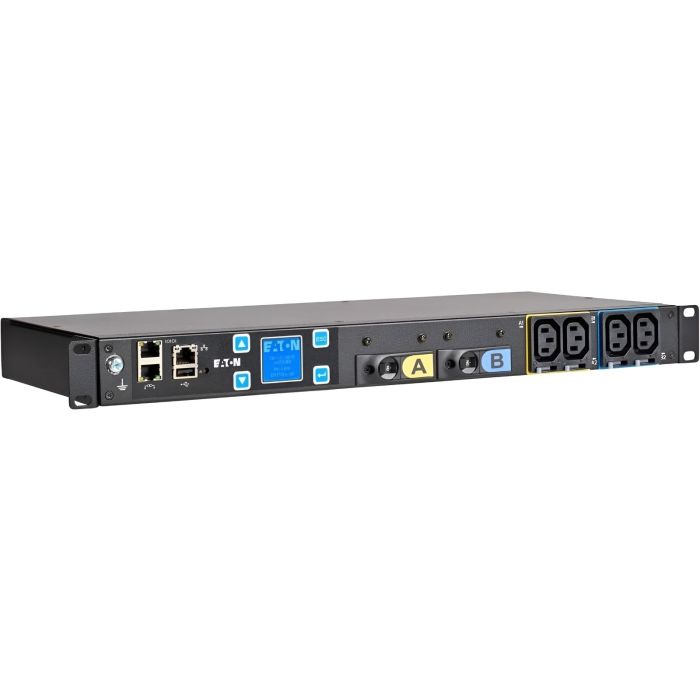

Eaton EMIT05-10 Metered Input PDU 1PH, 1U, 200–240V, 5760W, Output: (16) C13 – Refurbished
Eaton Metered Input PDU 1U, 200–240V, 24A, 5.76 kW
Model: EMIT05-10
Input Connection: NEMA L6-30P (200–240V)
Cord Length: 10 ft
Output Connections: (16) IEC C13
Phase: Single-Phase
Condition: Refurbished PDU
Warranty: 3-Year Replacement Warranty
CAD $747.49
In stock
Manufacturer: Eaton
Model: EMIT05-10
Input Connection: NEMA L6-30P, 10 ft cord
Output Connections: (16) IEC C13
Phase: Single-Phase
Maximum Power: 5.76 kW
Current Rating Nominal Input Voltage: 24 A
Frequency: 50–60 Hz
Condition: Refurbished PDU
Product Description: Description: Eaton EMIT05-10 Metered Input PDU is a 5.76kW rackmount power distribution unit designed for reliable power delivery in IT and data center environments, featuring a 200–240V single-phase input with NEMA L6-30P connection, providing (16) IEC C13 outlets for efficient equipment distribution, with built-in metering for real-time monitoring of current, voltage, power, and energy usage, without outlet switching capability, housed in a compact 1U horizontal form factor, ideal for applications requiring input-level power visibility, includes robust steel construction and compliance with UL and RoHS standards.
Eaton EMIT05-10 Metered Input PDU 1PH, 1U, 200–240V, User Manual
EMIT05-10 - Eaton Metered Input PDU Specifications:
Input :
|
Nominal Input VoltageEMIT05-10 - Eaton Metered Input PDU Specifications |
200–240V |
|
Input Frequency |
50–60 Hz |
|
Input Connection |
NEMA L6-30P |
|
Cord Length |
10 ft (3.05 m) |
|
Acceptable Input Voltage |
200–240V ±10% |
|
Maximum Input Current |
24A |
|
Number of Power Cords |
1 |
|
Phase |
Single-Phase |
|
Overload Protection |
Yes |
Output:
|
Output Connector(s) |
(16) IEC C13 |
|
Maximum Total Current Draw |
24A |
|
Output Power (Max) |
5.76 kW |
|
Remote Outlet Monitoring |
Yes (Metered Input PDU) |
|
Outlet Control |
No (Not Switched) |
|
Transfer Time |
N/A |
Physical:
|
Form Factor |
1U Rackmount |
|
Rack Units |
1U |
|
Height |
1.69 in (43 mm) |
|
Width |
19 in (483 mm) |
|
Depth |
8 in (203 mm) |
|
Unit Weight |
8.8 lb (4 kg) |
|
Mounting Location |
Horizontal Rack |
|
Material |
Steel |
Environmental:
|
Operating Temperature |
0°C to 60°C (32°F to 140°F) |
|
Operating Relative Humidity |
5–95% non-condensing |
|
Operating Elevation |
0–3,000 m |
|
Storage Temperature |
-25°C to 65°C (-13°F to 149°F) |
|
Storage Relative Humidity |
5–95% non-condensing |
Certifications & Compliance :
|
Certifications |
UL Listed, RoHS Compliant, TAA Compliant |
Communications & Management (EMIT05-10):
|
Control Panel |
Advanced LCD pixel display (local) |
|
Remote Monitoring |
Yes, full monitoring via network interface |
|
Network Interface |
10/100 Ethernet (Network Management Card 2) |
|
Communication Protocols |
SNMP v1/v2c/v3, HTTP/HTTPS, Telnet, SSH, FTP, SCP |
|
Load Monitoring |
Real-time current, voltage, power and energy |
|
Logging |
Event logs and energy data via web interface |
|
Alarm |
Configurable alarms (overload, threshold, network events) |
|
Notifications |
Email, SNMP traps, syslog |
|
Firmware Upgrade |
Supported via web interface (NMC2) |
|
Outlet Control |
Not supported |
