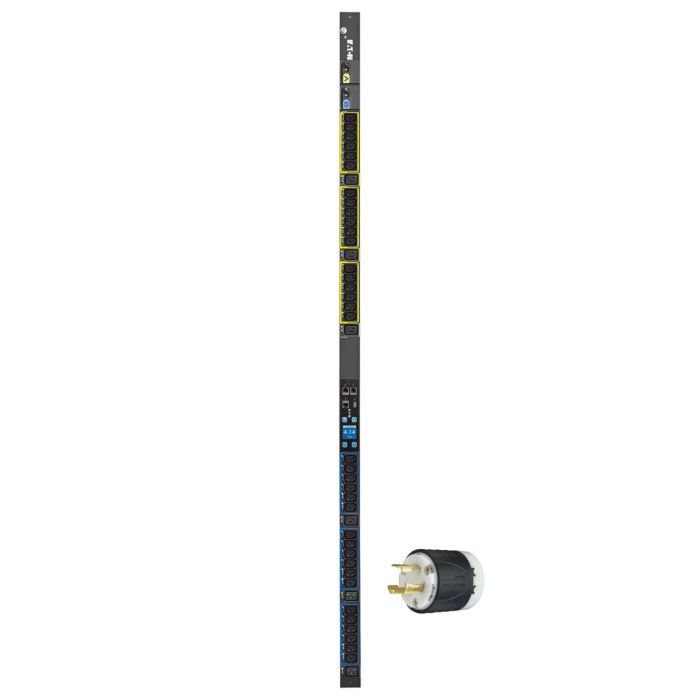

Eaton Metered EMI104-10 PDU 0U 5760W 24A 200-240V, Outlets:(36)C13 & (6)C19 - Refurbished
Eaton Metered Input PDU 0U 5760W 24A 200-240V
Model: EMI104-10Â
Input Connections: NEMA L6-30P (200-240V)
Cord Length: 10ft
Output Connections: (36) C13 Outlet grip, (6) C19 Outlet grip
Refurbished PDU
1 Year Replacement Warranty
CAD $804.99
In stock
Manufacturer:Â Eaton
Model:Â EMI104-10
Description:Â Eaton Metered Input PDU 0U 5760W 24A 200-240V
Input:Â NEMA L6-30P
Output:Â (6) IEC 320 C19Â (36) IEC 320 C13
Condition: Refurbished PDU
Warranty:Â 1 Year Full Replacement Warranty, additional warranty available
Eaton is a metered input PDU (Power Distribution Unit) designed for single-phase (1PH) use and mounted in a 0U format, allowing for space optimization. It features an L6-30P input with a 10-foot cord and delivers up to 5.76 kW of power with a 24A current, operating within a voltage range of 200-240V. This model provides 42 outlets in total, including 36 C13 outlets and 6 C19 outlets, making it suitable for a wide range of IT equipment and servers. It's ideal for data centers or installations requiring efficient and monitored power distribution.
Â
Eaton Metered Input PDU 0U 5760W 24A 200-240V - User Manual
Eaton EMI104-10 Specifications:Â
Input
|
Nominal Input Voltage |
200-240V |
|
Input Frequency |
50 - 60 Hz |
|
Cord Length |
10 feet (3.05 metros) |
|
Acceptable Input Voltage |
200-240VAC |
|
Input Connectors(s) |
NEMA L6-30P |
|
Maximum Input Current |
24A |
Output
|
Output Connector(s) |
(6) IEC 320 C19Â (36) IEC 320 C13 |
|
Overload Protection |
Yes |
|
Maximum Total Current Draw |
24 |
Environmental
|
Operating Environment |
0°C to 60°C (32°F to 140°F) |
|
Operating Relative Humidity |
5 - 95% |
|
Operating Elevation |
0 - 3000 meters |
|
Storage Temperature |
-25°C to 65°C (-13°F to 149°F) |
|
Storage Relative Humidity |
5 - 95% |
|
Storage Elevation |
0 - 15000 meters |
Physical
|
Weight |
15.54 lbs (7.05 kg) |
|
Height |
66.5 inches (169 cm) |
|
Width |
2.1 inches (5.3 cm) |
|
Depth |
2.05 inches (5.2 cm) |
