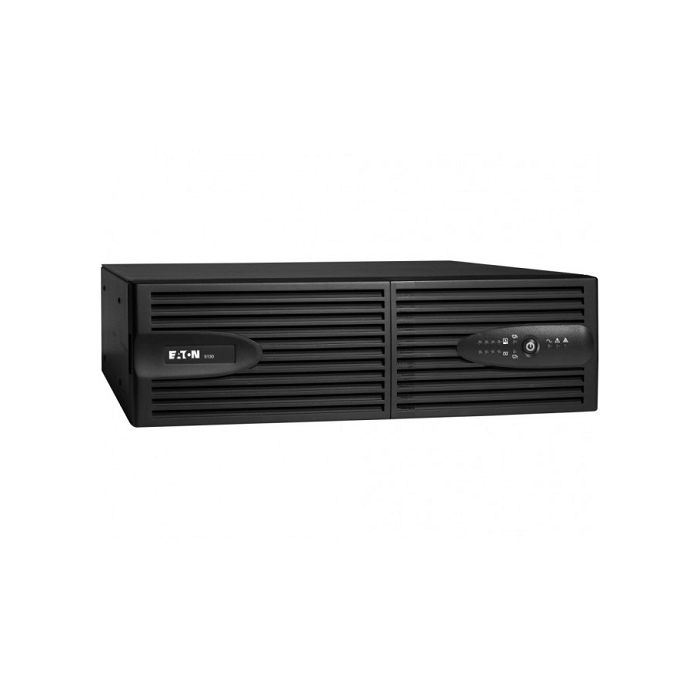

Eaton Powerware 5130 Rack/Tower UPS 3000VA PW5130L3000-XL3U

General

Topology

Line interactive

Catalog Number

PW5130L3000-XL3U

Rating (VA/Watts)

2880/2700

Dimensions (H x W x D, inches)

5.1 x 17.4 x 19.1

Weight (lbs)

75.6

Contents
(Ships with the following items)

1 ready-to-go UPS
Intelligent Power Software Suite CD: (Intelligent Power Manager, Intelligent Power Protector, Network Shutdown Module, LanSafe and Personal Solution-Pac)
RS-232 Serial Cable
USB Cable
User Guide
Phillips Head Screwdriver
Quick Start Instructions
4-post Rail Kit
Cord-Retention Brackets

Electrical Input

Connection

(1) NEMA L5-30P

Input Cord

6 ft. (1.8 m)

Input Voltage Range

80-151V (* The high and low thresholds can be user adjusted using the downloadable UPS Configuration tool)

Nominal Voltage

120 VAC

Nominal Current

25.4 A

Breaker Ratings

30A

Electrical Output

Output Receptacles

(6) NEMA 5-20R

(1) NEMA L5-30R

On Utility Voltage Regulation

102-132 Vac

Efficiency (on Battery)

0.75

Battery

Battery Type

12V/9 Ah; sealed, lead-acid; maintenance free

Environmental and Safety

Heat Dissipation (BTU)

Line: 588, Bat: 3,071

Operating Temperature

0˚C (32˚F) to +35°C (95˚F)

Safety markings

UL 1778; UL497A; cUL (CAN/CSA C22.2, No. 107.1)

EMC Markings

FCC Part 15 subpart B Class A

Markings

UL; cUL
