Description
Details
Manufacturer: Eaton Powerware

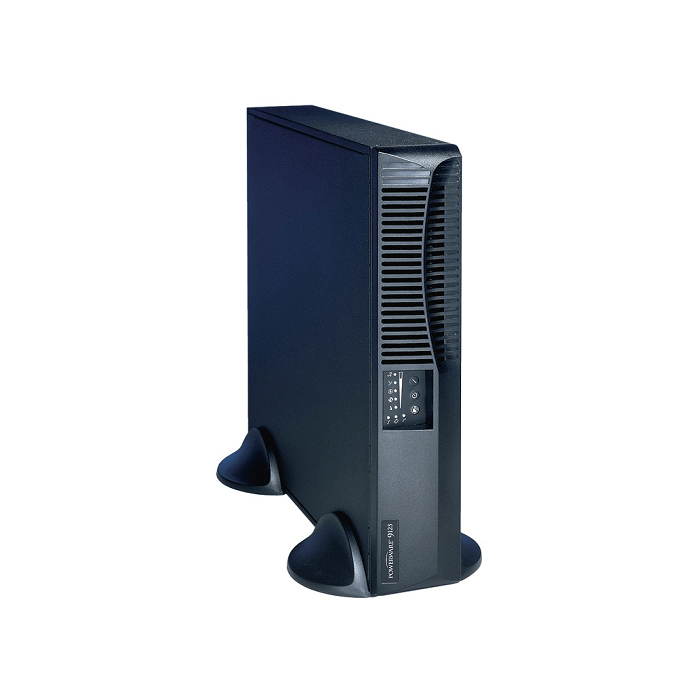

Model: PW9125-2500U Eaton Powerware 9125 Rack/Tower UPS 2500VA
Condition: Refurbished with New Batteries
Part Number: PW9125-2500U
Warranty: 1 Year Extended Warranty, additional warranty available
The PW9125-2500U comes refurbished with new batteries. The Eaton UPS comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
PW9125-2500U Specifications:
Input:
Input Plug |
NEMA L5-30P (30-Amp Twistlock) |
Voltage Range |
80 - 144V (without using batteries) |
Input Power Factor |
> 95% |
Frequency |
50/60 Hz, autosensing (Frequency Range 45 - 65 Hz ) |
Output:
Output receptacles |
(2) NEMA 5-15R (Standard 3-prong receptacles) (2) NEMA 5-20R (20-Amp 3-prong receptacles) (1) NEMA L5-30R (30-Amp Twistlock) |
On Utility Voltage Regulation |
+/-3% of nominal |
Efficiency |
89 - 92%, depending on load |
Frequency Regulation |
+/- 3 Hz online; +/- 0.1 Hz on battery |
Battery:
Runtime at half-load |
(875 Watts): 16 minutes |
Runtime at full-load |
(1750 Watts): 7 minutes |
Battery Replacement |
Hot-swappable internal |
Recharge Time |
<2 hrs. from complete discharge to 80% capacity at nominal line conditions |
Start-On-Battery |
Allows start of UPS without utility input |
Communications:
Serial Port |
RS-232 communications port standard |
Environmental and Safety:
Safety Markings |
UL, CSA, and NOM |
EMC Markings |
FCC Class B and VCCI Class II |
Surge Suppression |
IEEE/ANSI C62.41 Category B (formerly 587) |
Physical:
Height |
3.5 inches (89 mm) |
Width |
17 inches (432 mm) |
Depth |
23.9 inches (607 mm) |
Weight |
82 lbs (37 kg) |
Audible Noise |
<45 dBA (on utility); <50 dBA (on battery) |
Heat dissipation |
2066 BTU/hr |
Additional Info
Additional Info
Manufacturer | Eaton Powerware |
---|---|
Form Factor | Tower |
Waveform in Battery Mode | Pure Sinewave |
Input Voltage | No |
Output (VA) | No |
Output Voltage | No |
PDU Total Outlets | N/A |
