Description
Details

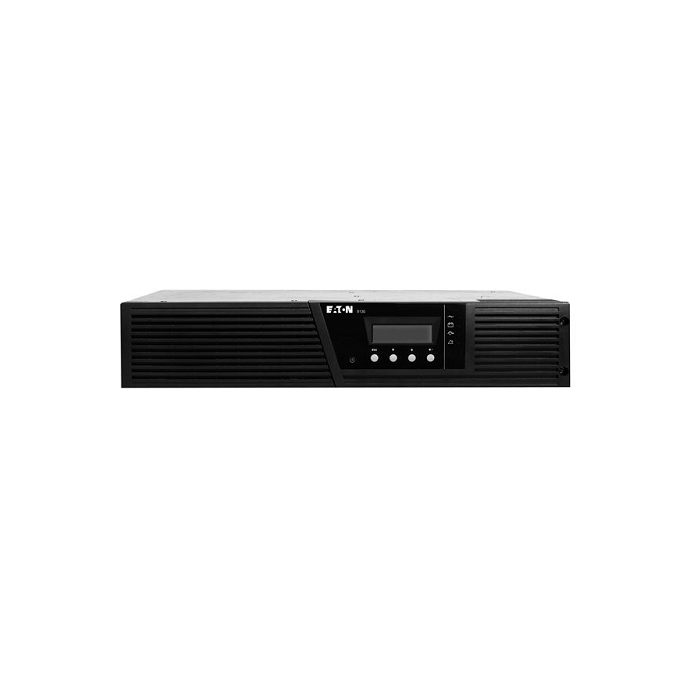

Manufacturer: Eaton Powerware 9130 Rackmount UPS 2000VA
Model: PW9130i2000R-XL2U Refurbished
Condition: Refurbished with New Batteries
Part Number: PW9130i2000R-XL2U
Warranty: 1 Year Extended Warranty, additional warranty available
The PW9130i2000R-XL2U is refurbished and comes with fresh new batteries. The PW9130i2000R-XL2U comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
PW9130i2000R-XL2U Specifications:
General |
|
Topology |
Online, double-conversion |
Catalog Number |
PW9130G2000T-XL |
Color |
Black |
Rating (VA/Watts) |
2000/1800 |
Diagnostics |
Full system self-test |
Efficiency |
>95% in high-efficiency mode; >86% in online mode |
UPS Bypass |
Automatic bypass |
Dimensions (H x W x D, inches) |
12.8 x 8.4 x 16.1 |
Weight (lbs) |
76.1 |
Contents |
1 ready-to-go UPS |
Electrical Input |
|
Connection |
(1) NEMA L6-20P |
Input Cord |
6 ft. Detachable |
Input Voltage Range |
160-276 Vac |
Nominal Voltage |
208 VAC |
Frequency |
50/60 Hz |
Frequency Range |
45–65 Hz |
Nominal Current |
9.6 A |
Breaker Ratings |
10A |
Electrical Output |
|
Output Receptacles |
(4) NEMA 6-20R (1) NEMA L6-20R |
On Utility Voltage Regulation |
±3% of nominal |
Voltage Wave Shape (On Battery) |
Sine wave |
Power Factor |
0.9 |
Frequency Regulation |
±3% Hz online |
Load Crest Factor |
3 to 1 |
Load Segments |
Two configurable, individually controlled receptacles |
Battery |
|
Optional Extended Battery Module |
PW9130N3000T-EBM |
Battery Type |
96 Vdc; (8) 12V, 9 Ah |
Start On Battery |
Allows start of UPS without utility input |
Communications |
|
User Interface |
Graphical LCD with blue backlight and text in English, French, German, Russian and Spanish |
LEDs |
Four status-indicating LEDs |
Communication Ports |
(1) USB, (1) RS-232 serial |
Communications Slot |
Optional communication slots (BD Slot) |
Optional Communication Cards |
SNMP/Web card for direct control and monitoring in SNMP-based networks, monitoring of UPS status and meters through Web browser interface Relay card for integration to industrial environment and building management systems, remote shutdown for IBM AS/400 systems |
Power Management Software |
Bundled Intelligent Power Software Suite CD |
Environmental & Standards |
|
Heat Dissipation (BTU) |
Line: 838, Bat: 1348 |
Audible Noise |
<50 dB |
Operating Temperature |
0°C to 40°C(32°F to 104°F) in online mode, with linear derating for altitude. NOTE:Thermal protection switches load to bypass in case of overheating |
Safety markings |
UL, CUL, VCCI |
EMC Markings |
FCC Class A, EN55022 Class A |
Storage Temperature |
-20°C (-4°F) to +40°C (104°F) with batteries and -25°C (-13°F) to +55°C (131 °F) without batteries |
Relative Humidity |
5–90% non-condensing |
Additional Info
Additional Info
Manufacturer | Eaton Powerware |
---|---|
Form Factor | Rackmount |
Waveform in Battery Mode | Pure Sinewave |
Input Voltage | No |
Output (VA) | 2000VA |
Output Voltage | No |
PDU Total Outlets | N/A |
