Manufacturer: Eaton Powerware

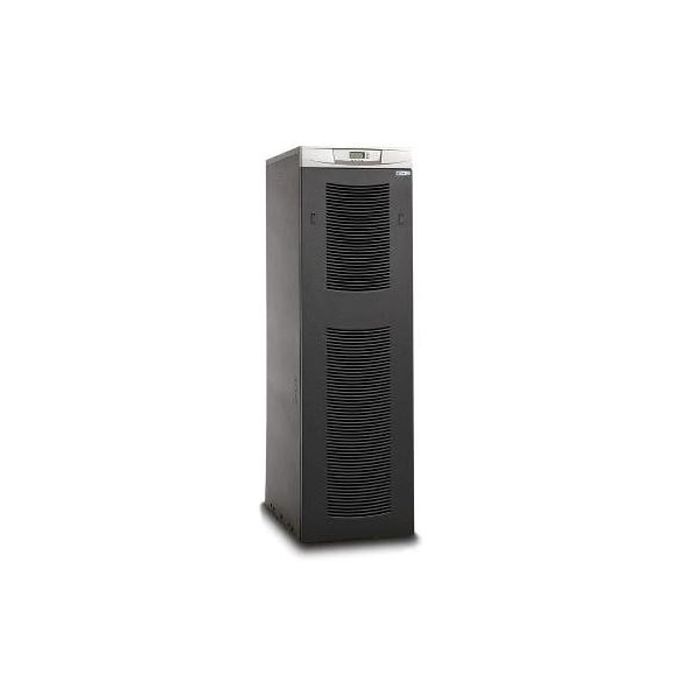

Model: 9355-30KVA Eaton Powerware 30kVA UPS
Condition: Refurbished with New Batteries
Part Number: 9355-30KVA
Warranty: 1 Year Extended Warranty, additional warranty available
The 9355-30KVA is refurbished and comes with new batteries. The 9355-30 comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
Please note, this UPS ships freight on a pallet. Please let us know in advance what delivery arrangements are needed and we will provide a quote. Freight is dock to dock, if a liftgate is needed, or specialized delivery, please contact us in advance.
9355-30KVA Specifications:
|
Power |
|
|
Ratings (kVA/Watts) |
30kVA/27 kW at 0.9 power factor |
|
Topology |
Double conversion |
|
Electrical Input |
|
|
Nominal input voltage |
208V/120V, 220V/127V +10, -15% 480V/277V, 600V (480+600 with transformer) 400V models also available |
|
Operating frequency |
50/60 Hz (45 to 65 Hz) |
|
Input power factor |
0.99 typical |
|
Input current distortion |
<5% THD |
|
Electrical Output |
|
|
Nominal output voltage |
208/120, 220/120 Vac |
|
Output voltage regulation |
±1% static; ±4% dynamic with 100% step load recovery within 1 ms response time |
|
Efficiency |
91%, typical |
|
Heat dissipation (BTU/hr) |
30 kVA models 9,220 @ 208V and 220V input 13,831 @ 480V and 600V (with input isolation transformer) |
|
Battery |
|
|
Battery type |
9 Ah, sealed, lead-acid, maintenance-free |
|
Battery runtime |
11 min |
|
Battery replacement |
Field-replaceable |
|
Charger |
Default is 8A |
|
General |
|
|
Diagnostics |
Full system self-test at startup |
|
UPS bypass |
Automatic on overload or UPS failure |
|
Parallel for redundancy |
Yes, using Powerware Hot Sync technology and capacity |
|
weight |
1160 lbs |
|
Overload |
150% for 5 sec / 125% for 1 min (online), 110% for 10 min |
|
Communications |
|
|
LCD display |
Graphical LCD with blue backlight |
|
LEDs |
(4) LEDs for notice and alarm |
|
Audible alarms |
Yes |
|
Communication ports |
(1) RS-232, (1) relay contact, (1) REPO, (2) environmental input |
|
Communication slot |
(2) X-Slot communication bays |
|
Power management software |
Bundled Software Suite CD |
|
Environmental |
|
|
Operating temperature |
50–104ºF (10–40ºC), 45ºC with 7.5% derating; Optimal battery performance: 77ºF (25ºC) |
|
Storage temperature |
32–77ºF (0–25ºC); Recommended battery storage: 59–77ºF (15–25ºC) |
|
Relative humidity |
0–95%, non-condensing |
|
Audible noise |
<58 dBA at 1 meter depending on load |
|
Altitude |
<3000m |
Additional Info
Additional Info
| Manufacturer | Eaton Powerware |
|---|---|
| Form Factor | Tower |
| Waveform in Battery Mode | Pure Sinewave |
| Input Voltage | 208V AC, 240V AC |
| Output (VA) | No |
| Output Voltage | 120V AC, 208V AC, 240V AC |
| PDU Total Outlets | No |
