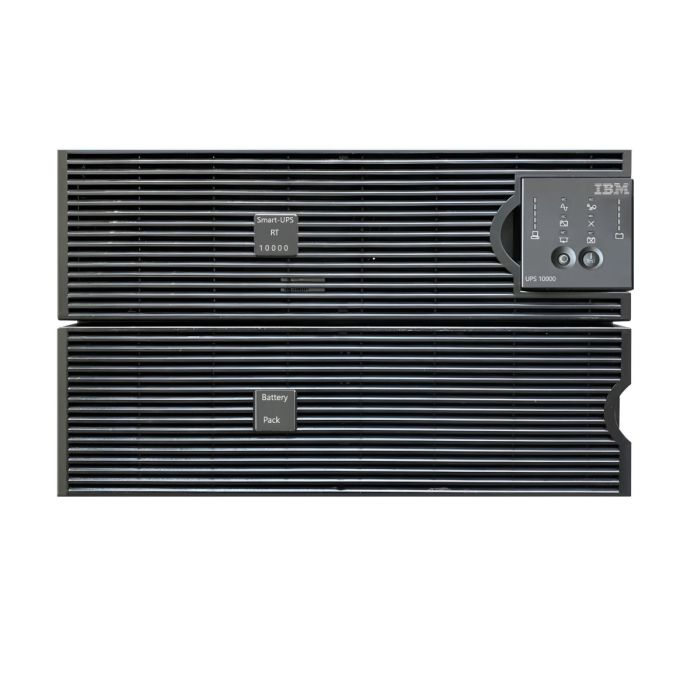

IBM Smart-UPS 10000VA 8kW Double Conversion 200/240V 50A RM 6U IBMR10000RTH6U - Refurbished
IBMR10000RTH6U (IBM UPS 10000XHV) Smart-UPS RT 10000VA 8000W RM 6U
Model: IBMR10000RTH6U
Input: Hard Wire 3-wire (2PH + G)
Output: (2) NEMA L6-30R, (1) Hard Wire 3-wire (2PH + G), (2) NEMA L6-20R
Double Conversion Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $3,449.99
In stock
Manufacturer: IBM |
Model: IBMR10000RTH6U |
Condition: New Batteries, Refurbished UPS |
Part Number: 25R5590 |
Maximum output: 8000W / 10000VA |
Typical backup time at half load: 1.36 minutes (4000 Watts, with internal batteries only) |
Typical backup time at full load: 0.67 minutes (8000 Watts, with internal batteries only) |
Warranty: Â 1 year full replacement warranty |
Â
The IBMR10000RTH6U comes refurbished with new batteries. The IBM Smart-UPS comes with a one year replacement warranty.Â
Additional warranty of up to 3 years is available for your convenience.
This uninterruptible power supply (UPS) system is designed to provide high-density, cost-effective power management while meeting customer demands.Â
Â
Â
IBM Smart-UPS 10000VA 8000W 200V/240V 50A RM 6U 10000XHV - User ManualÂ
Â
Â
Â
IBMR10000RTH6U - 10000XHVÂ - IBM Smart-UPS RT Specifications:
|
Model: |
208V or 240V (configurable) |
|
Other Input Voltage |
220/230/240V or 380/400/415V (3-phase bypass) |
|
Main Output Voltage |
230V (default) |
|
Other Output Voltage |
200, 208, 220, 240V (selectable via terminal mode) |
Â
Â
Main:
|
Main Input Voltage |
208V or 240V (configurable) |
||||
|
Other Input Voltage |
220/230/240V or 380/400/415V (3-phase bypass) |
||||
|
Main Output Voltage |
230V (default) |
||||
|
Other Output Voltage |
200, 208, 220, 240V (selectable via terminal mode) |
||||
|
Rated Power in W |
8000W |
||||
|
Rated Power in VA |
10000VA |
||||
|
Output Connection Type |
|
||||
|
Output Connector Type |
Hard Wire 3-wire (2PH + G) 1 |
||||
|
Number of Rack Unit |
6U |
||||
|
Cable Length |
8 ft (2.44 m) |
||||
|
Battery Type |
Lead-Acid Battery |
||||
|
Product Description |
IBM UPS 10000XHV - UPS - 10000 VA - Ethernet 10/100 - 4 output connector(s) - 6U - for System x3350; x3550 M2; x3630 M3; x3650 M2; x3755; x3850 M2; x3950 M2; x3950 X5 |
Â
Batteries & Runtime:
|
Included Battery Modules |
4 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
2.2 hours |
|
RBC Quantity |
2 |
|
Additional Information |
Configurable for 208 or 240 nominal output voltage |
|
Battery Charge Power (Watts) |
869 W rated |
|
Battery Power in VAH |
1920 VAh runtime (internal) |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC140 |
|
Battery Option |
SURT192RMXLBP3U 1 3840 VAh |
|
Extendable Run Time |
Yes |
Â
Â
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
10.35 inches (263mm, 26.3cm) |
|
Width |
17.01 inches (432mm, 43.2cm) |
|
Depth |
28.98 inches (736mm, 73.6cm) |
|
Net Weight |
244.51 lbs. (110.91kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
No |
|
USB Compatible |
No |
Input:
|
Input Frequency |
50/60 Hz +/- 5 Hz auto-sensing |
|
Number of Input Connectors |
1 Hard Wire 3-wire (2PH + G) |
|
Efficiency at Full Load |
92% |
|
Input Total Harmonic Distortion |
Less than 7% for full load |
Output:
|
Max Configurable Power (Watts) |
8000W |
|
Harmonic Distortion |
Less than 3% |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 sync to mains |
|
Crest Factor |
3 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Efficiency at Full Load |
92 % full load |
|
Maximum configurable power in VA |
10000VA |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Relative Humidity |
0Â - 95% non-condensing |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Relative Humidity |
0Â - 95% non-condensing |
|
Storage Altitude |
0Â - 50000 ft (0.00Â - 15240.00 m) |
|
Acoustic Level |
55 dBA
|
|
Online Thermal Dissipation |
2216 Btu/h
|
|
IP Degree of Protection |
IP20
|
Communications & Management:
|
Interface Port(s) |
DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot |
|
Free Slots |
0 |
|
Pre-Installed SmartSlotâ„¢ Cards |
Network management card 2 with environmental monitoring |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
|
Surge Energy Rating |
1265 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
