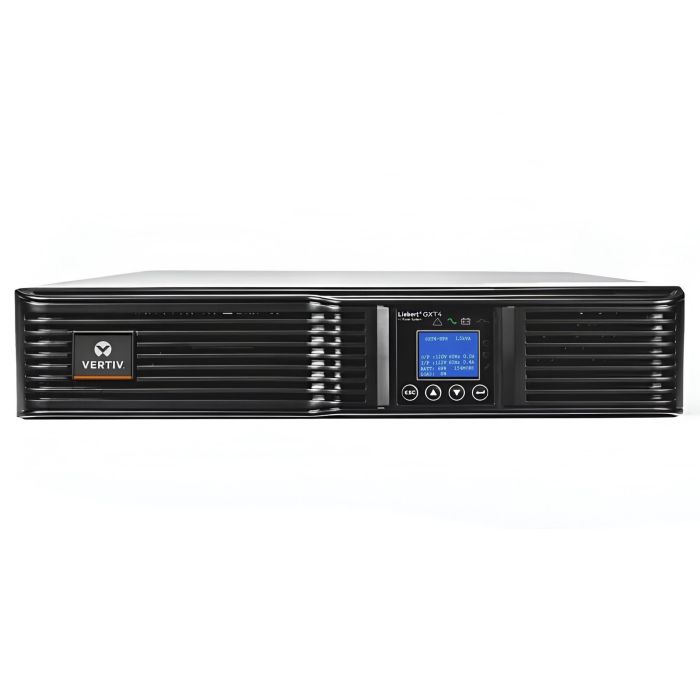

Liebert GXT4 3000VA 2700W Online Double Conversion UPS 240V GXT4-3000RT230 - Refurbished
Liebert GXT4 3000VA 2700W RM 2U 208V/230V/240V 30A
Model: GXT4-3000RT230
Input: C20 (200/208/220/230/240VAC)
Output: (6)x C13, (1)x C19
Online Double Conversion UPS - Sinewave Output
New Batteries, Refurbished UPS
1 Year Warranty Included
CAD $1,149.99
Back Order
Manufacturer: Liebert
Model: Liebert GXT4 3000VA 2700W RM 2U, (200/208/220/230/240VAC) - Online Double Conversion UPS
Condition: New batteries, refurbished UPS
Part Number: GXT4-3000RT230
Maximum output: 2700WÂ /Â 3000VA
Typical backup time at half load:Â 12 minutes (1350 Watts)
Typical backup time at full load:Â 3 minutes (2700 Watts)
Warranty: 1 year full replacement warranty
Includes: (1) GXT4-3000RT230 UPS - No additional accessories are included
Liebert GXT4 3000VA 2700W RM 2U GXT4-3000RT230 Manual
GXT4-3000RT230 - Liebert GXT4 3000VA Specifications:
Output:
|
AC-AC Efficiency |
> 88% AC-AC, minimum |
||
|
Voltage |
200/208/220/230/240VAC(user configurable); ±3% |
||
|
Frequency |
50 Hz or 60Hz |
||
|
Waveform |
Sine wave |
||
|
Output Connections |
|
Input:
|
Rating |
3000VA/2700W |
|
|
Voltage Range (typical) |
230VAC nominal; variable based on output load |
|
|
Frequency |
40Hz ~ 70Hz; Auto Sensing |
|
|
Input Connection Type |
|
Batteries and Runtime:
|
Type |
Valve-regulated, non-spillable, lead acid |
|
Recharge Time |
5 Hours to 90% capacity after full discharge with 100% load till UPS auto-shutdown (Internal Batteries Only) |
Environmental:
|
Operating Temperature |
32° to 104°F (0° to 40°C) |
|
Storage Temperature |
-15ºC to +50ºC (5ºF to 122ºF) |
|
Relative Humidity |
0RH to 95%RH, non-condensing |
|
Operating Elevation |
Up to 10,000 ft. (3000 m) at 77°F (25°C) without derating |
|
Storage Elevation |
50,000 ft. (15000 m) maximum |
|
Audible Noise |
<48 dBA, at 3ft. 1 meter (3.2ft.) front and side |
Physical:
|
Maximum Height |
3.3 inches (85 mm)
|
|
Maximum Width |
16.9 inches (430 mm) |
|
Maximum Depth |
23.7 inches (602 mm) |
|
Net weight |
71.4Â lbs. (32.4 kg) |
|
Rack Height |
2U |
Agency:
|
Safety |
IEC/EN/AS 62040-1:2008, GS mark; (3000VA model: UL 1778 Listed) |
|
RFI/EMI |
IEC/EN/AS 62040-2 2nd Ed. (CategoryC2) = CISPR22 Class A |
|
Surge Immunity |
IEC/EN 62040-2 2nd Ed. (IEC/EN 61000-4-5) |
|
Transportation |
ISTAProcedure 1A |
