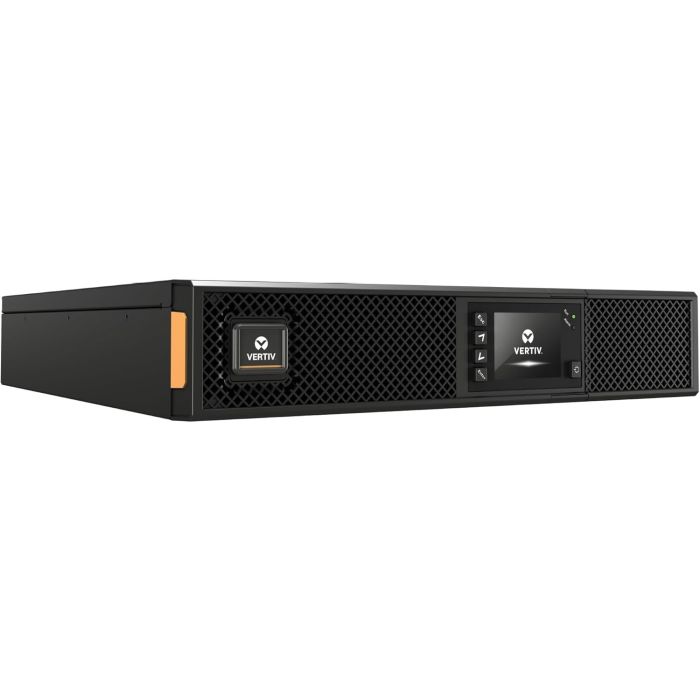

Liebert GXT5 3000VA 3000W RM 2U 208V GXT5-3KL630RT2UXL - Refurbished

Liebert GXT5 3000VA 3000W RM 2U 208V
Model: GXT5-3KL630RT2UXL
Input: NEMA L6-30P (208V - 30A)
Output: (2) NEMA L6-15R, (2) NEMA L6-20R
Online Double Conversion UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included

Additional Warranty

1 Year Included

2 Year + CAD $230.00

3 Year + CAD $402.50

In stock

Quantity

Manufacturer: Liebert
Model: Liebert GXT5 3000VA 3000W RM 2U, 208V, 30A
Condition: New batteries, refurbished UPS
Part Number: GXT5-3KL630RT2UXL
Maximum output: 3000W / 3000VA
Typical backup time at half load: 3 minutes (1500 Watts)
Typical backup time at full load: 9 minutes (3000 Watts)
Warranty: 1 year full replacement warranty
Includes: (1) GXT5-3KL630RT2UXL UPS - No additional accessories are included

Liebert GXT5 3000VA 3000W RM 2U GXT5-3KL630RT2UXL Manual

GXT5-3KL630RT2UXL - Liebert GXT5 3000VA Specifications:

Input:

Rating

3000VA/3000W

Operating Frequency,
Nominal

40 Hz ~ 70 Hz;
Auto Sensing

Voltage Range

208 VAC nominal; variable based on output load

Input Connection Type

NEMA L6-30P

Output:

Output Voltage

208 VAC Nominal
(Adjustable to
200/220/230/240 VAC)

Utility (AC)
Mode Overload

>200% for 250ms;
150-200% for 2 seconds;
125-150% for 10 seconds;
105-125% for 15 seconds

Waveform (on battery)

Sine wave

Output Connections

(2) NEMA L6-15R
(2) NEMA L6-30R

Batteries and Runtime:

Type	Valve-regulated, non-spillable, lead acid

Environmental:

Operating Temperature, °F (°C)	+32 to +104 (0 to 40) (no derating)
Storage Temperature, °F (°C )	-4 to +140 (-2 to 60)
Relative Humidity	0 to 95%, non-condensing
Operating Elevation	Up to 10,000 ft (3,000 m) at 77°F (25°C) without derating
Audible Noise	<48 dBA,at 3.2 ft (1 m) from the front and sides, <48 dBA, at 3.2 ft (1 m) from rear

Physical:

Maximum Height	3.4 inches (85 mm)
Maximum Width	16.9 inches (430 mm)
Maximum Depth	21.3 inches (540 mm)
Net weight	65.1 lbs. (29.6 kg)
Rack Height	2U

Agency:

Surge Immunity	IEEE/ANSI C62.41 Category A & B
Safety	UL1778, c-UL listed CSA 22.2 No 107.3
Transportation	ISTA Procedure 1A
Emissions	FCC Part 15 (Class A)

Liebert GXT5 3000VA 3000W RM 2U 208V GXT5-3KL630RT2UXL - Refurbished
