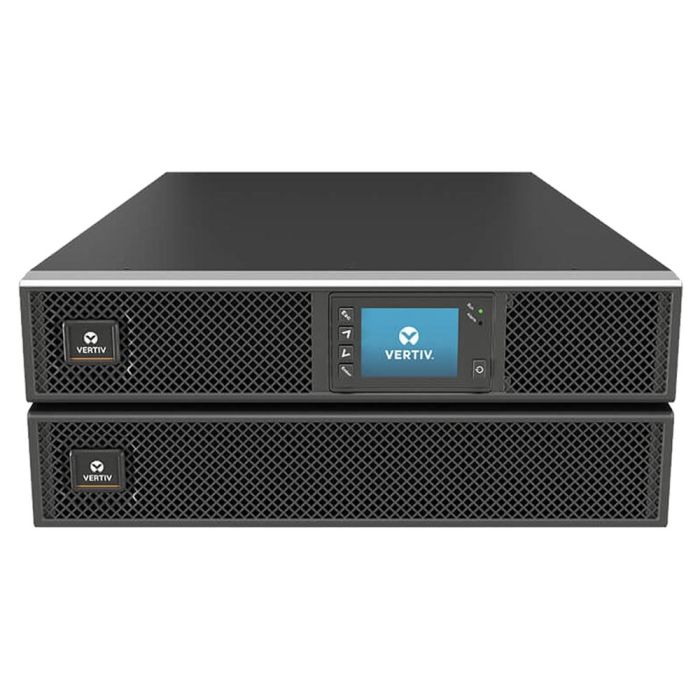

Liebert GXT5 4900VA 4600W RM 5U 208V GXT5-6KL630RT5UXLN - Refurbished
Liebert GXT5 4900VA 4600W RM 5U 208V
Model: GXT5-6KL630RT5UXLN
Input: NEMA L6-30P (208V - 30A)
Output: (2) NEMA L6-20R, (2) NEMA L6-30R
Online Double Conversion UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $3,449.99
In stock
Manufacturer: Liebert
Model: Liebert GXT5 4900VA 4600W RM 5U, 208V, L6-30P 30A Input,
Condition: New batteries, refurbished UPS
Part Number: GXT5-6KL630RT5UXLN
Maximum output: 4600W / 4900VA
Typical backup time at half load: 9.5 minutes (2300 Watts)
Typical backup time at full load: 3 minutes (4600 Watts)
Warranty: 1 year full replacement warranty
Includes: (1) GXT5-6KL630RT5UXLN UPS - No additional accessories are included
Liebert GXT5 4900VA 4600W RM 5U GXT5-6KL630RT5UXLN Manual
GXT5-6KL630RT5UXLN - Liebert GXT5 4900VA Specifications:
Input:
|
Rating |
4900VA/4600W |
||
|
Operating Frequency, |
50 or 60 Hz (factory-default is 60 Hz) |
||
|
Voltage Range |
175 - 280 VAC |
||
|
Input Connection Type |
|
Output:
|
Output Connection Type |
|
||||
|
Output Voltage |
208 VAC Nominal |
||||
|
Utility (AC) |
105% to 125% for 5 minutes 125% to 150% for 60 seconds >150% (impact load) minimum 200 ms |
||||
|
Waveform (on battery) |
Sine wave |
Batteries and Runtime:
|
Type |
Valve-regulated, non-spillable, lead acid |
Environmental:
|
Operating Temperature, |
+32 to +104 (0 to 40) |
|
Storage Temperature, |
+5 to +104 (-15 to 40) |
|
Relative Humidity |
0% to 95%, non-condensing |
|
Operating Elevation |
Up to 10,000 ft (3,000 m) at 77°F (25°C) without derating |
|
Audible Noise |
<50 dBA,at 3.2 ft (1 m) |
Physical:
|
Maximum Height |
8.5 inches (217 mm)
|
|
Maximum Width |
16.9 inches (430 mm) |
|
Maximum Depth |
23.6 inches (600 mm) |
|
Net weight |
149.1 lbs. (68 kg) |
|
Rack Height |
5U |
Agency:
|
Surge Immunity |
IEEE/ANSI C62.41 |
|
Safety |
UL1778, c-UL listed |
|
Transportation |
ISTA Procedure 1E |
|
Emissions |
FCC Part 15 (Class A) |
