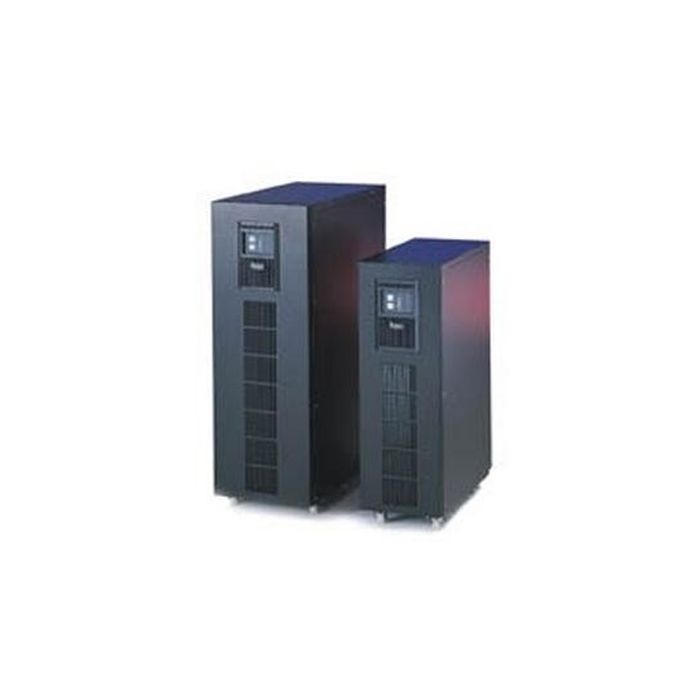

Liebert 6000VA Overload Type Tower GXT6000T-240X
GXT6000T-240X Refurbished Liebert 6000VA Overload Type Tower
6000VA / 4200W, 200-240V
Refurbished with New Batteries
CAD $1,494.99
Out of stock
Manufacturer: Liebert
Model: GXT6000T-240X Liebert 6000VA Overload Type Tower
Condition: Refurbished with New Batteries
Part Number: GXT6000T-240X
Warranty: 1 Year Full Replacement Warranty, additional warranty available
The GXT6000T-240X comes refurbished with new batteries and a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
GXT6000T-240X Specifications:
| General | |
| Model Number | GXT6000T-240X |
| Model Rating VA/W (max) | 6000 / 4200 |
Dimensions: mm (in) |
|
| Unit | 260 x 555 x 803 |
| W x D x H | (10.3 x 21.9 x 31.6) |
| Shipping | 400 x 850 x 1065 |
| W x D x H | (15.8 x 33.5 x 41.9) |
Weight: kg (lbs) |
|
| Unit | 139 (306) |
| Shipping | 170 (374) |
Input AC Parameters |
|
| Voltage Range (typical) | 240 VAC nominal; variable based upon output load |
| 100% - 90% Loading | 186 VAC to 280 VAC; ±5.0 VAC |
| 90% - 70% Loading | 159 VAC to 280 VAC; ±5.0 VAC |
| 70% - 30% Loading | 139 VAC to 280 VAC; ±5.0 VAC |
| 30% - 0% Loading | 119 VAC to 280 VAC; ±5.0 VAC |
| Frequency | 46.6 – 52.4 Hz or 57.1 - 62.9 Hz; auto sensing |
| Input connection | Hardwire terminal block |
Output AC Parameters |
|
| Output connection | Hardwire terminal block |
| Voltage | 208/104, 220/110, 230/115,240/120 VAC (switch selectable); ±7% |
| Frequency | 50 Hz or 60 Hz; auto sensing |
| Waveform | Sinewave |
| Main Mode Overload | 200% for 8 cycles; 130% for 10 seconds, then transfer to bypass |
Battery Parameters |
|
| Type | Valve-regulated, nonspillable, lead acid |
| Qty. x Voltage x Rating | 20 x 12V x 7.0 Ah |
| Back-up Time | 7 min. minimum |
Environmental |
|
| Operating Temperature | 0° C to +40° C (+32° F to +104° F) |
| Storage Temperature | -15° C to +50° C (+5° F to +122 °F) |
| Relative Humidity | 0% to 95%, non-condensing |
| Operating Elevation | Up to 3000 m (10,000 ft.) at 40° C without derating |
| Storage Elevation | 15,000 m (50,000 ft.) maximum |
| Audible Noise | <55 dB ”A” at 1 meter |
Agency |
|
| Safety | UL 1778; Listed |
| EMI/EMC | FCC Part 15 Class A |
| Immunity | IEEE C62.41:199 |
