Description
Details
Manufacturer: MGE

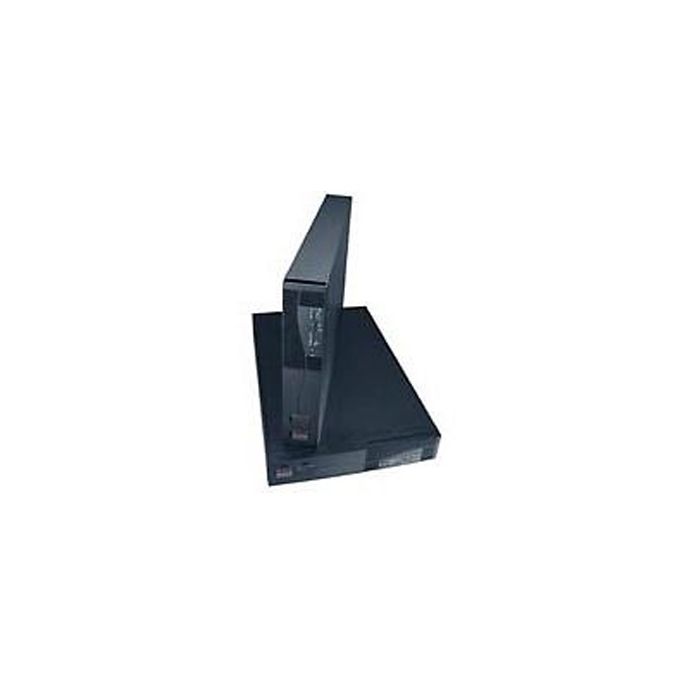

Model: MGE UPS PULSAR EX700RT
Condition: Refurbished with New Batteries
Part Number: EX700RT
Warranty: 1 Year Full Replacement Warranty, additional warranty available
The EX700RT comes refurbished with new batteries. EX700RT UPS comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
EX700RTSpecifications:
Output:
|
Output power capacity |
700VA /490 W |
|
Voltage |
120V adjustable to 100V/120V/ 127V |
|
Frequency |
50/60 Hz ±0.5% (7) |
|
Overload capacity |
110% – 130% : 12s then on by-pass, >130% : 1.5s then on by-pass |
| Output Connection | 8 Nema 5-15R |
Input:
|
Nominal input voltage |
60V to 142Vac at 33.3% load, 70V to 142Vac at 66.7% load, 80V to 142Vac at 100% load |
||
|
Input frequency |
50/60 Hz , auto-select, input frequency 40-70 Hz, frequency converter |
||
| Input Connection |
|
||
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery |
|
Battery |
2x12V – 7.2Ah |
Environment:
|
Operating temperature range |
0°C to 40°C |
|
Relative humidity |
20% to 90% (without condensation) |
|
Leakage current |
< 1.1mA |
|
Storage temperature range |
-25°C to 40°C |
|
Altitude |
1000 m |
Physical Dimentions:
|
Dimentions (HxWxD) |
3.4 x 17.25 x 18.75 |
|
Weights in lbs. |
42 lbs. |
