Description
Details
Manufacturer: MGE

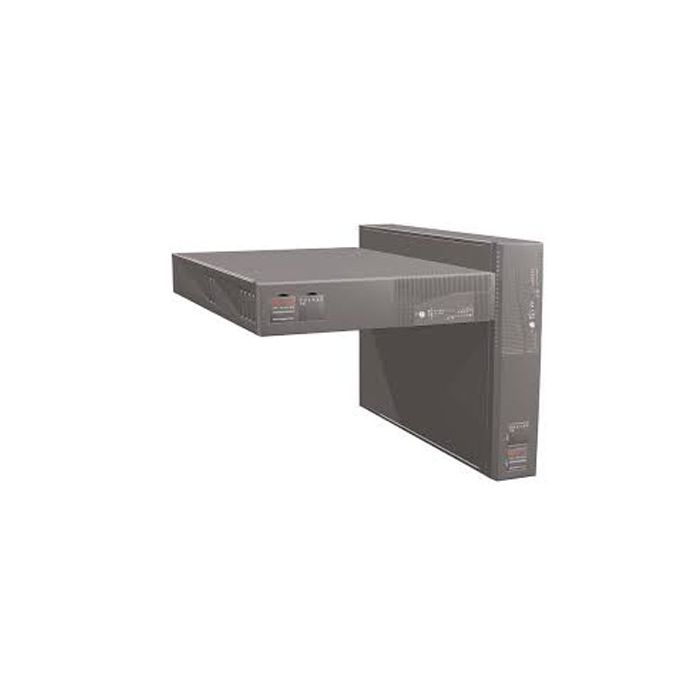

Model: MGE UPS PULSAR LV3200RT
Condition: Refurbished with New Batteries
Part Number: LV3200RT
Warranty: 1 Year Full Replacement Warranty, additional warranty available
The LV3200RT comes refurbished with new batteries. LV3200RT UPS comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
LV3200RT Specifications:
Output:
|
Output power capacity |
3200 VA / 2080 W |
|
Voltage |
Single phase, 120 V ± 3% |
|
Frequency |
50/60 Hz ±0.5% (7) |
| Harmonic distortion | < 4% on linear load, < 6% on non linear load |
|
Overload capacity |
110% continuous, 130% 12s, > 130% 1.5s |
| Output Connection | 1 x power NEMA L5-30, 4x power NEMA 5-15/20 |
Input:
|
Nominal input voltage |
Single phase, 60 V / 70 V / 80 V to 142 V |
||
|
Input frequency |
50/60 Hz , auto-select, input frequency 40-70 Hz, frequency converter |
||
| Input Connection |
|
||
| Power factor | ≥ 0.95 | ||
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery |
|
Battery |
6 x 12 V - 9 Ah |
Environment:
|
Operating temperature range |
0°C to 40°C |
|
Relative humidity |
20% to 90% (without condensation) |
|
Leakage current |
< 1.1mA |
|
Storage temperature range |
-25°C to 40°C |
|
Altitude |
1000 m |
Physical Dimentions:
|
Dimentions (HxWxD) |
19 in x 25.8 in x 3.5 in |
|
Weights in lbs. |
82.7 lbs |
Additional Info
Additional Info
| Manufacturer | N/A |
|---|---|
| Form Factor | N/A |
| Waveform in Battery Mode | N/A |
| Input Voltage | N/A |
| Output (VA) | No |
| Output Voltage | N/A |
| PDU Total Outlets | N/A |
