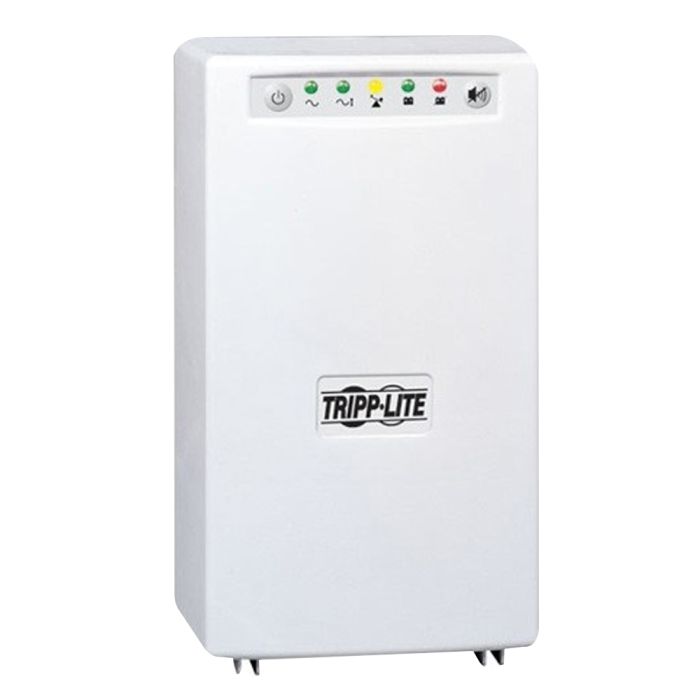

Tripp Lite BC Pro UPS 1400VA 940W Tower 120V BCPRO1400 - Refurbished
Tripp Lite BC Pro 1400VA 940W Tower 120V BCPRO1400
Model: BCPRO1400
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R
Standby UPS - PWM Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $229.99
Out of stock
Manufacturer: Tripp Lite
Model: Tripp Lite BC Pro UPS 1400VA 120V, New Batteries, Refurbished UPS
Condition: New batteries, refurbished UPS
Part Number: BCPRO1400
Maximum output: 940W / 1400VA
Typical backup time at half load: 24 minutes (470 Watts)
Typical backup time at full load: 8 minutes (940 Watts)
Warranty: 1 year full replacement warranty
Tripp Lite BC Pro Standby UPS 1400VA 940W Tower BCPRO1400 Manual
BCPRO1400 - Tripp Lite BC Pro Standby UPS 1400VA Specifications:
Output:
|
Output Volt Amp Capacity (VA) |
1400 |
||
|
Output kVA Capacity (kVA) |
1.4 |
||
|
Output Watt Capacity (Watts) |
940 |
||
|
Nominal Voltage Details |
115v nominal output in battery mode |
||
|
Frequency Compatibility |
60 Hz |
||
|
Output Voltage Regulation (Battery Mode) |
+/- 5% |
||
|
Hot-Swap PDU options |
PDUB15 (2U / 8 5-15R outlets) |
||
|
Output AC Waveform (AC Mode) |
Sine wave |
||
|
Output AC Waveform (Battery Mode) |
PWM sine wave |
||
|
Nominal Output Voltage(s) Supported |
110V; 115V; 120V |
||
|
Output Receptacles |
|
||
|
Individually Controllable Load Banks |
No |
Input:
|
Rated input current (Maximum Load) |
9.2A |
||
|
Nominal Input Voltage(s) Supported |
120V AC |
||
|
UPS Input Connection Type |
|
||
|
Input Circuit Breakers |
15A |
||
|
UPS Input Cord Length (ft.) |
6 |
||
|
UPS Input Cord Length (m) |
1.8 |
||
|
Recommended Electrical Service |
15A 120V |
||
|
Input Phase |
Single-Phase |
Battery:
|
Full Load Runtime (min.) |
8 min. (940w) |
|
Half Load Runtime (min.) |
24 min. (470w) |
|
DC System Voltage (VDC) |
36 |
|
Battery Recharge Rate (Included Batteries) |
Less than 4 hours from 10% to 90% |
|
Internal UPS Replacement Battery Cartridge |
RBC53 |
|
Battery Access |
Battery access door |
|
Battery Replacement Description |
Hot-swappable, user replaceable batteries |
|
Expandable Runtime |
No |
User Interface, Alerts & Controls:
|
Switches |
2 Switches control off/on power status and alarm-cancel/self-test operation |
|
Alarm Cancel Operation |
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate lowbattery status |
|
Audible Alarm |
Audible alarm indicates power-failure and low-battery conditions |
|
LED Indicators |
5 LEDs indicate line power, battery power, battery low/replace and overload status |
Surge / Noise Suppression:
|
UPS AC Suppression Joule Rating |
510 |
|
UPS AC Suppression Response Time |
Instantaneous |
|
EMI / RFI AC Noise Suppression |
Yes |
|
AC Suppression Joule Rating |
510 |
|
AC Suppression Response Time |
Instantaneous |
Physical:
|
Installation Form Factors Supported with Included Accessories |
Tower
|
|
Installation Form Factors Supported with Optional Accessories |
Wallmount (UPSWM - tower mounting kit) |
|
Primary Form Factor |
Tower |
|
Primary UPS Depth (mm) |
229 |
|
Primary UPS Height (mm) |
325 |
|
Primary UPS Width (mm) |
191 |
|
Shipping Dimensions (hwd / cm) |
42.93 x 33.53 x 28.19 |
|
Shipping Dimensions (hwd / in.) |
16.90 x 13.20 x 11.10 |
|
Shipping Weight (kg) |
17.87 |
|
Shipping Weight (lbs.) |
39.40 |
|
UPS Housing Material |
Polycarbonate |
|
UPS Power Module Dimensions (hwd, cm) |
32.51 x 19.05 x 22.86 |
|
UPS Power Module Dimensions (hwd, in.) |
12.8 x 7.5 x 9 |
|
UPS Power Module Weight (kg) |
16.51 |
|
UPS Power Module Weight (lbs.) |
36.4 |
Communications:
|
Communications Interface |
USB |
|
PowerAlert Software |
For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
|
Communications Cable |
USB interface cable included |
|
WatchDog Compatibility |
Supports Watchdog application, OS and hard-reboot restart options for remote applications |
