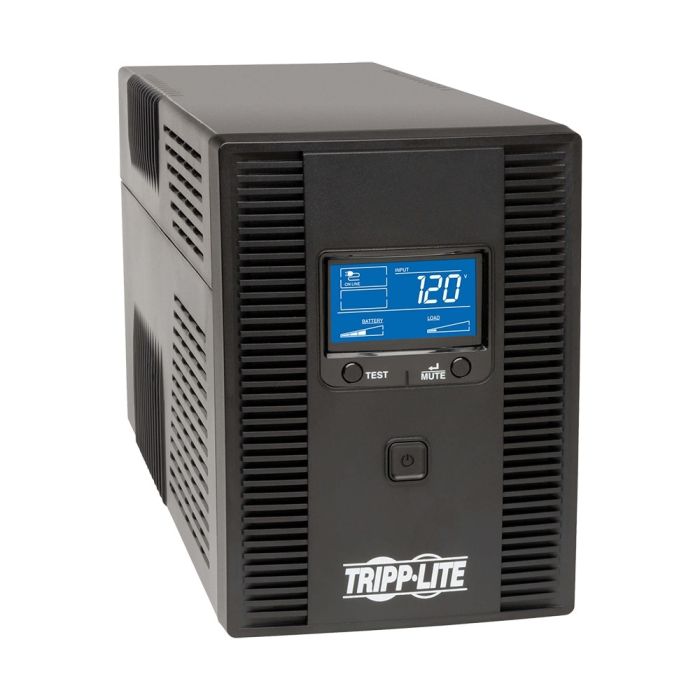

Tripp Lite OmniSmart LCD 1500VA 810W 120V OMNI1500LCDT - Refurbished
Tripp Lite OmniSmart LCD 1500VA 810W
Model: OMNI1500LCDT
Input: NEMA 5-15P (120V - 15A)
Output: (10) NEMA 5-15R
Line-Interactive UPS - Sine wave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $229.99
Back Order
Manufacturer: Tripp Lite
Model: Tripp Lite OmniSmart UPS LCD 1500VA 810W, Tower, 120V, 15A
Condition: New batteries, refurbished UPS
Part Number: OMNI1500LCDT
Maximum output: 810W / 1500VA
Typical backup time at half load: 7.5 minutes (405 Watts)
Typical backup time at full load: 1.8 minutes (810 Watts)
Warranty: 1 year full replacement warranty
Tripp Lite OmniSmart LCD 1500VA 810W Tower 120V OMNI1500LCDT Manual
OMNI1500LCDT - Tripp Lite OmniSmart LCD 1500VA Specifications:
Input:
|
Input Phase |
Single-Phase |
||
|
Rated input current (Maximum Load) |
12A |
||
|
Nominal Input Voltage(s) Supported |
120V AC |
||
|
UPS Input Connection Type |
|
||
|
Input Circuit Breakers |
15A |
||
|
UPS Input Cord Length (ft.) |
6 |
||
|
UPS Input Cord Length (m) |
1.8 |
||
|
Recommended Electrical Service |
15A 120V |
Output:
|
Output Capacity (VA) |
1500 |
||
|
Output Capacity (kVA) |
1.5 |
||
|
Output Capacity (Watts) |
810 |
||
|
Output Capacity (kW) |
0.81 |
||
|
Power Factor |
0.8 |
||
|
Nominal Voltage Details |
120v nominal output in battery mode |
||
|
Frequency Compatibility |
50 / 60 Hz |
||
|
Frequency Compatibility Details |
Automatic frequency selection |
||
|
Output Voltage Regulation (Line Mode) |
120V (+9% / -12%) |
||
|
Output Voltage Regulation ((Economy Line Mode) |
120V (±10%) |
||
|
Output Voltage Regulation (Battery Mode) |
+/- 5% |
||
|
UPS Output Receptacles (Surge Suppression Only) |
5 UPS outlets, 5 surge-only outlets |
||
|
Hot-Swap PDU options |
PDUB15 (2U / 8 5-15R outlets) |
||
|
Output AC Waveform (AC Mode) |
Sine wave |
||
|
Output AC Waveform (Battery Mode) |
PWM sine wave |
||
|
Nominal Output Voltage(s) Supported |
110V; 115V; 120V |
||
|
Output Receptacles |
|
||
|
Individually Controllable Load Banks |
No |
Battery:
|
Battery Type |
Valve Regulated Lead Acid (VRLA) |
|
Runtime Full Load (min.) |
1.8 min. (810W) |
|
Runtime Half Load (min.) |
7.5 min. (405W) |
|
Expandable Runtime |
No |
|
DC System Voltage (VDC) |
24 |
|
Battery Recharge Rate (Included Batteries) |
Less than 8 hours from 10% to 90% |
|
Internal UPS Replacement Battery Cartridge |
RBC51 (requires 2) |
Voltage Regulation:
|
Voltage Regulation Description |
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 92 to 150 |
|
Overvoltage Correction |
Input voltages between 129 and 147 are reduced by 15% |
|
Undervoltage Correction |
Input voltages between 92 and 108 are boosted by 18% |
User Interface, Alerts & Controls:
|
Front Panel LCD Display |
LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut status, Output load in watts, Output load percentage, Battery voltage and Estimated runtime in minutes |
|
Switches |
Power switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm; Test button initiates self test |
|
Alarm Cancel Operation |
Power-fail alarm can be silenced using alarm-cancel switch |
|
Audible Alarm |
Audible alarm indicates power-failure and low-battery conditions |
Surge / Noise Suppression:
|
UPS AC Suppression Joule Rating |
650 |
|
UPS AC Suppression Response Time |
Instantaneous |
|
UPS Dataline Suppression |
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet; Coax jacks (1 set) |
|
EMI / RFI AC Noise Suppression |
Yes |
Physical:
|
Cooling Method |
Fan
|
|
Primary Form Factor |
Tower
|
|
Primary UPS Depth (mm) |
396
|
|
Primary UPS Height (mm) |
203 |
|
Primary UPS Width (mm) |
146 |
|
Shipping Dimensions (hwd / in.) |
11.20 x 9.10 x 19.40 |
|
Shipping Dimensions (hwd / cm) |
28.45 x 23.11 x 49.28 |
|
Shipping Weight (lbs.) |
25.10 |
|
Shipping Weight (kg) |
11.39 |
|
UPS Power Module Dimensions (hwd, cm) |
20.32 x 14.60 x 39.62 |
|
UPS Power Module Dimensions (hwd, in.) |
8 x 5.75 x 15.6 |
|
UPS Power Module Weight (kg) |
11.52 |
|
UPS Power Module Weight (lbs.) |
25.4 |
|
Unit Dimensions (hwd / in.) |
8.000 x 5.750 x 15.600 |
|
Unit Weight (lbs.) |
22.700 |
|
Unit Weight (kg) |
10.30 |
Environmental:
|
Operating Temperature Range |
32° to 104°F (0° to 40°C)
|
|
Storage Temperature Range |
5° to 122°F (-15° to 50°C) |
|
Relative Humidity |
5 to 95%, non-condensing |
|
AC Mode BTU / Hr. (Full Load) |
98 |
|
Battery Mode BTU / Hr. (Full Load) |
826 |
|
AC Mode Efficiency Rating (100% Load) |
95% |
Communications:
|
Network Monitoring Port Description |
Supports detailed monitoring of UPS and site power conditions |
|
PowerAlert Software |
For local monitoring via the UPS’s built-in USB port, download PowerAlert Local software at |
|
Communications Cable |
USB cabling included |
|
WatchDog Compatibility |
Supports Watchdog application, OS and hard-reboot restart options for remote applications |
|
Network UPS Tools (NUT) Compatibility |
NUT compatible. See a full list of NUT compatible Tripp Lite UPS systems at https://networkupstools.org/stablehcl.html?manufacturer=Tripp%20Lite |
|
Network Management Card Description |
Network management not supported |
|
Communications Interface |
USB (HID enabled) |
