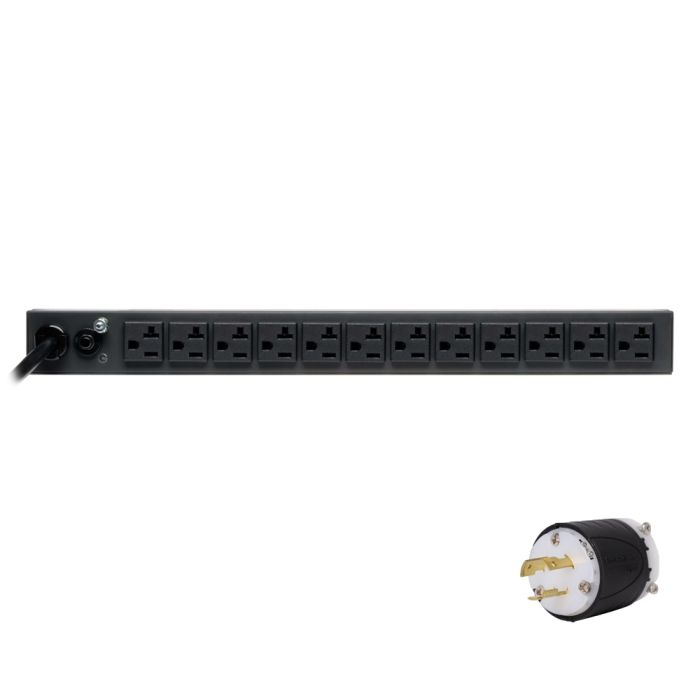

Tripp Lite PDU1220T 2400VA Basic Rack PDU 120V, L5-20P 20A Input (13) 5-15/20R Output, 15ft. Cord, 1U - Refurbished
Tripp Lite 2.4kVA Single-Phase Basic PDU,
120V Outlets (13) 5-15/20R, L6-30P, 10ft Cord, 1U
Model: PDU1220T
Input Connections: NEMA L5-20P 120V 20A
Output Connections: (13) NEMA 5-15/20R
Refurbished PDU
1 Year Warranty Included
CAD $126.49
Back Order
Manufacturer: Tripp Lite
Model: PDU1220T
Description: 2.4kW Basic PDU, 120V, Outlets (13) NEMA 5-15/20R, L5-20P, 15ft Cord, 1U
Input: NEMA L5-20P - 120V - 30A
Output: (13) NEMA 5-15/20R
Condition: New
Warranty: 1 Year Full Replacement Warranty, additional warranty available
APC PDU1220T Specifications:
Input
|
Input Phase |
Single-Phase |
|
PDU Input Voltage |
120 |
|
Recommended Electrical Service |
Single-phase 20A 120V service |
|
Maximum Input Amps |
20 |
|
PDU Plug Type |
NEMA L5-20P |
|
Input Cord Length (ft.) |
15 |
Output
|
Output Capacity Details |
2.4kW (120V) / 20A total capacity; 16A max per 5-15/20R outlet |
|
Frequency Compatibility |
50/60 Hz |
|
Output Receptacles |
(13) 5-15/20R |
|
Output Nominal Voltage |
120V |
|
Overload Protection |
20A circuit breaker |
Environmental
|
Operating Temperature Range |
32° to 104°F (0° to 40°C) |
|
Storage Temperature Range |
-22° to 122°F (-30° to 50°C) |
|
Relative Humidity |
5-95% non-condensing |
|
Operating Elevation (ft.) |
-0-10,000 |
|
Operating Elevation (m) |
0-3000 |
Physical
|
Material of Construction |
Metal |
|
Form Factors Supported |
1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported |
|
Minimum Required Rack Depth (inches) |
9.5 |
|
Outlets Measurement (Center to Center) |
30.2mm |
|
PDU Form Factor |
Horizontal (1U) |
|
Shipping Dimensions (hwd / in.) |
9.30 x 2.25 x 20.40 |
|
Shipping Weight (lbs.) |
5.70 |
|
Unit Dimensions (hwd / in.) |
1.750 x 20.000 x 4.500 |
|
Unit Weight (lbs.) |
5.2 |
