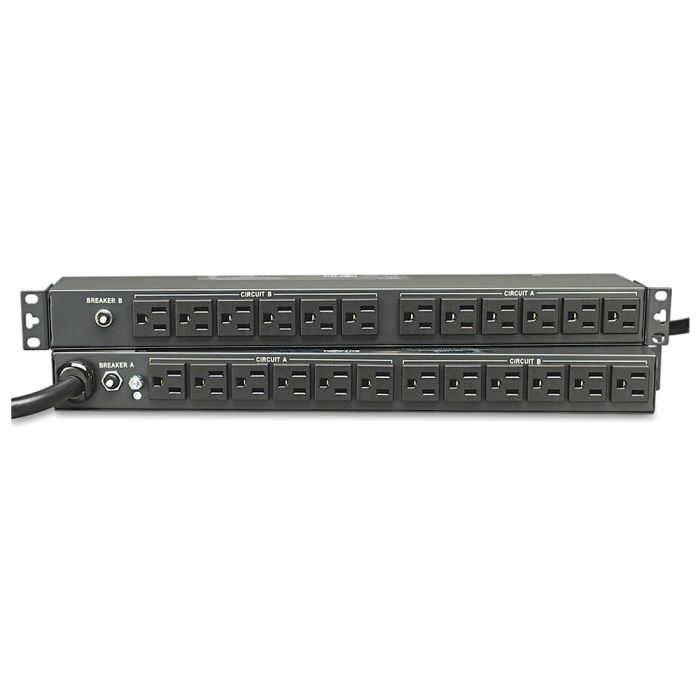

Tripp Lite PDU2430 2.9kW Basic PDU, 1U, 120V, (24) 5-15R Output, L5-30P, 30A Input - Refurbished
Tripp Lite 2.9kW Basic PDU, 120V, (24) 5-15R, L5-30P, 1U
Model: PDU2430
Input: NEMA L5-30P (120V - 30A)
Output: (24) NEMA 5- 15R
Refurbished PDU
1 Year Warranty Included
CAD $114.99
Back Order
Manufacturer: Tripp Lite
Model: PDU2430
Description: Tripp Lite Basic PDU, 1U, 30A, 120V
Input: NEMA L5-30P (120V - 30A)
Output: (24) NEMA 5-15R
Condition: Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty available
Tripp Lite PDU2430 Specifications:
Input
|
Input Phase |
Single-Phase |
||
|
PDU Input Voltage |
120 |
||
|
Recommended Electrical Service |
Single-phase 30A 120V service |
||
|
Maximum Input Amps |
24 |
||
|
Maximum Input Amps Details |
Agency de-rated to 24A continuous |
||
|
PDU Plug Type |
|
||
|
Input Cord Length (ft.) |
15 |
||
|
Input Cord Length (m) |
4.57 |
Output
|
Output Capacity Details |
2.88kW (120V) / 24A total capacity; 12A max per breakered load bank; 12A max per outlet |
|
|
Frequency Compatibility |
50 / 60 Hz |
|
|
Output Receptacles |
|
|
|
Output Nominal Voltage |
120V |
|
|
Overload Protection |
Two 15A breakers protect 12 outlets each |
User Interface, Alerts & Controls
|
Switches |
No power switch |
Surge / Noise Suppression
|
Automatic Shut-Off |
No |
Physical
|
Material of Construction |
Metal |
|
Form Factors Supported |
1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported |
|
Minimum Required Rack Depth (cm) |
19.05 |
|
Minimum Required Rack Depth (inches) |
7.5 |
|
Outlets Measurement (Center to Center) |
Distance between Front outlets = 30.2mm; Distance between Rear outlets = 30.2mm |
|
PDU Form Factor |
Horizontal (1U) |
|
Shipping Dimensions (hwd / in.) |
3.00 x 10.90 x 20.30 |
|
Shipping Dimensions (hwd / cm) |
7.62 x 27.69 x 51.56 |
|
Shipping Weight (lbs.) |
7.50 |
|
Shipping Weight (kg) |
3.40 |
|
Unit Dimensions (hwd / in.) |
1.750 x 17.250 x 4.500 |
|
Unit Dimensions (hwd / cm) |
4.4 x 44.5 x 11.1 |
|
Unit Weight (lbs.) |
7.4 |
|
Unit Weight (kg) |
3.36 |
Environmental
|
Operating Temperature Range |
32° to 104°F (0° to 40°C) |
|
Storage Temperature Range |
-22° to 122°F (-30° to 50°C) |
|
Relative Humidity |
5% to 95% non-condensing |
|
Operating Elevation (ft.) |
0-10,000 |
|
Operating Elevation (m) |
0-3000 |
Features & Specifications
|
Grounding |
Grounding lug |
Standards & Compliance
|
Product Certifications |
CAN/CSA-C22.2 No. 107.1 (Canada); UL 1778 |
|
Product Compliance |
RoHS |
