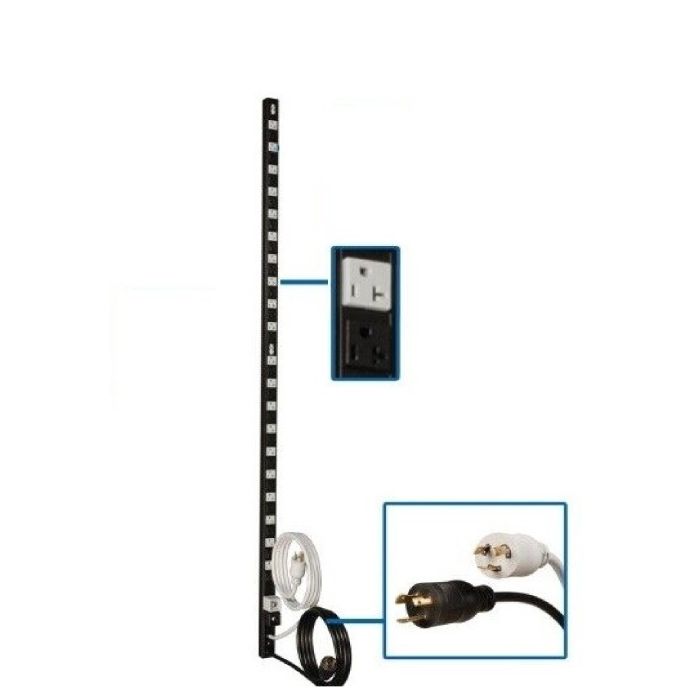

Tripp Lite PDU40TDUAL 3.8kW Basic PDU, 120V Outlets (40) 5-15/20R, Input L5-20P/ 5- 20P, 10ft Cord, Zero U - Refurbished
Tripp Lite 3.8kW Single-Phase Basic PDU, 120V Outlets (40) 5-15/20R, L5-20P/ 5- 20P, 10ft Cord, 0U
Model: PDU40TDUAL
Input Connections: NEMA L6-30P 208V/240V
Output Connections: (32) IEC 320 C13 (6) IEC 320 C19
Refurbished PDU
1 Year Warranty Included
CAD $149.49
Back Order
Manufacturer: Tripp Lite
Model: PDU40TDUAL
Description: 3.8kW Single-Phase Basic PDU, 120V Outlets (40) 5-15/20R, NEMA 5-20P, NEMA L5-20P, 10ft Cord, Zero U
Input: NEMA 5-20P, NEMA L5-20P (120V - 20A)
Output: (40) 5-15/20R
Condition: New
Warranty: 1 Year Full Replacement Warranty, additional warranty available
APC PDU40TDUAL Specifications:
Input
|
Nominal Input Voltage |
120V |
|
Recommended Electrical Service |
Two single-phase 20A 120V circuits |
|
Maximum Input Amps |
16 |
|
Maximum Input Amps Details |
20A maximum per circuit (Agency de-rated to 16A per circuit continuous) |
|
PDU Plug Type |
NEMA 5-20P; NEMA L5-20P |
|
Input Phase |
Single-Phase |
|
Input Cord Details |
Set of two input power cords; Grey-color input cord powers grey-color outlets; Black-color input cord powers blackcolor outlets |
|
Input Cord Length (ft.) |
10 |
|
Input Cord Length (m) |
3.05 |
Output
|
Output Capacity Details |
3.8kW total - 1.9kW per circuit (120V); 32A maximum total (16A maximum per circuit); 16A max per 5-15/20R outlet |
|
Frequency Compatibility |
50 / 60 Hz |
|
Output Receptacle Details |
20 grey-color outlets are powered via the grey-color input cable; 20 black-color outlets are powered via the blackcolor input cable |
|
Output Receptacles |
(40) 5-15/20R |
|
Output Nominal Voltage |
120V |
|
Overload Protection |
2 x 20A circuit breakers; Grey-color circuit breaker protects grey-color outlets; Black-color circuit breaker protects black-color outlets |
Environmental
|
Operating Temperature Range |
0C ~ 40C (32F ~ 104F) |
|
Storage Temperature Range |
-30°C to +50°C (-22°F to +122°F) |
|
Relative Humidity |
5 to 95% non-condensing |
Physical
|
Form Factors Supported |
Zero U vertical rackmount, wallmount, raceway, workbench and more |
|
Material of Construction |
Aluminum |
|
PDU Form Factor |
Vertical (0U) |
|
Shipping Dimensions (hwd / cm) |
6.10 x 12.19 x 184.00 |
|
Shipping Dimensions (hwd / in.) |
2.40 x 4.80 x 72.44 |
|
Shipping Weight (kg) |
4.22 |
|
Shipping Weight (lbs.) |
9.31 |
|
Unit Dimensions (hwd / cm) |
178.41 x 3.81 x 8.48 |
|
Unit Dimensions (hwd / in.) |
70.24 x 1.5 x 3.34 |
|
Unit Weight (kg) |
3.70 |
|
Unit Weight (lbs.) |
8.16 |
