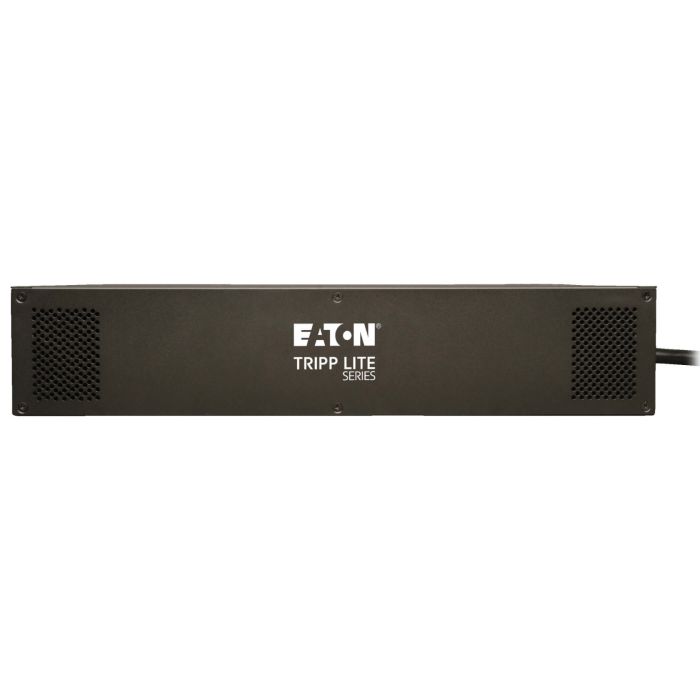

Tripp Lite PDUMH30HV 5500W Single-Phase Local Metered PDU 230V Output: (16) C13 & (2) C19 – Refurbished
Tripp Lite 5500W Single-Phase Local Metered PDU, 208-230V, 2U
Model: PDUMH30HV
Input: (1) NEMA L6-30P (208-230V – 30A)
Output: (16) C13 & (2) C19
Refurbished PDU
1 Year Warranty Included
CAD $402.49
In stock
Manufacturer: Tripp Lite
Model: PDUMH30HV
Description: Tripp Lite 5500W Single-Phase Local Metered PDU 230V Output: (16) C13 & (2) C19
Input: (1) L6-30P (208-230V – 30A)
Output: (16) C13 & (2) C19
Condition: Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty available
Tripp Lite 5500W Single-Phase Local Metered PDU 230V – User Manual
Tripp Lite PDUMH30HV Specifications :
General:
|
|
|
|
Manufacturer |
Tripp Lite |
|
Model |
PDUMH30HV |
|
Description |
Tripp Lite 5500W Single-Phase Local Metered PDU, 208/230V Output: (16) C13 & (2) C19 |
|
Condition |
Refurbished |
|
Warranty |
1 Year Full Replacement Warranty |
Overview:
|
|
|
|
PDU Type |
Local Metered |
Input:
|
|
|
|
Input Phase |
Single-Phase |
|
PDU Input Voltage |
208; 230 |
|
Recommended Electrical Service |
Single-phase 30A 208/230V |
|
Maximum Input Amps |
24 |
|
Maximum Input Amps Details |
Agency de-rated to 24A continuous |
|
PDU Plug Type |
NEMA L6-30P |
|
Input Cord Details |
Attached 12 ft (3.66 m) cord |
|
Input Cord Length (m) |
3.66 |
Output:
|
|
|
|
Output Capacity Details |
5.5kW (230V), 5kW (208V), 30A max (agency de-rated to 24A) |
|
Frequency Compatibility |
50 / 60 Hz |
|
Output Receptacles |
(16) C13; (2) C19 |
|
Output Nominal Voltage |
208/230V |
|
Overload Protection |
Two 20A breakers (9 outlets each) |
|
Customized Load Management |
Not individually controllable (Local Metered) |
User Interface, Alerts & Controls:
|
|
|
|
Front Panel LCD Display |
Two digital meters report load for Bank 1 & Bank 2 |
|
Front Panel LEDs |
Meter illumination indicators |
|
Switches |
None (Local Metered) |
Surge / Noise Suppressions:
|
|
|
|
Automatic Shut-Off |
No |
Physical:
|
|
|
|
Material of Construction |
Metal |
|
Form Factors Supported |
2U rackmount |
|
Minimum Required Rack Depth (cm) |
40.64 |
|
PDU Form Factor |
Horizontal (2U) |
|
Unit Dimensions (HWD / cm) |
8.8 × 44.4 × 31.8 |
|
Unit Weight (kg) |
6.21 |
Environmental:
|
|
|
|
Operating Temperature Range |
32° to 104°F (0° to 40°C) |
|
Storage Temperature Range |
-22° to 122°F (-30° to 50°C) |
|
Relative Humidity |
5% to 95% non-condensing |
|
Operating Elevation |
0–3000 m |
Features & Specifications:
|
|
|
|
High Availability Features |
Local metering; reversible housing; plug retention brackets |
|
Grounding |
Grounding lug |
Standards & Compliance:
|
|
|
|
Product Certifications |
NOM (Mexico); UL 62368-1 |
|
Product Compliance |
RoHS; FCC Part 15 Class A (USA); UKCA; TAA |
