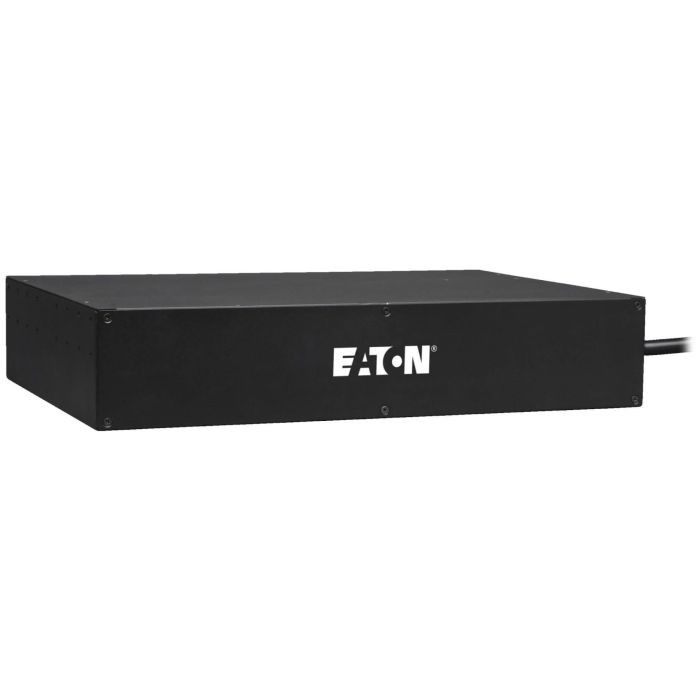

Main image Click to view image in fullscreen Tripp Lite PDUMH30HVNET 5500W Single-Phase Switched PDU 240V Output:(16)C13 - Refurbished

Tripp Lite PDUMH30HVNET 5500W Single-Phase Switched PDU 230V Output:(16)C13 - Refurbished

Tripp Lite 5500W Single-Phase Switched PDU, 200-230V, 2U
Model: PDUMH30HVNET
Input: (1) NEMA L6-30P (208-230V - 30A)
Output: (16) C13
Refurbished PDU
1 Year Warranty Included

Extended Warranty *

1 Year Included

2 Year + CAD $80.50

3 Year + CAD $140.87

In stock

Quantity

Manufacturer: Tripp Lite
Model: PDUMH30HVNET
Description: Tripp Lite 5500W Single-Phase Switched PDU 230V Output:(16)C13
Input: (1)L6-30P (208-230V - 30A)
Output: (16) C13
Condition: Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty available

Tripp Lite 5500W Single-Phase Switched PDU 230V - User Manual

Tripp Lite PDUMH30HVNET Specifications:

Overview

PDU Type

Switched

Input

Input Phase

Single-Phase

PDU Input Voltage

208; 230

Recommended Electrical Service

Single-phase 30A 208/230V service

Maximum Input Amps

Maximum Input Amps Details

Agency rated to 24A continuous

PDU Plug Type

(1) NEMA L6-30P

Input Cord Details

Set of two inputs connect to separate PRIMARY and SECONDARY power sources

Input Cord Length (m)

3.66

Output

Output Capacity Details

5.5kW (230V), 5kW (208V) total capacity / 30A max (Agency de-rated to 24A), 15A max per breakered outlet bank; 12A max per C13 outlet

Frequency Compatibility

50 / 60 Hz

Output Receptacles

(16) C13

Output Nominal Voltage

208/230V

Overload Protection

Two 15A breakers protect 8 outlets each

Customized Load Management
Receptacles

Each outlet is individually controllable via remote interface

User Interface, Alerts & Controls

Front Panel LCD Display

Digital display reports output amps in 3 separately metered loading segments (BANK 1: Outlets #1-8; BANK 2: Outlets #9-16; BANK 3: All outlets combined)

Front Panel LEDs

16 power availability LEDs; bank indication LEDs; SNMPWEBCARD/WEBCARDLX network status LEDs.

Switches

Pushbutton for bank display; SNMPWEBCARD/WEBCARDLX recessed reset button.

Surge / Noise Suppression

Automatic Shut-Off

Physical

Material of Construction	Metal
Form Factors Supported	2U rackmount
Minimum Required Rack Depth (cm)	37.59
PDU Form Factor	Horizontal (2U)
Unit Dimensions (hwd / cm)	8.9 x 44.5 x 31.75
Unit Weight (kg)	6.26

Environmental

Operating Temperature Range

32° to 104°F (0° to 40°C)

Storage Temperature Range

-22° to 122°F (-30° to 50°C)

Relative Humidity

5% to 95% non-condensing

Operating Elevation (m)

0-10000 ft. (0-3000 m)

Communications

PowerAlert Software	LX Platform Interface: PowerAlert Device Manager
Communications Cable	Micro-USB- to-USB A configuration/console Access cable
Network Monitoring Port	RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
SNMP Compatibility	Supports Java-free HTML5 web interface, Telnet, SSH and SNMP v1/v2c/v3
Network Compatibility	10 Mbps; 100 Mbps (Fast Ethernet)
Communications Interface	SNMPWEBCARD (Pre-Installed); WEBCARDLX (OPTIONAL); USB

Features & Specifications

High Availability PDU Features

Auto Probe Monitoring and Reboot (included); Auto-Transfer Switching; Auto Load Shedding

Standards & Compliance

Product Certifications	NOM (Mexico); UL 60950-1
Product Compliance	RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
