Tripp Lite PDUMNV20HV 3.2-3.8kW Monitored PDU, Zero U, 200-240V, (20) C13 (4) C19, L6-20P, C20, 20A Input - Refurbished
Tripp Lite 3.2-3.8kW Monitored PDU, 200-240V, (20) C13 (4) C19, L6-30P, C20, 0U Vertical
Model: PDUMNV20HV
Input: NEMA L6-20P, C20 (200-240V - 30A)

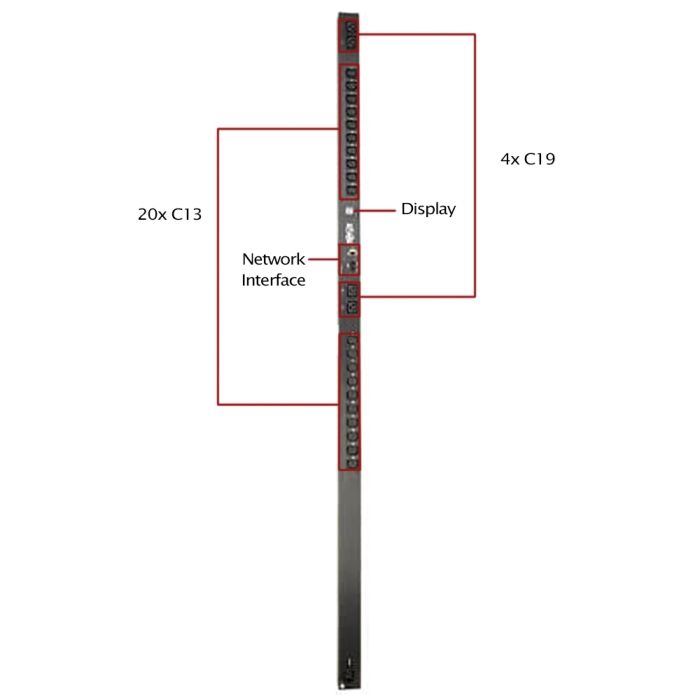

Output: (20) C13, (4) C19
Refurbished PDU
1 Year Warranty Included
CAD $287.49
In stock
Manufacturer: Tripp Lite
Model: PDUMNV20HV
Description: Tripp Lite Monitored PDU, Zero U, 20A, 200-240V
Input: NEMA L6-30P, C20 (200-240V - 20A)
Output: (20) C13, (4) C19
Condition: Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty available
Tripp Lite PDUMNV20HV Specifications:
Input
|
Input Phase |
Single-Phase |
|||
|
Recommended Electrical Service |
20A 208/240V; 16A 230V |
|||
|
Maximum Input Amps |
20 |
|||
|
Input Connection Type |
C20 inlet accepts included L6-20P input cable. Alternate C19 input cordsets supported. |
|||
|
PDU Plug Type |
|
|||
|
Input Cord Length (ft.) |
10 |
|||
|
Input Cord Length (m) |
3.05 |
Output
|
Output Capacity Details |
3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet |
|
|
Frequency Compatibility |
50 / 60 Hz |
|
|
Output Receptacles |
|
|
|
Output Nominal Voltage |
200; 208; 220; 230; 240 |
User Interface, Alerts & Controls
|
Front Panel LCD Display |
Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top |
|
Switches |
Press the SCROLL IP / ROTATE button and release after one second to display the configured IP address in 2 digit intervals; Press and release after two seconds to rotate the display 180 degrees |
Surge / Noise Suppression
|
Automatic Shut-Off |
No |
Physical
|
Form Factors Supported |
0U vertical rackmount installation supported with included mounting brackets; supports tooless mounting in buttonmount compatible racks |
|
PDU Form Factor |
Vertical (0U) |
|
Shipping Dimensions (hwd / in.) |
4.00 x 6.00 x 72.50 |
|
Shipping Dimensions (hwd / cm) |
10.16 x 15.24 x 184.15 |
|
Shipping Weight (lbs.) |
13.50 |
|
Shipping Weight (kg) |
6.12 |
|
Unit Dimensions (hwd / in.) |
70.000 x 2.190 x 2.650 |
|
Unit Dimensions (hwd / cm) |
177,8 x 5,6 x 6,7 |
|
Unit Weight (lbs.) |
8.50 |
|
Unit Weight (kg) |
3.86 |
Environmental
|
Operating Temperature Range |
0C ~ 40C (32F ~ 104F) |
|
Storage Temperature Range |
5 to 122F (-15 to 50C) |
|
Relative Humidity |
5-95% non-condensing |
|
Operating Elevation (ft.) |
0-10,000 |
|
Operating Elevation (m) |
0-3000 |
Communications
|
PowerAlert Software |
LX Platform Interface: PowerAlert Device Manager |
|
Communications Cable |
RJ45-to-DB9 configuration/console Access cable |
|
SNMP Compatibility |
Pre-installed SNMPWEBCARD provides remote monitoring via PowerAlert Console Launcher, Telnet, SSH, and SNMP management systems |
|
Network Compatibility |
10 Mbps; 100 Mbps (Fast Ethernet) |
