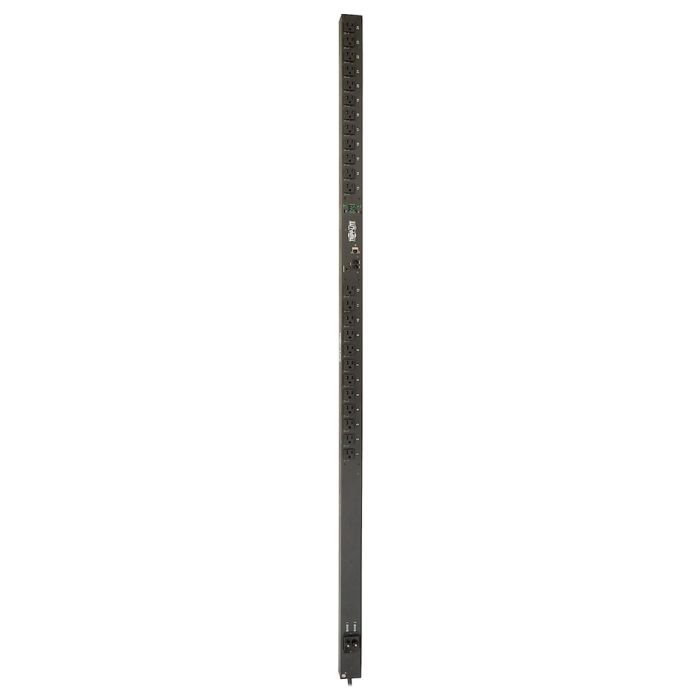

Tripp Lite PDUMNV30 2.9kW Monitored PDU, Zero U, 120V, (24) 5-15/20R, L5-30P 30A Input - Refurbished
Tripp Lite 2.9kW Monitored PDU, 120V, (24) 5-15/20R, L5-30P, 10ft Cord, 0U Vertical
Model: PDUMNV30
Input: NEMA L5-30P (120V - 30A)
Output: (24) 5-20R
Refurbished PDU
1 Year Warranty Included
CAD $229.99
Back Order
Manufacturer: Tripp Lite
Model: PDUMNV30
Description: Tripp Lite Monitored PDU, Zero U, 30A, 120V
Input: NEMA L5-30P (120V - 30A)
Output: (24) NEMA 5-20R
Condition: Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty available
Tripp Lite PDUMNV30 Specifications:
Input
|
Input Phase |
Single-Phase |
||
|
Recommended Electrical Service |
30A 120V |
||
|
Maximum Input Amps |
30 |
||
|
Maximum Input Amps Details |
Agency de-rated to 24A continuous |
||
|
PDU Plug Type |
|
||
|
Input Cord Length (ft.) |
10 |
||
|
Input Cord Length (m) |
3.05 |
Output
|
Output Capacity Details |
3.05kW (127V), 2.88kW (120V), 2.4kW (100V) / 30A total capacity (Agency de-rated 24A); 20A max per breakered load bank; 16A max per outlet |
||
|
Frequency Compatibility |
50 / 60 Hz |
||
|
Output Connections |
|
||
|
Output Nominal Voltage |
100; 120; 127 |
||
|
Overload Protection |
Two 20A breakers protect 12 outlets each |
User Interface, Alerts & Controls
|
Front Panel LCD Display |
Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top |
|
Front Panel LEDs |
Front panel LEDs indicate which loading segment the digital LCD current display is reporting; Bank 1 LED indicates the meter is reporting load level for outlets 1-12; Bank 2 LED indicates the meter is reporting load level for outlets 13-24; Both LEDs lighted indicates the meter is reporting load level for all outlets combined |
|
Switches |
Press the SCROLL IP button and release to display the configured IP address in 2 digit intervals; Press the SELECT / ROTATE button and release after one second to advance the local display power power consumption for the 3 reported segments: Bank 1, Bank 2 and Banks 1+2; Press the SELECT / ROTATE button and release after two seconds to rotate the display 180 degrees |
Surge / Noise Suppression
|
Automatic Shut-Off |
No |
Physical
|
Material of Construction |
Aluminum |
|
Form Factors Supported |
0U vertical rackmount installation supported with included mounting brackets; supports tooless mounting in buttonmount compatible racks |
|
PDU Form Factor |
Vertical (0U) |
|
Shipping Dimensions (hwd / in.) |
5.00 x 6.30 x 73.10 |
|
Shipping Dimensions (hwd / cm) |
12.70 x 16.00 x 185.67 |
|
Shipping Weight (lbs.) |
13.60 |
|
Shipping Weight (kg) |
6.17 |
|
Unit Dimensions (hwd / in.) |
70.000 x 2.190 x 1.750 |
|
Unit Dimensions (hwd / cm) |
177.8 x 5.56 x 4.45 |
|
Unit Weight (lbs.) |
11.5 |
|
Unit Weight (kg) |
5.22 |
Environmental
|
Operating Temperature Range |
0C ~ 40C (32F ~ 104F) |
|
Storage Temperature Range |
5 to 122F (-15 to 50C) |
|
Relative Humidity |
5-95% non-condensing |
|
Operating Elevation (ft.) |
0-10,000 |
|
Operating Elevation (m) |
0-3000 |
Communications
|
PowerAlert Software |
LX Platform Interface: PowerAlert Device Manager |
|
Communications Cable |
RJ45-to-DB9 configuration/console Access cable |
|
SNMP Compatibility |
Pre-installed SNMPWEBCARD provides remote monitoring via PowerAlert Console Launcher, Telnet, SSH, and SNMP management systems |
|
Network Compatibility |
10 Mbps; 100 Mbps (Fast Ethernet) |
