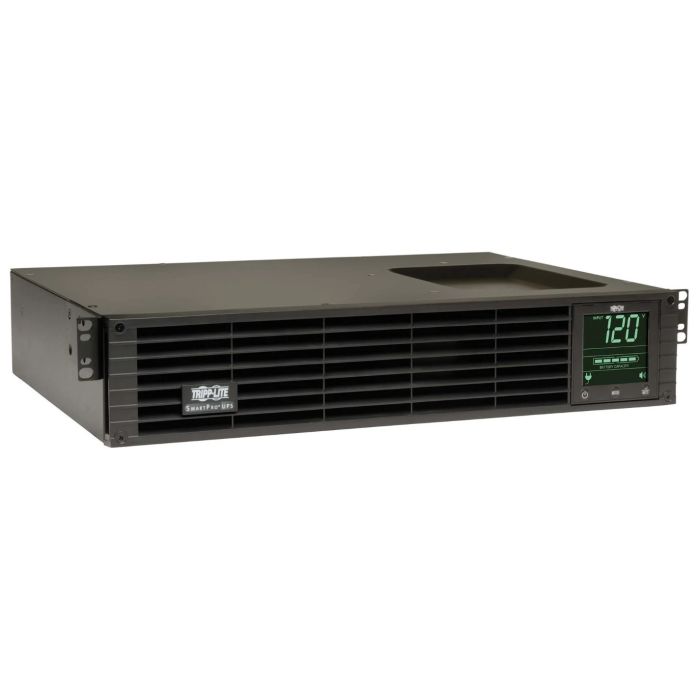

Main image Click to view image in fullscreen Tripp Lite SM2200RMXL2UP 2200VA 1920W 120V 2U UPS AVR Output: (4)5-15R, (4)5-15/20R, Refurbished

Tripp Lite SM2200RMXL2UP 2200VA 1920W 120V 2U UPS AVR Output: (4)5-15R, (4)5-15/20R, Refurbished

Tripp Lite SmartPro 2200VA 1920W RM 2U
Model: SM2200RMXL2UP
Input: NEMA 5-20P (120V - 20A)
Output: (4) NEMA 5-15R, (4) NEMA 5-15/20R
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included

Extended Warranty

1 Year Included

2 Year + CAD $161.00

3 Year + CAD $281.75

In stock

Quantity

Manufacturer: Tripp Lite
Model: Tripp Lite SmartPro UPS 2200VA 1920W, RM, 20A, 120V, AVR
Condition: New Batteries, Refurbished UPS
Part Number: SM2200RMXL2UP
Maximum output: 1920W / 2200VA
Typical backup time at half load: 12 minutes (960 Watts)
Typical backup time at full load: 4.5 minutes (1920 Watts)
Output Waveform: Pure Sine Wave
Warranty: 1 Year Full Replacement Warranty

Description: Line-Interactive SmartPro UPS with pure sine wave output, automatic voltage regulation (AVR) and extended runtime capability. Designed for rackmount or tower installation (2U), it provides reliable protection for servers, networking equipment and telecom systems. Features hot-swappable batteries, LCD monitoring interface, USB/DB9 communications and optional network management card support for remote monitoring.

Tripp Lite SmartPro SM2200RMXL2UP UPS 2200VA 1920W, RM, 20A, 120V, AVR - User's Manual

SM2200RMXL2UP - Tripp Lite SmartPro UPS Specifications:

Main:

Main Input Voltage	120V AC
Main Output Voltage	120V
Rated Power in W	1920W
Rated Power in VA	2200VA
Input Connection Type	NEMA 5-20P
Output Connection Type	(4) NEMA 5-15R, (4) NEMA 5-15/20R
Number of Rack Unit	2U
Cable Length	10 ft (3.1 m)
Number of Cables	1
Battery Type	VRLA (Lead-Acid, Hot-Swappable)

General:

Number of Power Module Filled Slots	0
Number of Power Module Free Slots	0
Redundant	No
Topology	Line-Interactive
Waveform Type	Pure Sine Wave
Power Factor	0.87
Efficiency (Line Mode)	96%

Input:

Efficiency at Full Load	Up to 96% line-mode efficiency
Input Voltage Range (AVR)	83V – 145V (Automatic Voltage Regulation)
Input Frequency	60 Hz ±3 Hz
Input Current	16A max
Recommended Electrical Service	20A 120V
Input Phase	Single-Phase
Efficiency (Line Mode)	96%

Batteries & Runtime:

Extendable Run Time	Yes
Included Battery Modules	Internal VRLA battery system
Battery Slots Empty	0
Typical Recharge Time	<4.5 hours (10–90%)
Battery Life	3–5 years typical
Replacement Battery	RBC94-2U
Battery Runtime Full Load	4.5 min (1920W)
Battery Runtime Half Load	12 min (960W)

Communications & Management:

Control Panel	LCD display with load, battery, status & configuration
Emergency Power Off (EPO)	Yes
Free Slots	1 SmartSlot
Alarm	Battery, overload, low battery, fault alarms
Network Management Slot	Yes (SmartSlot)
Serial Port	DB9 (RS-232)
USB Port	Yes (HID-compliant)
Communication Interfaces	USB, RS-232, SmartSlot, EPO
Remote Monitoring	Supported via optional network card
Software Compatibility	PowerChute Business Edition / PowerAlert
Watchdog / Auto-Reboot	Supported
Monitoring Functions	Voltage, load, battery status, diagnostics
Event Logging	Yes (via software / SNMP)
Remote Access	Full SNMP/Web (with card)
Firmware Updates	Via network card

User Interface, Alerts & Controls:

Front Panel Display	LCD status screen with detailed UPS data
Front Panel Indicators	Online, battery, overload, replace battery
Controls	Power ON/OFF, self-test, alarm mute
Audible Alarm	Battery mode, overload, low battery, fault
Alarm Management	Configurable
Emergency Power Off (EPO)	Supported
Control Interface Type	LCD + push button interface

Surge Protection and Filtering:

Surge Energy Rating

570 Joules

Physical:

Color	Black
Height	3.5 in (8.89 cm)
Width	17.5 in (44.45 cm)
Depth	19.0 in (48.26 cm)
Net Weight	64 lb (29.03 kg)
Mounting Location	4-Post Rack
Mounting Preference	Standard Rack
Mounting Mode	Rack-mounted
Two Post Mountable	No
USB Compatible	Yes
