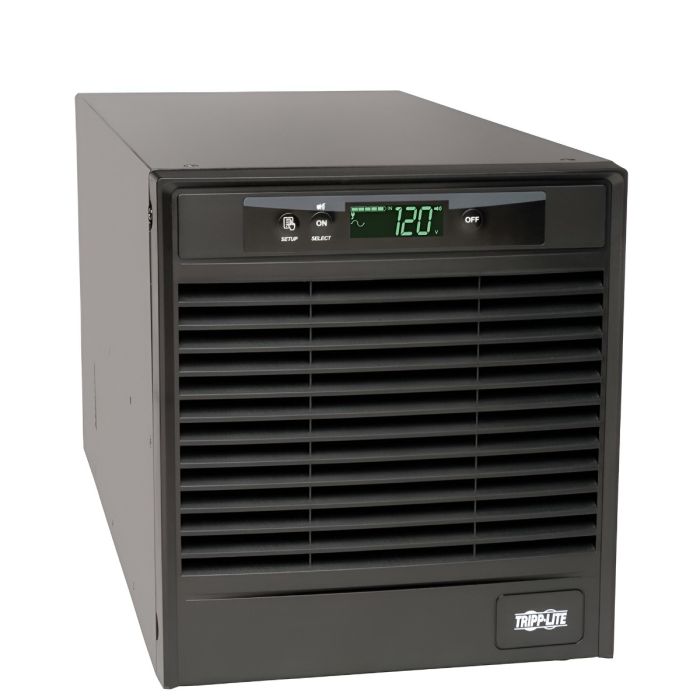

Tripp Lite SmartOnline UPS 2200VA 1800W Tower 120V 20A, SU2200XLCD - Refurbished

Rated input current (Maximum Load)

16A

Nominal Input Voltage(s) Supported

100V AC; 110V AC; 120V AC; 127V AC

Nominal Input Voltage Description

120V factory default

UPS Input Connection Type

Input Circuit Breakers

30A

UPS Input Cord Length (ft.)

10

Recommended Electrical Service

20A 120V

Input Phase

Single-Phase

Output Capacity (VA)

2200

Output Capacity (kVA)

2.2

Output Capacity (Watts)

1800

Output Capacity (kW)

1.8

Output Capacity Details

ON LINE MODE: Maximum output capacity rating is reduced to 1620W (115V), 1530W (110V) and 1440W (100V); FREQUENCY REGULATION / CONVERSION MODE: Maximum output ratings are reduced in frequency regulation / conversion mode (127/120V 1260 watts, 115V 1134 watts, 110V 1071 watts, 100V 1008 watts) OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150% load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits)

Power Factor

0.82

Crest Factor

3:1

Nominal Voltage Details

120V default

Frequency Compatibility

50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion

Frequency Compatibility Details

ON LINE MODE: Output frequency is automatically configured to match nominal input frequency on startup; Output matches input frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal. UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. FREQUENCY REGULATION / CONVERSION MODE: Output is regulated to +/-0.05Hz of selected output frequency when input is 40 to 70Hz; UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. BATTERY MODE: Output is regulated to +/-0.05Hz of selected nominal.

Output Voltage Regulation (Line Mode)

+/- 2%

Output Voltage Regulation (Economy Line Mode)

+/- 10%

Output Voltage Regulation (Battery Mode)

+/- 3%

Load Management Receptacles

Two switchable three-outlet load banks

Output AC Waveform (AC Mode)

Pure Sine wave

Output AC Waveform (Battery Mode)

Pure Sine wave

Nominal Output Voltage(s) Supported

100V; 110V; 115V; 120V; 127V

Output Receptacles

Individually Controllable Load Banks

Yes

Battery Type

Valve Regulated Lead Acid (VRLA)

Runtime Full Load (min.)

4.5 min. (1800W)

Runtime Half Load (min.)

13 min. (900W)

Expandable Runtime

Yes

Expandable Runtime Description

External battery configurations require the use of Tripp Lite's External Battery Configuration Software, see manual for details

External Battery Pack Compatibility

BP48V27-2US (multi-pack compatible);
BP48V60RT-3U (multi-pack compatible)

DC System Voltage (VDC)

48

Battery Recharge Rate (Included Batteries)

Less than 3 hours from 10% to 90%

Battery Access

Battery access door

Internal UPS Replacement Battery Cartridge

RBC48-SUTWR

Battery Replacement Description

Hot-swappable, user replaceable batteries

Voltage Regulation Description

Online, double-conversion power conditioning

Overvoltage Correction

2% output voltage regulation during overvoltages to 150

Undervoltage Correction

2% output voltage regulation during undervoltages to 55V (33% load), 70V (70% load), 100V (100% load)

Front Panel LCD Display

Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options

Switches

2 switches control off/on power status and alarm-cancel/self-test operation

Alarm Cancel Operation

Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available

Audible Alarm

Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

UPS AC Suppression Joule Rating

570

UPS AC Suppression Response Time

Instantaneous

UPS Dataline Suppression

1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet

EMI / RFI AC Noise Suppression

Yes

Primary Form Factor

Tower

Cooling Method

Fan

Installation Form Factors Supported with Included Accessories

Tower

Primary UPS Depth (mm)

495

Primary UPS Height (mm)

259

Primary UPS Width (mm)

229

Shipping Dimensions (hwd / in.)

14.70 x 13.50 x 23.10

Shipping Weight (lbs.)

60.00

UPS Housing Material

Steel

UPS Power Module Dimensions (hwd, in.)

10.2 x 9 x 19.5

UPS Power Module Weight (kg)

24.00

UPS Power Module Weight (lbs.)

52.9

Operating Temperature Range

Storage Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity

0 to 95%, non-condensing

AC Mode BTU / Hr. (Full Load)

684

AC Economy Mode BTU / Hr. (Full Load)

190

Battery Mode BTU / Hr. (Full Load)

1087

AC Mode Efficiency Rating (100% Load)

92%

AC Economy Mode Efficiency Rating (100% Load)

97%

Audible Noise

< 50.5 dB at front side 1m

Operating Elevation (m)

Up to 3000m

Network Management Cards

SNMPWEBCARD; TLNETCARD ; WEBCARDLX ; MODBUSCARD ; RELAYIOCARD / Not included

Network Monitoring Port Description

Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure communications

PowerAlert Software

For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at https://www.tripplite.com/poweralert

Communications Cable

USB and DB9

WatchDog Compatibility

Supports Watchdog application, OS and hard-reboot restart options for remote applications

Network Management Card Description

Network management card optional

Communications Interface

Contact closure; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)

Transfer Time

Zero transfer time (0 ms.) in online, double-conversion and frequency regulation / conversion modes

Low Voltage Transfer to Battery Power (Setpoint)

55V (33% load), 70V (70% load), 100V (100% load)

High Voltage Transfer to Battery Power (Setpoint)

150

Cold Start (Startup in Battery Mode During a Power Failure)

Cold-start operation supported

High Availability UPS Features

Auto Probe Monitoring and Reboot (requires WEBCARDLX); Automatic inverter bypass; Expandable battery backup; Hot swappable batteries; On-Line/Double-Conversion; Remote management; Sine wave output; Surge/noise protection; Zero transfer time

Green Energy-Saving Features

High efficiency economy mode operation; Individually controllable load banks; Schedulable daily hours of economy mode operation
