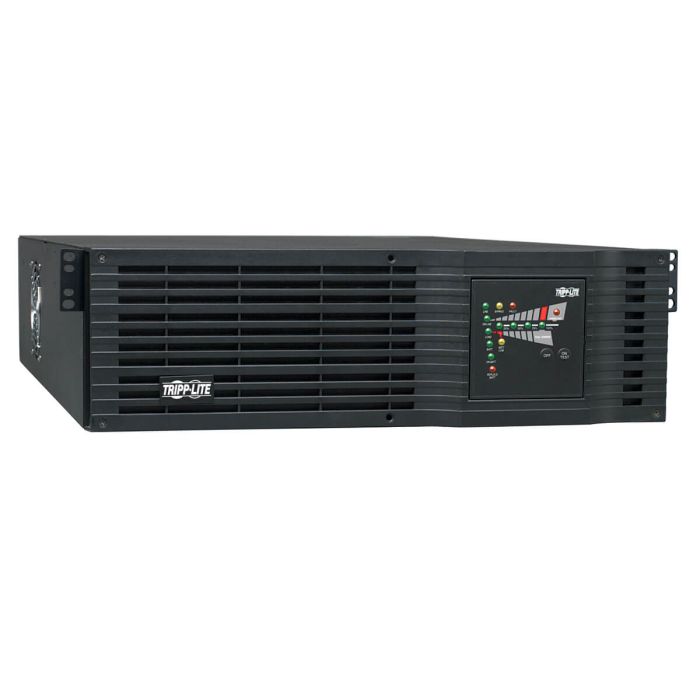

Tripp Lite SmartOnline 3000VA 2400W RM 3U 120V SU3000RTXR3UJB - Refurbished

Rated input current (Maximum Load)

24A

Nominal Input Voltage(s) Supported

110V AC; 120V AC

UPS Input Connection Type

Recommended Electrical Service

30A 120V

Output Volt Amp Capacity (VA)

3000

Output Capacity (kVA)

3

Output Watt Capacity (Watts)

2400

Output kW Capacity (kW)

2.4

Power Factor

0.8

Crest Factor

3:1

Nominal Voltage Details

120V default

Frequency Compatibility

50 / 60 Hz

Frequency Compatibility Details

Output frequency matches input nominal on startup, defaults to 60 Hz on cold-start

Output Voltage Regulation (Line Mode)

+/- 2%

Output Voltage Regulation (Economy Line Mode)

+/- 10%

Output Voltage Regulation (Battery Mode)

+/- 2%

Output AC Waveform (AC Mode)

Sine wave

Output AC Waveform (Battery Mode)

Pure Sine wave

Nominal Output Voltage(s) Supported

110V; 120V

Output Receptacles

Full Load Runtime (min.)

12 min. (2400w)

Half Load Runtime (min.)

30 min. (1200w)

Expandable Battery Runtime

Supports extended runtime with optional external battery packs

External Battery Pack Compatibility

BP72V15-2U (limit 1); BP72V28RT-3U (multi-pack compatible)

DC System Voltage (VDC)

72

Battery Recharge Rate (Included Batteries)

Less than 6 hours from 10% to 80%

Battery Access

Front panel battery access door

Internal UPS Replacement Battery Cartridge

RBC96-3U (quantity 2)

Battery Replacement Description

Hot-swappable, user replaceable batteries

Voltage Regulation Description

Online, double-conversion power conditioning

Overvoltage Correction

2% output voltage regulation during overvoltages to 150

Undervoltage Correction

2% output voltage regulation during undervoltages to 80

Severe Undervoltage Correction

2% output voltage regulation during undervoltages to 65 (under 70% load only)

Switches

2 Switches control off/on power status and alarm-cancel/self-test operation

Alarm Cancel Operation

Power-fail alarm can be silenced using alarm-cancel switch

Audible Alarm

Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

LED Indicators

14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery and fault status information; 4-LED meter displays load and battery charge levels; LED panel rotates for viewing in rack/tower formats

UPS AC Suppression Joule Rating

480

UPS AC Suppression Response Time

Instantaneous

UPS Dataline Suppression

1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet

EMI / RFI AC Noise Suppression

Yes

Primary Form Factor

Cooling Method

Installation Form Factors Supported with Included Accessories

Installation Form Factors Supported with Optional Accessories

Optional Mounting Accessory Notes

Primary UPS Depth (mm)

Primary UPS Height (mm)

Primary UPS Width (mm)

452

Rack Height

3U

UPS Housing Material

Steel

Operating Temperature Range

Storage Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.

Relative Humidity

0 to 95%, non-condensing

AC Mode BTU / Hr. (Full Load)

1112.7

AC Economy Mode BTU / Hr. (Full Load)

520.9

Battery Mode BTU / Hr. (Full Load)

1219.3

AC Mode Efficiency Rating (100% Load)

88%

AC Economy Mode Efficiency Rating (100% Load)

94%

Network Monitoring Port Description

SNMPWEBCARD network accessory included; Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure communications

PowerAlert Software

Included

Communications Cable

USB and DB9 cabling included

WatchDog Compatibility

Supports Watchdog application, OS and hard-reboot restart options for remote applications

Communications Interface

USB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface
