Description
Details
Manufacturer: Tripp Lite

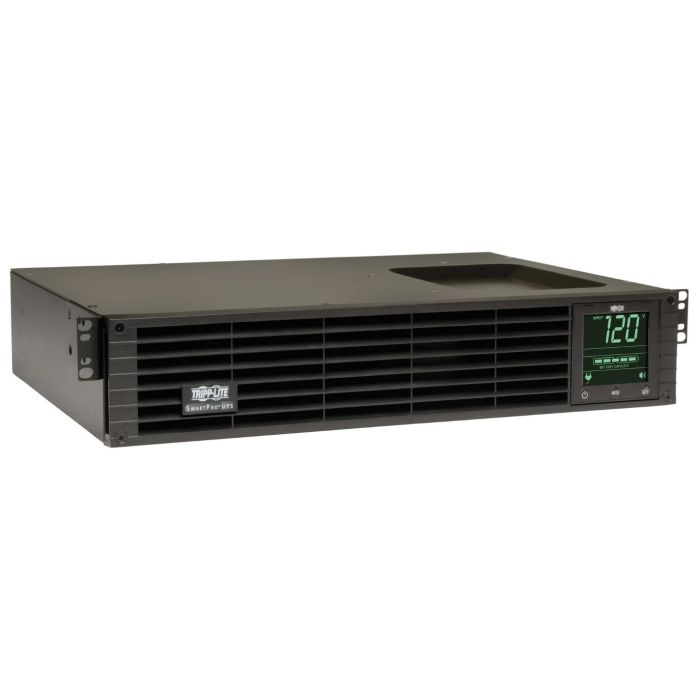

Model: Tripp Lite SmartPro UPS 1500VA 1350W, RM, 20A, 120V, WEBCARDLX Network Interface
Condition: New batteries, refurbished UPS
Part Number: SMART1500RM2UN
Maximum output: 1350W / 1500VA
Typical backup time at half load: 13 minutes (675 Watts)
Typical backup time at full load: 4.5 minutes (1350 Watts)
Warranty: 1 year full replacement warranty
Tripp Lite SmartPro 1500VA 1350W RM 120V SMART1500RM2UN Manual
SMART1500RM2UN - Tripp Lite SmartPro 1500VA Specifications:
Input:
|
Input Phase |
Single-Phase |
||
|
Rated input current (Maximum Load) |
12A |
||
|
Nominal Input Voltage(s) Supported |
120V AC |
||
|
UPS Input Connection Type |
|
||
|
Input Circuit Breakers |
15A |
||
|
UPS Input Cord Length (ft.) |
10 |
||
|
UPS Input Cord Length (m) |
3.1 |
||
|
Recommended Electrical Service |
15A 120V |
Output:
|
Output Capacity (VA) |
1500 |
||
|
Output Capacity (kVA) |
1.5 |
||
|
Output Capacity (Watts) |
1350 |
||
|
Output Capacity (kW) |
1.35 |
||
|
Power Factor |
0.9 |
||
|
Nominal Voltage Details |
120v nominal output in battery mode |
||
|
Frequency Compatibility |
60 Hz |
||
|
Output Voltage Regulation (Line Mode) |
-21%, +8% |
||
|
Output Voltage Regulation (Battery Mode) |
+/- 5% |
||
|
Load Management Receptacles |
Two switchable two-outlet 5-15R load banks |
||
|
Output AC Waveform (AC Mode) |
Sine wave |
||
|
Output AC Waveform (Battery Mode) |
Pure Sine wave |
||
|
Nominal Output Voltage(s) Supported |
110V; 115V; 120V |
||
|
Output Receptacles |
|
||
|
Individually Controllable Load Banks |
Yes |
Battery:
|
Battery Type |
Valve Regulated Lead Acid (VRLA) |
|
Runtime Full Load (min.) |
4.5 min. (1350W) |
|
Runtime Half Load (min.) |
13 min. (675W) |
|
Expandable Runtime |
No |
|
DC System Voltage (VDC) |
36 |
|
Battery Recharge Rate (Included Batteries) |
Less than 4.5 hours from 10% to 90% (typical, full load discharge) |
|
Battery Access |
Front panel battery access door |
|
Internal UPS Replacement Battery Cartridge |
RBC93-2U |
|
Battery Replacement Description |
Hot-swappable, user replaceable batteries |
Voltage Regulation:
|
Voltage Regulation Description |
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147 |
|
Overvoltage Correction |
Input voltages between 128 and 147 are reduced by 12% |
|
Undervoltage Correction |
Input voltages between 83 and 107 are boosted by 14% |
User Interface, Alerts & Controls:
|
Front Panel LCD Display |
Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options) |
|
Switches |
3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions. LX Platform Interface: Recessed reset switch for interface reboot and factory reset. |
|
Alarm Cancel Operation |
Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available |
|
Audible Alarm |
Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions |
|
LED Indicators |
Network Link/Activity (Green): Flashes for network activity. Network Speed (Yellow): 10 Mbps (Flashing), 100 Mbps (On steady). LX Platform Interface Status: Normal Operation (Solid Green); Software Update (Alternating Green/Orange ~1/sec); Factory Reset (Alternating Green/Orange ~2/sec). |
Surge / Noise Suppression:
|
UPS AC Suppression Joule Rating |
570 |
|
UPS AC Suppression Response Time |
Instantaneous |
|
EMI / RFI AC Noise Suppression |
Yes |
Physical:
|
Primary Form Factor |
Rackmount
|
|
Rack Height |
2U |
|
Cooling Method |
Fan |
|
Included Mounting Accessory Description |
No rail kit included - Sold separately |
|
Installation Form Factors Supported with Included Accessories |
4 post 19 inch rackmount |
|
Installation Form Factors Supported with Optional Accessories |
2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2- 9USTAND ); Wallmount ( 2POSTRMKITWM ) |
|
Minimum Required Rack Depth (cm) |
43.18 |
|
Minimum Required Rack Depth (inches) |
17 |
|
Optional Mounting Accessory Notes |
Optional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support |
|
Primary UPS Depth (mm) |
342 |
|
Primary UPS Height (mm) |
88 |
|
Primary UPS Width (mm) |
439 |
|
Shipping Dimensions (hwd / cm) |
21.59 x 59.18 x 49.78 |
|
Shipping Dimensions (hwd / in.) |
8.50 x 23.30 x 19.60 |
|
Shipping Weight (lbs.) |
58.95 |
|
Shipping Weight (kg) |
26.74 |
|
UPS Housing Material |
Steel |
|
UPS Power Module Dimensions (hwd, cm) |
8.76 x 43.94 x 34.16 |
|
UPS Power Module Dimensions (hwd, in.) |
3.45 x 17.3 x 13.45 |
|
UPS Power Module Weight (kg) |
21.09 |
|
UPS Power Module Weight (lbs.) |
46.5 |
|
Unit Weight (lbs.) |
46.5000 |
|
Unit Weight (kg) |
21.09 |
Communications:
|
Network Management Cards |
Not included
|
|
Network Monitoring Port Description |
Not included |
|
PowerAlert Software |
For local monitoring via the UPS’s built-in Serial or USB communication ports, download PowerAlert software at https://tripplite.eaton.com/products/power-alert |
|
Communications Cable |
Micro-USB, USB, and DB9 cabling - NOT included |
|
WatchDog Compatibility |
Supports Watchdog application, OS and hard-reboot restart options for remote applications |
|
EPO Port |
RJ11 interface jack with 4 meter cable included. Supports normally open and normally closed EPO systems |
|
SNMP Compatibility |
SNMPv1, V2c, V3 |
|
Network UPS Tools (NUT) Compatibility |
NUT compatible. See a full list of NUT compatible Tripp Lite UPS systems at https://networkupstools.org/stablehcl.html?manufacturer=Tripp%20Lite |
|
Network Compatibility |
100 Mbps (Fast Ethernet) |
|
Network Management Card Description |
Not included |
|
Communications Interface |
DB9 Serial; EPO (emergency power off); Pre-installed network card; Slot for SNMP/Web interface; USB (HID enabled) |
Environmental:
|
Operating Temperature Range |
32° to 104°F (0° to 40°C)
|
|
Storage Temperature Range |
5° to 122°F (-15° to 50°C) |
|
Relative Humidity |
0 to 95%, non-condensing |
|
AC Mode BTU / Hr. (Full Load) |
267 |
|
Battery Mode BTU / Hr. (Full Load) |
1012 |
|
AC Mode Efficiency Rating (100% Load) |
95% |
|
Audible Noise |
45 dBA maximum, front side 1m |
Line / Battery Transfer:
|
Transfer Time |
2-4 milliseconds |
|
Low Voltage Transfer to Battery Power (Setpoint) |
83 |
|
High Voltage Transfer to Battery Power (Setpoint) |
147 |
Features & Specifications:
|
Cold Start (Startup in Battery Mode During a Power Failure) |
Cold-start operation supported |
|
High Availability UPS Features |
Auto Probe Monitoring and Reboot (included); Automatic Voltage Regulation (AVR); Hot swappable batteries; Remote management; Surge/noise protection |
|
Green Energy-Saving Features |
Greater than 95% efficiency - GREEN UPS; Individually controllable load banks |
|
Grounding Lug |
Back panel grounding lug |
Standards & Compliance:
|
Product Certifications |
CSA (Canada); NOM (Mexico); UL 1778 |
|
Product Compliance |
RoHS; FCC Part 15 Class B (USA) |
Additional Info
Additional Info
| Manufacturer | Tripp Lite |
|---|---|
| Form Factor | Rackmount |
| Waveform in Battery Mode | Pure Sinewave |
| Input Voltage | 120V AC |
| Output (VA) | 1500VA |
| Output Voltage | 120V AC |
| PDU Total Outlets | No |
