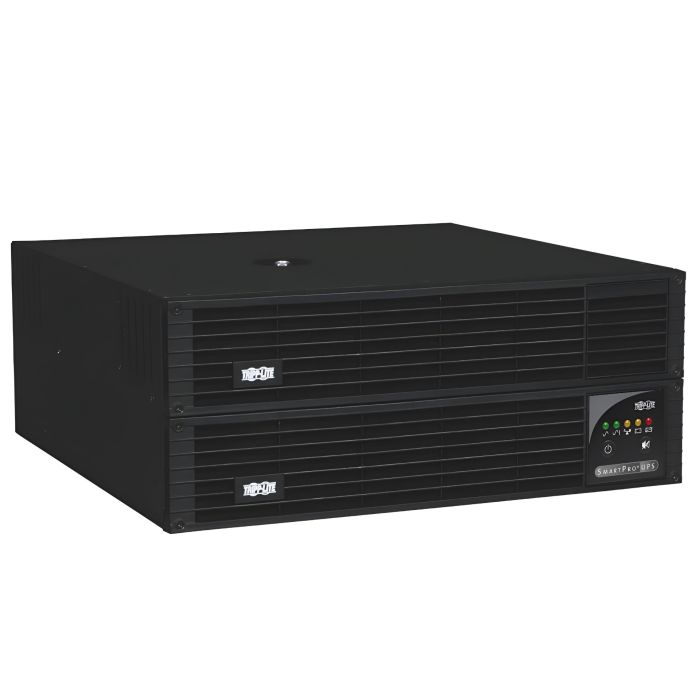

Tripp Lite SmartPro UPS 2200VA 1900W RM 4U 120V 20A SMART2200CRMXL - Refurbished

Rated input current (Maximum Load)

16A

Nominal Input Voltage(s) Supported

120V AC

UPS Input Connection Type

Input Circuit Breakers

20A

UPS Input Cord Length (ft.)

10

UPS Input Cord Length (m)

3.1

Recommended Electrical Service

20A 120V

Input Phase

Single-Phase

Output Volt Amp Capacity (VA)

2200

Output Capacity (kVA)

2.20

Output Watt Capacity (Watts)

1900

Output kW Capacity (kW)

1.90

Power Factor

0.86

Nominal Voltage Details

120v nominal output in battery mode

Frequency Compatibility

60 Hz

Output Voltage Regulation (Line Mode)

-18%, +8%

Output Voltage Regulation (Battery Mode)

+/- 5%

Load Management Receptacles

Three switchable single-outlet 5-15R load banks

Output AC Waveform (AC Mode)

Sine wave

Output AC Waveform (Battery Mode)

Pure Sine wave

Nominal Output Voltage(s) Supported

110V; 115V; 120V

Output Receptacles

Individually Controllable Load Banks

Yes

Battery Type

Valve Regulated Lead Acid (VRLA)

Full Load Runtime (min.)

11 min. (1900w)

Half Load Runtime (min.)

28 min. (950w)

Expandable Battery Runtime

Extended runtime supported via optional external battery packs

External Battery Pack Compatibility

BP48V24-2U  (limit 1);  BP48V48RT4U  (multi-pack compatible);  BP48V27- 2US  (multi-pack compatible)

DC System Voltage (VDC)

48

Battery Recharge Rate (Included Batteries)

Less than 3.6 hours from 10% to 90% (typical, full load discharge)

Battery Access

Front panel battery access door

Internal UPS Replacement Battery Cartridge

RBC94-2U  (quantity 2)

Battery Replacement Description

Hot-swappable, user replaceable batteries

Expandable Runtime

Yes

Voltage Regulation Description

Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145

Overvoltage Correction

Input voltages between 127 and 145 are reduced by 12%

Undervoltage Correction

Input voltages between 92 and 107 are boosted by 14%

Severe Undervoltage Correction

Input voltages between 83 and 95 are boosted by 24%

Switches

2 Switches control off/on power status and alarm-cancel/self-test operation; rear panel protected switches support low/high charger settings

Alarm Cancel Operation

Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate lowbattery status

Audible Alarm

Audible alarm indicates power-failure, overload and low-battery conditions

LED Indicators

5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

UPS AC Suppression Joule Rating

570

UPS AC Suppression Response Time

Instantaneous

EMI / RFI AC Noise Suppression

Yes

Primary Form Factor

Cooling Method

Included Mounting Accessory Description

Installation Form Factors Supported with Included Accessories

Installation Form Factors Supported with Optional Accessories

Minimum Required Rack Depth with External Battery Pack (cm)

Minimum Required Rack Depth with External Battery Pack (in.)

Minimum Required Rack Depth without External Battery Pack (in.)

Optional Mounting Accessory Notes

Primary UPS Depth (mm)

Primary UPS Height (mm)

175

Primary UPS Width (mm)

439

Rack Height

4U

Shipping Dimensions (hwd / cm)

35.56 x 58.42 x 59.69

Shipping Dimensions (hwd / in.)

14.00 x 23.00 x 23.50

Shipping Weight (kg)

56.25

Shipping Weight (lbs.)

124.00

UPS Housing Material

Steel

UPS Power Module Dimensions (hwd, cm)

17.50 x 43.94 x 45.21

UPS Power Module Dimensions (hwd, in.)

6.89 x 17.30 x 17.80

UPS Power Module Weight (kg)

45.50

UPS Power Module Weight (lbs.)

100.3

Operating Temperature Range

Storage Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity

0 to 95%, non-condensing

AC Mode BTU / Hr. (Full Load)

242

Battery Mode BTU / Hr. (Full Load)

885

AC Mode Efficiency Rating (100% Load)

97%

Audible Noise

45 dBA maximum, front side 1m

Network Management Cards

SNMPWEBCARD ;  WEBCARDLX ;  RELAYIOCARD -Optional

Network Monitoring Port Description

Supports detailed monitoring of UPS and site power conditions

PowerAlert Software

For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at https://www.tripplite.com/poweralert

Communications Cable

USB and DB9 cabling included

WatchDog Compatibility

Supports Watchdog application, OS and hard-reboot restart options for remote applications

Network Management Card Description

Network management card - Optional

Communications Interface

DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)
