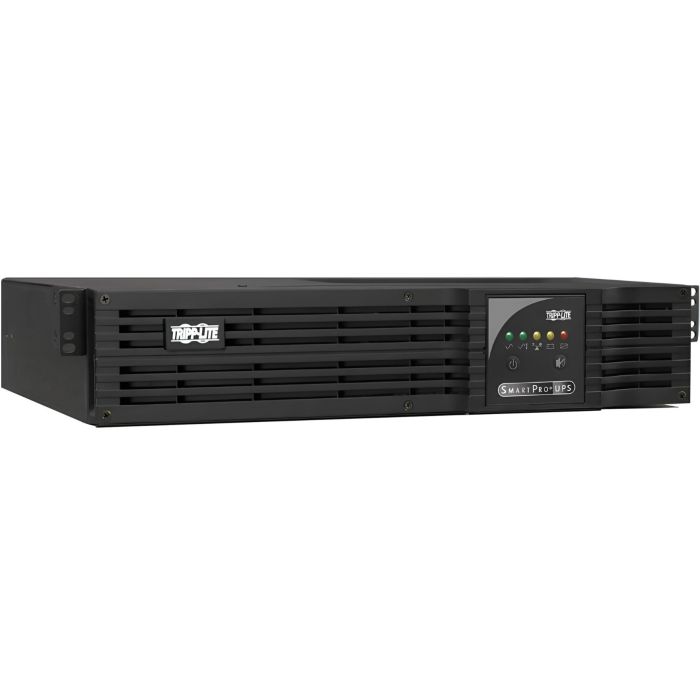

Tripp Lite SmartPro UPS 2600VA 2100W RM 2U 120V 20A LED, SMART2600RM2U - Refurbished
Tripp Lite SmartPro 2600VA 2100W RM 2U
Model: SMART2600RM2U
Input:Â NEMAÂ 5-20PÂ (120V - 20A)
Output: (4) NEMA 5-15R, (4) NEMA 5-15/20R, (1) NEMA L5-20R
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $609.49
Back Order
Manufacturer: Tripp Lite
Model: Tripp Lite SmartPro UPS 2600VA 2100W, RM, 20A, 120V
Condition: New batteries, refurbished UPS
Part Number: SMART2600RM2U
Maximum output: 1920W / 2200VA
Typical backup time at half load: 12.9 minutes (960 Watts)
Typical backup time at full load: 4.6 minutes (1920 Watts)
Warranty: 1 year full replacement warranty
Tripp Lite SmartPro 2600VA 2100W RM 2U 120V SMART2600RM2U Manual
SMART2600RM2U - Tripp Lite SmartPro 2600VA Specifications:
Input:
|
Rated input current (Maximum Load) |
16A |
||
|
Nominal Input Voltage(s) Supported |
120V AC |
||
|
UPS Input Connection Type |
|
||
|
UPS Input Cord Length (ft.) |
10 |
||
|
UPS Input Cord Length (m) |
3.1 |
||
|
Recommended Electrical Service |
20A 120V |
||
|
Input Phase |
Single-Phase |
Output:
|
Output Volt Amp Capacity (VA) |
2600 |
||||||
|
Output kVA Capacity (kVA) |
2.2 |
||||||
|
Output Watt Capacity (Watts) |
2100VA |
||||||
|
Output kW Capacity (kW) |
1.92 |
||||||
|
Power Factor |
0.87 |
||||||
|
Nominal Voltage Details |
120v nominal output in battery mode |
||||||
|
Frequency Compatibility |
60 Hz |
||||||
|
Output Voltage Regulation (Line Mode) |
14%, +6% |
||||||
|
Output Voltage Regulation (Battery Mode) |
+/- 5% |
||||||
|
Load Management Receptacles |
Two switchable single-outlet 5-15R load banks |
||||||
|
Output Circuit Breakers |
15A breaker protects 5-15R, 20A breaker protects 5-15/20R, L5-20R is unbreakered |
||||||
|
Output AC Waveform (AC Mode) |
Sine wave |
||||||
|
Output AC Waveform (Battery Mode) |
Pure Sine wave |
||||||
|
Nominal Output Voltage(s) Supported |
110V; 115V; 120V |
||||||
|
Output Receptacles |
|
||||||
|
Individually Controllable Load Banks |
Yes |
Battery:
|
Full Load Runtime (min.) |
4.6 min. (1920w) |
|
Half Load Runtime (min.) |
12.9 min. (960w) |
|
Expandable Battery Runtime |
Extended runtime supported via optional external battery packs |
|
External Battery Pack Compatibility |
BP48V24-2U Â (limit 1); Â BP48V60RT-3U Â (multi-pack compatible); Â BP48V27-2US Â (multi-pack compatible) |
|
DC System Voltage (VDC) |
48 |
|
Battery Recharge Rate (Included Batteries)Â |
Less than 4.5 hours from 10% to 90% (typical, full load discharge) |
|
Internal UPS Replacement Battery Cartridge |
RBC94-2U |
|
Battery Access |
Front panel battery access door |
|
Battery Replacement Description |
Hot-swappable, user replaceable batteries |
|
Expandable Runtime |
Yes |
Voltage Regulation:
|
Voltage Regulation Description |
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145 |
|
Overvoltage Correction |
Input voltages between 127 and 147 are reduced by 12% |
|
Undervoltage Correction |
Input voltages between 95 and 104 are boosted by 12% |
|
Severe Undervoltage Correction |
Input voltages between 83 and 94 are boosted by 24% |
User Interface, Alerts & Controls:
|
Front Panel LCD Display |
Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options) |
|
Switches |
3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions |
|
Alarm Cancel Operation |
Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available |
|
Audible Alarm |
Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown |
Surge / Noise Suppression:
|
UPS AC Suppression Joule Rating |
570 |
|
UPS AC Suppression Response Time |
Instantaneous |
|
EMI / RFI AC Noise Suppression |
Yes |
Physical:
|
Cooling Method |
Fan
|
|
Included Mounting Accessory Description |
NONE
|
|
Installation Form Factors Supported with Included Accessories |
4 post 19 inch rackmount / 2 Post
|
|
Installation Form Factors Supported |
2 post rackmount ( 2POSTRMKITWM ); 4 post rackmount shortdepth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
|
|
Minimum Required Rack Depth with |
67
|
|
Minimum Required Rack Depth with |
26.46
|
|
Minimum Required Rack Depth |
62
|
|
Minimum Required Rack Depth |
24.46
|
|
Optional Mounting Accessory Notes |
Optional  2-9USTAND  enables upright tower UPS placement;  2POSTRMKITWM  enables wall-mount and 2-post rackmount installation;  4POSTRAILKITWM  enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm);  UPSHDEARKIT  enables installation in 2 or 4-post racks using front vertical rails only, without rear support
|
|
Primary Form Factor |
Rackmount
|
|
Primary UPS Depth (mm) |
494
|
|
Primary UPS Height (mm) |
88 |
|
Primary UPS Width (mm) |
440 |
|
Rack Height |
2U |
|
Shipping Dimensions (hwd / cm) |
22.86 x 61.21 x 55.88 |
|
Shipping Dimensions (hwd / in.) |
9.00 x 24.10 x 22.00Â |
|
Shipping Weight (kg) |
36.79 |
|
Shipping Weight (lbs.) |
81.10 |
|
UPS Housing Material |
Steel |
|
UPS Power Module Dimensions (hwd, cm) |
8.79 x 43.99 x 49.43 |
|
UPS Power Module Dimensions (hwd, in.) |
3.46 x 17.32 x 19.46 |
|
UPS Power Module Weight (kg) |
29.03 |
|
UPS Power Module Weight (lbs.) |
64Â |
Â
Environmental:
|
Operating Temperature Range |
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
|
|
Storage Temperature Range |
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
|
Relative Humidity |
0 to 95%, non-condensing |
|
AC Mode BTU / Hr. (Full Load) |
250 |
|
Battery Mode BTU / Hr. (Full Load) |
980 |
|
AC Mode Efficiency Rating (100% Load) |
96% |
|
Audible Noise |
45 dBA maximum, front side 1m |
Communications:
|
Network Management Cards |
SNMPWEBCARD ; Â TLNETCARD ; Â WEBCARDLX ; Â RELAYIOCARD -Â Optional |
|
Network Monitoring Port Description |
Supports detailed monitoring of UPS and site power conditions |
|
PowerAlert Software |
For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
|
WatchDog Compatibility |
Supports Watchdog application, OS and hard-reboot restart options for remote applications |
|
Communications Interface |
DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled) |
