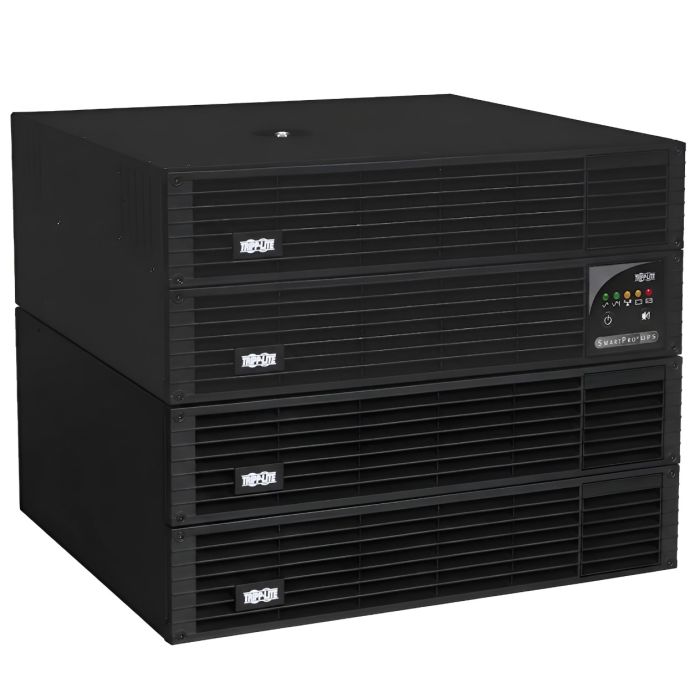

Main image Click to view image in fullscreen Tripp Lite SmartPro 3000VA 2880W RM 4U 120V 30A SMART3000CRMXL + BP48V48RT4U - Refurbished

Tripp Lite SmartPro 3000VA 2880W RM 4U 120V 30A SMART3000CRMXL + BP48V48RT4U - Refurbished

Tripp Lite SmartPro 3000VA 2880W RM 4U 120V + (1) BP48V48RT4U
Model: SMART3000CRMXL + (1) BP48V48RT4U
Input: NEMA L5-30P / Hardwire, 120V AC, single-phase 30A (24A de-rated continuous)
Output: (8) NEMA 5-15/20R, (1) NEMA L5-30R
Line-Interactive UPS - Pure Sinewave Output
Automatic Voltage Regulation (AVR)
Expandable runtime with external battery pack support
New Batteries, Refurbished UPS & External Battery Cabinet
1 Year Full Replacement Warranty Included

Extended Warranty

1 Year Included

2 Year + CAD $379.50

3 Year + CAD $664.12

In stock

Quantity

Upgrades

APC 4 Post Rackmount rail kit for APC Smart-UPS and APC Smart-UPS RT UPS models

APC SU032A Smart-UPS & Smart-UPS RT 4 POST RACKMOUNT RAIL KIT

CAD $109.99

Manufacturer: Tripp Lite
Combo Model: Tripp Lite SmartPro 3000VA 2880W RM 4U 120V (w/ 1 BP48V48RT4U)
Condition: New batteries, refurbished UPS & External Battery Pack
Part Number: SMART3000CRMXL (UPS) + BP48V48RT4U (48V External Battery Pack)

Maximum output: 2880W / 3000VA
Typical backup time at half load:19 minutes (1440 Watts)
Typical backup time at full load: 7.5 minutes (2880 Watts)

Typical Backup Time with 1 EBM (BP48V48RT4U installed):
• 1440W (50% load): ~60 to 75 minutes
• 2880W (100% load): ~25 to 35 minutes
Warranty: 1 year full replacement warranty

The Tripp Lite SMART3000CRMXL is a 3000VA / 2880W line-interactive UPS designed for rackmount installation (4U), delivering reliable power protection with pure sine wave output for critical IT equipment. It operates at 120V with a NEMA L5-30P input and features multiple output options, including 8 NEMA 5-15/20R and 1 NEMA L5-30R, providing flexible connectivity. This UPS offers voltage regulation, battery backup, and protection against power disturbances, making it ideal for servers, networking equipment, and data center applications. For extended runtime, it can be paired with the BP48V48RT4U external battery pack, a 4U rackmount battery cabinet designed to significantly increase backup duration. Both units are refurbished with new batteries and include a 1-year warranty, offering a cost-effective and reliable power solution for enterprise environments.

Tripp Lite SmartPro 3000VA 2880W RM 120V SMART3000CRMXL Manual

SMART3000CRMXL - Tripp Lite SmartPro 3000VA Specifications:

Input:

Rated input current (Maximum Load)

24A (L5-30P input), 30A (hardwire)

Nominal Input Voltage(s) Supported

120V AC

UPS Input Connection Type

NEMA L5-20P
Hardwire

UPS Input Cord Length (ft.)

UPS Input Cord Length (m)

3.1

Recommended Electrical Service

120V 30A

Voltage Compatibility (VAC)

120V

Input Phase

Single-Phase

Output:

Output Volt Amp Capacity (VA)

3000

Output Capacity (kVA)

3.00

Output Watt Capacity (Watts)

2880

Output kW Capacity (kW)

2.88

Output Capacity Details

Maximum output increases to 3600W when used with hardwire input

Power Factor

.96

Nominal Voltage Details

120v nominal output in battery mode

Frequency Compatibility

60 Hz

Output Voltage Regulation (Line Mode)

-18%, +8%

Output Voltage Regulation (Battery Mode)

+/- 5%

Load Management Receptacles

Three switchable single-outlet 5-15/20R load banks

Output Circuit Breakers

20A (x2) - each 20A breaker protects 4 5-15/20R outlets / 30A breaker protects L5-30R

Output AC Waveform (Battery Mode)

Pure Sine wave

Nominal Output Voltage(s) Supported

110V; 115V; 120V

Output Receptacles

(8) NEMA 5-15/20R
(1) NEMA L5-30R

Individually Controllable Load Banks

Yes

Battery:

Battery Type	Valve Regulated Lead Acid (VRLA)
Full Load Runtime (min.)	7.5 min. (2880w)
Half Load Runtime (min.)	19 min. (1440w)
Expandable Battery Runtime	Extended runtime supported via optional external battery packs
Expandable Runtime	Yes
External Battery Pack Compatibility	BP48V24-2U (limit 1); BP48V48RT4U (multi-pack compatible); BP48V27- 2US (multi-pack compatible)
DC System Voltage (VDC)	48
Battery Recharge Rate (Included Batteries)	Less than 7.2 hours from 10% to 90% (typical, full load discharge)
Battery Access	Battery access door allows hot swap battery replacement without powering connected equipment off
Internal UPS Replacement Battery Cartridge	RBC94-2U (quantity 2)
Battery Replacement Description	Hot-swappable, user replaceable batteries

Voltage Regulation:

Voltage Regulation Description	Automatic Voltage Regulation (AVR) circuits maintain clean, regulated computer-grade 120V nominal output, without using battery power, during brownouts to 83V and overvoltages to 145V
Overvoltage Correction	Input voltages between 127 and 145V AC are reduced by 12%
Undervoltage Correction	Input voltages between 96 and 108 are boosted by 12%
Severe Undervoltage Correction	Input voltages between 83 and 95 are boosted by 24%

User Interface, Alerts & Controls:

Switches	Yes, includes 2 front panel mounted push-button switches for system enable, self-test and alarm cancel functions. Back panel includes battery charge level switch for internal or external battery configurations
Audible Alarm	3 function audible alarm indicates power failure conditions (4 short beeps every 10 seconds), overload (continuous short beeps) and low battery (continuous tone)
LED Indicators	5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Surge / Noise Suppression:

UPS AC Suppression Joule Rating	570
UPS AC Suppression Response Time	Instantaneous
EMI / RFI AC Noise Suppression	Yes

Physical:

Primary Form Factor	Rackmount
Cooling Method	Fan
Included Mounting Accessory Description	Included 2POSTRMKITWM mounting accessory enables 2-post rackmount installation
Installation Form Factors Supported with Included Accessories	2 post 19 inch rackmount
Installation Form Factors Supported with Optional Accessories	4 post rackmount full-depth ( 4POSTRAILKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2- 9USTAND )
Minimum Required Rack Depth with External Battery Pack (cm)	64
Minimum Required Rack Depth with External Battery Pack (in.)	25
Minimum Required Rack Depth without External Battery Pack (cm)	58
Minimum Required Rack Depth without External Battery Pack (in.)	22.8
Optional Mounting Accessory Notes	Optional 2-9USTAND enables upright tower UPS placement; 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm)
Primary UPS Depth (mm)	452
Primary UPS Height (mm)	175
Primary UPS Width (mm)	439
Rack Height	4U
UPS Housing Material	Steel
UPS Power Module Dimensions (hwd, cm)	17.50 x 43.94 x 45.21
UPS Power Module Dimensions (hwd, in.)	6.89 x 17.30 x 17.80
UPS Power Module Weight (kg)	46.27
UPS Power Module Weight (lbs.)	102

Environmental:

Operating Temperature Range	+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range	+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity	0-95%, non-condensing
AC Mode BTU / Hr. (Full Load)	539
Battery Mode BTU / Hr. (Full Load)	2159
Audible Noise	45 dBA maximum, front side 1m

Communications:

Network Management Cards	SNMPWEBCARD; WEBCARDLX ; RELAYIOCARD
PowerAlert Software	For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at https://www.tripplite.com/poweralert
Communications Cable	USB and DB9 cabling included
WatchDog Compatibility	Includes RJ11 EPO (emergency power off) port and interconnection cable
SNMP Compatibility	Compatible with Tripp Lite UPS management card options WEBCARDLX , SNMPWEBCARD and RELAYIOCARD
Network Management Card Description	Network management card optional
Communications Interface	DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)

BP48V48RT4U - Tripp Lite External Battery Pack Specifications:
