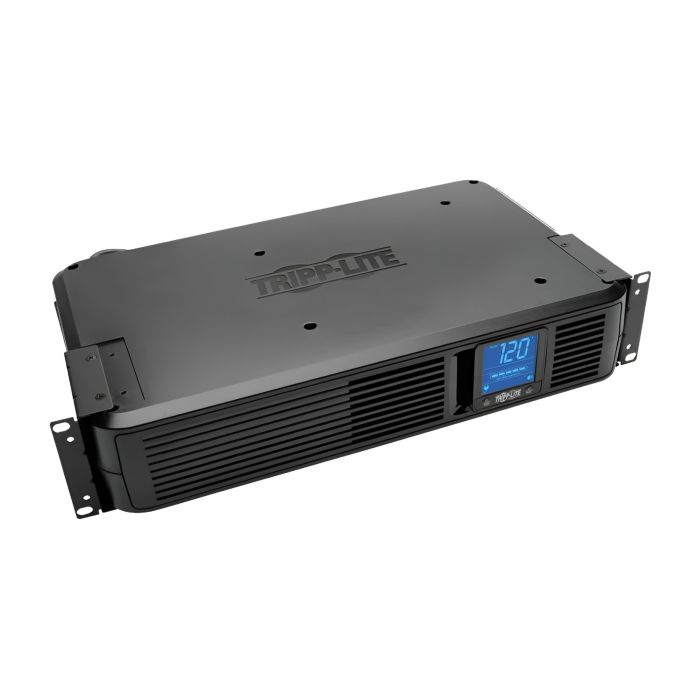

Tripp Lite SmartPro LCD 1500VA 900W RM 2U 120V Output:(8)5-15R SMART1500LCDXL - Refurbished
Tripp Lite SmartPro LCD 1500VA 900W RM 2U
Model: SMART1500LCDXL
Input: NEMA 5-15P (120V - 15A)
Output: (8) NEMA 5-15R
Line-Interactive UPS - Sine wave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $344.99
Back Order
Manufacturer: Tripp Lite
Model: Tripp Lite SmartPro UPS LCD 1500VA 900W, RM, 2U, 120V
Condition: New batteries, refurbished UPS
Part Number: SMART1500LCDXL
Maximum output: 900W / 1500VA
Typical backup time at half load: 12 minutes (450 Watts)
Typical backup time at full load: 4 minutes (900 Watts)
Warranty: 1 year full replacement warranty
Tripp Lite SmartPro LCD 1500VA 900W RM 2U 120V SMART1500LCDXL - User Manual
SMART1500LCDXL - Tripp Lite SmartPro LCD 1500VA Specifications:
Input:
|
Rated input current (Maximum Load) |
8.6A |
||
|
Nominal Input Voltage(s) Supported |
110V AC; 115V AC; 120V AC |
||
|
UPS Input Connection Type |
|
||
|
Input Circuit Breakers |
10A |
||
|
UPS Input Cord Length (ft.) |
6 |
||
|
UPS Input Cord Length (m) |
1.8 |
||
|
Recommended Electrical Service |
15A 120V |
||
|
Input Phase |
Single-Phase |
Output:
|
Output Volt Amp Capacity (VA) |
1500 |
||
|
Output kVA Capacity (kVA) |
1.5 |
||
|
Output Watt Capacity (Watts) |
900 |
||
|
Power Factor |
0.8 |
||
|
Nominal Voltage Details |
115v nominal output in battery mode |
||
|
Frequency Compatibility |
60 Hz |
||
|
Output Voltage Regulation (Line Mode) |
-18%, +8% |
||
|
Output Voltage Regulation (Battery Mode) |
+/- 5% |
||
|
UPS Output Receptacles (Surge Suppression Only) |
5 UPS outlets, 5 surge-only outlets |
||
|
Load Management Receptacles |
Two switchable single-outlet 5-15R load banks |
||
|
Output AC Waveform (AC Mode) |
Sine wave |
||
|
Output AC Waveform (Battery Mode) |
PWM sine wave |
||
|
Nominal Output Voltage(s) Supported |
110V; 115V; 120V |
||
|
Output Receptacles |
|
||
|
Individually Controllable Load Banks |
No |
Battery:
|
Battery Type |
Valve Regulated Lead Acid (VRLA) |
|
Full Load Runtime (min.) |
4 min. (900w) |
|
Half Load Runtime (min.) |
12 min. (450w) |
|
Expandable Battery Runtime |
Extended runtime supported via optional external battery pack (limit 1) |
|
External Battery Pack Compatibility |
BP24V15RT2UÂ (limit 1) |
|
DC System Voltage (VDC) |
24 |
|
Battery Recharge Rate (Included Batteries)Â |
Less than 4.5 hours from 10% to 90% |
|
Battery Access |
Battery access door enables hot-swappable, user replaceable internal battery |
|
Expandable Runtime |
Yes |
Voltage Regulation:
|
Voltage Regulation Description |
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147 |
|
Overvoltage Correction |
Input voltages between 128 and 147 are reduced by 12% |
|
Undervoltage Correction |
Input voltages between 93 and 107 are boosted by 14% |
|
Severe Undervoltage Correction |
Input voltages between 75 and 92 are boosted by 30% |
User Interface, Alerts & Controls:
|
Front Panel LCD Display |
LCD interface reports Input Voltage, Output Voltage, Battery Charge Percentage, Estimated Runtime in Minutes, Load Percentage, Load Watts; Additional LCD icons report battery charge level (5 "bars"), Line Power Mode, Battery Mode, Replace Battery and Auto-Voltage Regulation / AVR status; LCD interface control options include Alarm Disable, Display Scrolling, Initiate Self-test, LCD brightness, External Battery setting and line sensitivity |
|
Switches |
2 Switches control off/on power status and alarm-cancel/self-test operation |
|
Alarm Cancel Operation |
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate lowbattery status |
|
Audible Alarm |
Audible alarm indicates power-failure and low-battery conditions; Alarm can be permanently silenced via LCD interface |
Surge / Noise Suppression:
|
UPS AC Suppression Joule Rating |
1038 |
|
UPS AC Suppression Response Time |
Instantaneous |
|
UPS Dataline Suppression |
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet |
|
EMI / RFI AC Noise Suppression |
Yes |
Physical:
|
Cooling Method |
Fan
|
|
Primary Form Factor |
Rackmount
|
|
Included Mounting Accessory Description |
No rail kits included. Can use a 2 post or a 4 post rail kit. Sold separately.
|
|
Installation Form Factors Supported with Included Accessories |
No rail kits included. Can use a 2 post or a 4 post rail kit. Sold separately.
|
|
Minimum Required Rack Depth (cm) |
34.29
|
|
Minimum Required Rack Depth (inches) |
13.5
|
|
Primary UPS Depth (mm) |
267 |
|
Primary UPS Height (mm) |
89 |
|
Primary UPS Width (mm) |
439 |
|
Rack Height |
2U |
|
Shipping Dimensions (hwd / in.) |
7.40 x 15.00 x 21.20 |
|
Shipping Weight (kg) |
15.06 |
|
Shipping Weight (lbs.) |
33.20 |
|
UPS Housing Material |
Polycarbonate |
|
UPS Power Module Dimensions (hwd, cm) |
8.89 x 43.94 x 26.67 |
|
UPS Power Module Dimensions (hwd, in.) |
3.5 x 17.3 x 10.5 |
|
UPS Power Module Weight (kg) |
13.34 |
|
UPS Power Module Weight (lbs.) |
29.4 |
Â
Environmental:
|
Operating Temperature Range |
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
|
|
Storage Temperature Range |
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
|
Relative Humidity |
Up to 95%, non-condensing |
|
AC Mode BTU / Hr. (Full Load) |
78 |
|
Battery Mode BTU / Hr. (Full Load) |
721 |
|
AC Mode Efficiency Rating (100% Load) |
97% |
Communications:
|
Network Monitoring Port Description |
Supports detailed monitoring of UPS and site power conditions; DB9 port also supports contact-closure messaging for power-fail (pins 1 & 9) and power-restored (pins 1, 8) |
|
PowerAlert Software |
For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at https://www.tripplite.com/poweralert |
|
Communications Cable |
USB and DB9 Serial cabling included |
|
WatchDog Compatibility |
Supports Watchdog application, OS and hard-reboot restart options for remote applications |
|
Communications Interface |
Contact closure; DB9 Serial; USB (HID enabled) |
