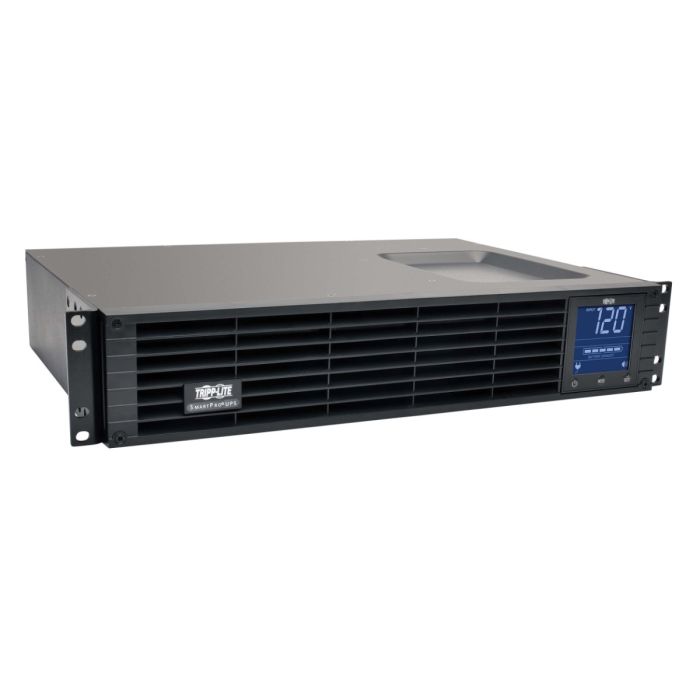

Tripp Lite Smart Pro UPS 1000VA 700W RM 2U 120V Output:(6)5-15R, SMC10002URM - Refurbished

Output Volt Amp Capacity (VA)

1000

Output kVA Capacity (kVA)

1.0

Output Watt Capacity (Watts)

700

Output kW Capacity (kW)

0.7

Nominal Voltage Details

120V nominal output in battery mode

Frequency Compatibility

60 Hz

Output Voltage Regulation (Line Mode)

-21%, +8%

Output Voltage Regulation (Battery Mode)

+/- 5%

Output AC Waveform (AC Mode)

Sine wave

Output AC Waveform (Battery Mode)

Pure Sine wave

Nominal Output Voltage(s) Supported

110V; 115V; 120V

Output Receptacles

(6) NEMA 5-15R

Individually Controllable Load Banks

No

Rated Input Current (Maximum Load)

12A

Nominal Input Voltage(s) Supported

120V AC

UPS Input Connection Type

NEMA 5-15P

Input Circuit Breakers

15A

UPS Input Cord Length (ft.)

10

UPS Input Cord Length (m)

3.1

Recommended Electrical Service

15A 120V

Input Phase

Single-Phase

Full Load Runtime (min.)

5.5 min. (700W)

Half Load Runtime (min.)

16 min. (350W)

DC System Voltage (VDC)

36

Battery Recharge Rate (Included Batteries)

Less than 4 hours from 10% to 90% (typical full load discharge)

Internal UPS Replacement Battery Cartridge

RBC93-2U

Battery Access

Front panel battery access door

Battery Replacement Description

Hot-swappable, user replaceable batteries

Expandable Runtime

No

Voltage Regulation Description

Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83V to 147V

Overvoltage Correction

Input voltages between 128V and 147V are reduced by 12%

Undervoltage Correction

Input voltages between 83V and 107V are boosted by 14%

Front Panel LCD Display

Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function, and a variety of additional options

Switches

3 pushbutton switches control OFF/ON power status, MODE selection, and MUTE/ENTER control functions

Alarm Cancel Operation

Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available

Audible Alarm

Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault, and remote shutdown conditions

UPS AC Suppression Joule Rating

570

UPS AC Suppression Response Time

Instantaneous

EMI / RFI AC Noise Suppression

Yes

Cooling Method

Fan

Installation Form Factors Supported with Included Accessories

2-post 19-inch rackmount; 4-post 19-inch rackmount

Installation Form Factors Supported with Optional Accessories

4-post rackmount full-depth (4POSTRAILKIT); Tower (2-9USTAND); Wallmount (2POSTRMKITWM)

Minimum Required Rack Depth (cm)

41.78

Minimum Required Rack Depth (inches)

16.45

Primary Form Factor

Rackmount

Primary UPS Depth (mm)

342

Primary UPS Height (mm)

88

Primary UPS Width (mm)

439

Rack Height

2U

UPS Housing Material

Steel

UPS Power Module Dimensions (hwd, cm)

8.76 x 43.94 x 34.16

UPS Power Module Dimensions (hwd, in.)

3.45 x 17.3 x 13.45

UPS Power Module Weight (kg)

21.09

UPS Power Module Weight (lbs.)

46.5

Network Monitoring Port Description

Supports detailed monitoring of UPS and site power conditions

PowerAlert Software

For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software from www.tripplite.com/poweralert

Communications Cable

USB cabling included

WatchDog Compatibility

Supports Watchdog application, OS, and hard-reboot restart options for remote applications

Network UPS Tools Compatibility

NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at Network UPS Tools Compatibility List

Communications Interface

DB9 Serial; EPO (emergency power off); USB

Transfer Time

5 milliseconds (AC to battery), 1 millisecond (Battery to AC)

Low Voltage Transfer to Battery Power (Setpoint)

83V

High Voltage Transfer to Battery Power (Setpoint)

147V

Grounding Lug

Back panel grounding lug

Cold Start (Startup in Battery Mode During a Power Failure)

Cold-start operation supported

High Availability UPS Features

Hot-swappable batteries
