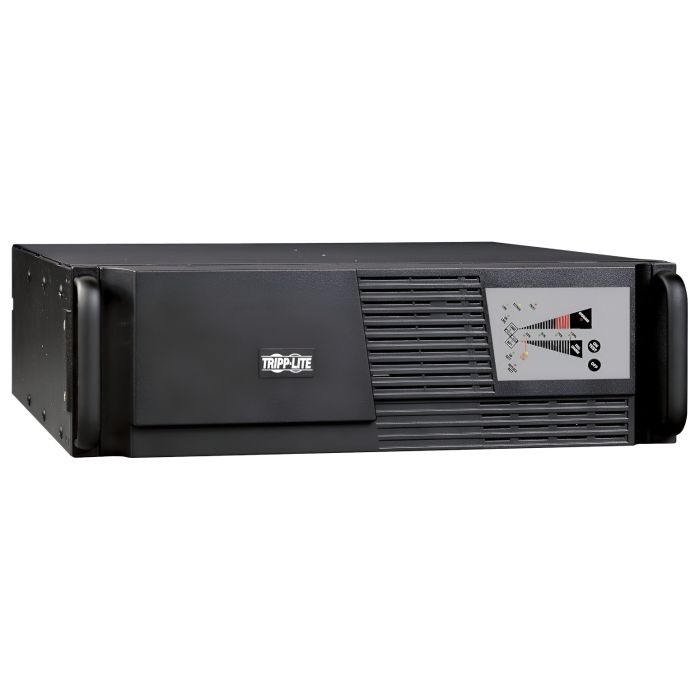

Tripp Lite SmartOnline 3000VA 2400W Double-Conversion UPS 240V SU3000RTXL3UHV -Refurbished

Rated input current (Maximum Load)

14.9A (200V), 14.3A (208V), 13.1A (220V), 12.1A (240V)

Nominal Input Voltage(s) Supported

200V AC; 208V AC; 220V AC; 240V AC

UPS Input Connection Type

Recommended Electrical Service

20A

Input Phase

Single-Phase

Input Cord Length (ft.)

10

Input Cord Length (m)

3.1

Output Volt Amp Capacity (VA)

3000

Output kVA Capacity (kVA)

3

Output Watt Capacity (Watts)

2400

Output kW Capacity (kW)

2.4

Power Factor

0.8

Crest Factor

3:1

Nominal Voltage Details

208V default

Frequency Compatibility

50 / 60 Hz

Frequency Compatibility Details

Output frequency matches input nominal on startup, defaults to 60 Hz on cold-start.

Output Voltage Regulation (Line Mode)

+/- 2%

Output Voltage Regulation (Economy Line Mode)

+/- 10%

Output Voltage Regulation (Battery Mode)

+/- 2%

Load Management Receptacles

Two switchable 6-15/20R load banks (bank 1 - two outlets, bank 2 - four outlets)

Output AC Waveform (AC Mode)

Pure Sine wave

Output AC Waveform (Battery Mode)

Pure Sine wave

Output Capacity Details

OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150%
load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and
frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE
bypass limits)

Nominal Output Voltage(s) Supported

200V; 208V; 220V; 240V

Output Receptacles

Individually Controllable Load Banks

 Yes

Full Load Runtime (min.)

5 min. (2400w)

Half Load Runtime (min.)

14 min. (1200w)

Expandable Battery Runtime

Supports extended runtime with optional external battery packs

External Battery Pack Compatibility

BP72V15-2U  (limit 1);  BP72V18-2US  (multi-pack compatible);  BP72V28RT-3U  (multi-pack compatible)

DC System Voltage (VDC)

72

Battery Recharge Rate (Included Batteries)

Less than 6 hours from 10% to 80% (typical, full load discharge)

Internal UPS Replacement Battery
Cartridge

RBC96-3U

Battery Access

Front panel battery access door

Battery Replacement Description

Hot-swappable, user replaceable batteries

Expandable Runtime

Yes

Voltage Regulation Description

Online, double-conversion power conditioning

Overvoltage Correction

Maintains output during overvoltages to 275

Undervoltage Correction

Maintains output during undervoltages to 160V AC

Severe Undervoltage Correction

At load levels less than 70%, UPS maintains output during undervoltages to 130V AC

Switches

2 Switches control off/on power status and alarm-cancel/self-test operation

Alarm Cancel Operation

Power-fail alarm can be silenced using alarm-cancel switch

Audible Alarm

Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown
conditions

LED Indicators

14 LEDs indicate line power, online mode, bypass mode, on-battery, overload, battery low, replace battery and fault
status information; 4-LED meter displays load and battery charge levels; LED panel rotates for viewing in rack/tower
formats

UPS AC Suppression Joule Rating

2670

EMI / RFI AC Noise Suppression

Yes

AC Suppression Response Time

Instantaneous

UPS Dataline Suppression

1 line TEL/DSL or Ethernet

Cooling Method

Included Mounting Accessory
Description

Installation Form Factors Supported
with Optional Accessories

Minimum Required Rack Depth with
External Battery Pack (cm)

Minimum Required Rack Depth with
External Battery Pack (in.)

Minimum Required Rack Depth
without External Battery Pack (cm)

Primary Form Factor

Primary UPS Depth (mm)

Primary UPS Height (mm)

133

Primary UPS Width (mm)

445

Rack Height

3U

UPS Housing Material

Steel

UPS Power Module Dimensions (hwd, cm)

13.34 x 44.45 x 53.34

UPS Power Module Dimensions (hwd, in.)

5.25 x 17.5 x 21

UPS Power Module Weight (kg)

33.97

UPS Power Module Weight (lbs.)

74.9

Operating Temperature Range

Storage Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.

Relative Humidity

0 to 95%, non-condensing

AC Mode BTU / Hr. (Full Load)

1117

Battery Mode BTU / Hr. (Full Load)

1224

AC Economy Mode Efficiency Rating (100% Load)

88%

Network Management Cards

 SNMPWEBCARD;  TLNETCARD ; WEBCARDLX;  MODBUSCARD ;  RELAYIOCARD . Optional

Network Monitoring Port Description

Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure
communications; Economy-mode setting option is available using PowerAlert software and DB9 Serial cable
connection OR via select Network Management Card options

PowerAlert Software

For local monitoring via the UPS’s built-in communication ports, download PowerAlert software at
https://tripplite.eaton.com/products/power-alert

Communications Cable

DB9 cabling included

WatchDog Compatibility

Supports Watchdog application, OS and hard-reboot restart options for remote applications

Communications Interface

Contact closure; DB9 Serial; Slot for SNMP/Web interface
