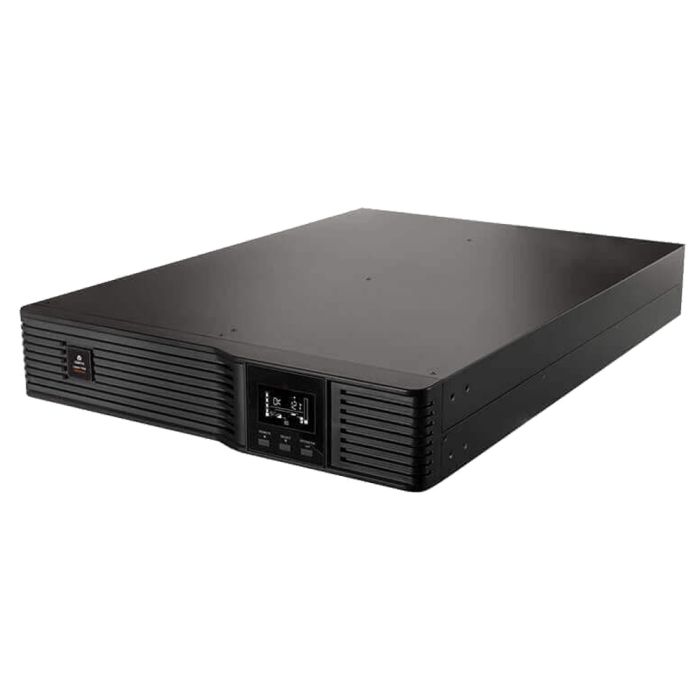

Main image Click to view image in fullscreen Refurbished Liebert PSI5 1500VA 1350W RM 2U 120V PSI5-1500RT120LI

Liebert

Liebert PSI5 1500VA 1350W RM 2U 120V PSI5-1500RT120LI - Refurbished

Liebert PSI5 1500VA 1350W RM 2U 120V
Model: PSI5-1500RT120LI
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included

Additional Warranty

1 Year Included

2 Year + CAD $276.00

3 Year + CAD $483.00

In stock

Quantity

Manufacturer: Liebert
Model: Vertiv Liebert PSI5 1500VA 1350W , Lithium-Ion, RM 2U, 120V
Condition: New batteries, refurbished UPS
Part Number: PSI5-1500RT120LI
Maximum output: 1350W / 1500VA
Typical backup time at half load: 17.7 minutes (675 Watts)
Typical backup time at full load: 7.5 minutes (1350 Watts)
Warranty: 1 year full replacement warranty

Liebert PSI5 1500VA 1350W RM 2U PSI5-1500RT120LI User's Manual

PSI5-1500RT120LI - Liebert PSI5 1500VA Specifications:

Input:

Voltage Input Range (with
battery operation)

0 to 150 VAC

Voltage Input Range
(without battery operation)

75 to 146 VAC

Input Voltage Measurement Tolerance

Frequency Input Range

55 to 65 Hz (57 to 63 Hz Battery to Normal comeback)

Internal Rear Panel lnput Breaker

16 A

Input Surge Protection

ANSI C62.41 Category A, Level 3 1372J

Input Power Cord

3 m

Input Connection Type

NEMA 5-15P

Output:

Output Connection Type

(3) NEMA 5-15R Non-Programmable
(3) NEMA 5-15R Programmable

Output Voltages
(on battery)

100 / 110/ 115 / 120 / 125 VAC (±1.5 on battery before alarm) user selectable
(120 VAC is factory default)

Output Frequency (on battery)

60 (default) / 50 Hz ±1%

Transfer Time

Adjustable with User Setting 09
ST1: 4-6 ms typical, 10 ms max. (default).
ST2: 6-8 ms typical, 11 ms max.
ST3: 8-10 ms typical, 13 ms max.

Waveform

Sine wave

Output Overload Operation

100% — Alarm warning
110% — Alarm warning and shutdown after 10 seconds
120% — Alarm warning and immediate shutdown

Protection

Electronic (overcurrent, short circuit w/ latching shutdown)

AC Mode Efficiency

97%

Buck and Boost Mode
Efficiency

94%

Recharge Time (typical)

2 hours to recover to
100%

Batteries and Runtime:

Type	Lithium-Ion (LiFePO4)
Recharge Time (from full discharge)	2hrs to 90%

Environmental:

Operating Temperature, °F (°C)	32° to 104° (0° to 40°)
Storage Temperature, °F (°C )	5° to 120° (-15° to 50°)
Relative Humidity	20% – 90%, non-condensing
Operating Altitude, ft (m)	0 to 9,942 (0 to 3,000) without derating. Operating temperature reduced 9°F (5 °C) for each additional 1,640ft (500m) of altitude
Audible Noise	< 45 dB @ line mode, < 55 dB @ battery mode

Physical:

Maximum Height	3.4 inches (86 mm)
Maximum Width	17.2 inches (438 mm)
Maximum Depth	16.2 inches (411 mm)
Net weight	28 lbs. (12.9 kg)
Rack Height	2U

Agency:

Safety	UL 1642 (LiFe cells), UL 1973 (LiFe pack), UL 1778, CSA 22.2 no. 107.3
Agency	UL 1778, c-UL, NOM, FCC Part 15, Class B
Environmental	RoHS2 / REACH / WEEE
Network Surge	ANSI C62.41, Category A, Level 3
Transportation	ISTA Procedure 2A UN 38.3 (Lithium-ion)

Liebert PSI5 1500VA 1350W RM 2U 120V PSI5-1500RT120LI - Refurbished
