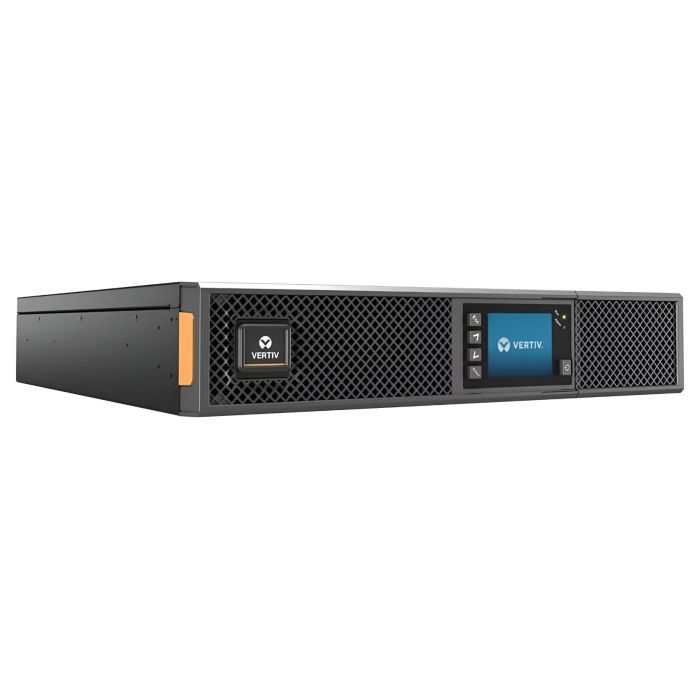

Vertiv Liebert GXT5-2000LVRT2UXLN 2kVA - RDU101 UPS Online Double-Conversion - Refurbished
Vertiv Liebert GXT5 2000VA 1800W RM 2U 120V, RDU101 IntelliSlot Communications Card Pre-Installed
Model: GXT5-2000LVRT2UXLN
Input: NEMA L5-20P (120V - 20A)
Output: (1) NEMA L5-20R, (6) NEMA 5-20R
Double-Conversion Online UPS - Pure Sine Wave Output
New batteries, refurbished UPS
1 Year Warranty Included
CAD $1,379.99
In stock
Manufacturer: Vertiv / Liebert
Model: Vertiv Liebert GXT5 2000VA 1800W RM 2U 120V – Online Double-Conversion UPS (with RDU101 Network Card)
Condition: New batteries, refurbished UPS
Part Number: GXT5-2000LVRT2UXLN
Maximum Output: 1800W / 2000VA
Typical Backup Time at Half Load: 12.3 minutes (900 Watts)
Typical Backup Time at Full Load: 4 minutes (1800 Watts)
Warranty: 1-Year Full Replacement Warranty
Description: The Vertiv Liebert GXT5-2000LVRT2UXLN is a 2000VA / 1800W online double-conversion UPS designed for critical IT systems, delivering clean pure sine wave power with zero transfer time. It includes (1) NEMA L5-20R and (6) NEMA 5-20R output connections in a 2U rackmount form factor. Equipped with the pre-installed Vertiv Liebert IntelliSlot RDU101 Card network management card, it supports remote monitoring via SNMP and HTTPS, email notifications, event logging, and environmental monitoring capabilities. This refurbished unit includes new batteries and a 1-year full replacement warranty.
Â
Â
Vertiv Liebert GXT5 2000VA 1800W RM 2U 120V - User Manual
GXT5-2000LVRT2UXLN - Liebert UPS 2000VA / 1800W Specifications:
Â
Â
Input:
|
Input Voltage Range |
Typical 120V Range: 60–150V |
|
Input Voltage Range |
40–70Hz; Auto Sensing |
|
Input Power Cord |
10 ft. attached with NEMA L5-20P plug |
Â
Output:
| Output Receptacles | (1) NEMA L5-20R |
| Â | (6) NEMA 5-20R |
| Typical 120V User Selectable Output | 110/115/120VAC (user-configurable); ±3% |
| Waveform |
Pure Sine Wave |
| Utility (AC) Mode Overload |
>200% for 250ms |
|
 |
150–200% for 2 seconds |
|
 |
125–150% for 50 seconds |
|
 |
105–125% for 60 seconds |
Â
Â
Â
Battery:Â
| Battery Type | Valve-regulated, non-spillable, lead acid |
| Backup Time (100% Load) | 4 Minutes |
| Backup Time (50% Load) | 12.3 Minutes |
| +1 External Battery Cabinet (100% Load) |
22 Minutes |
| +1 External Battery Cabinet (50% Load) |
53.6 Minutes |
|
 |
 |
Â
Environmental Requirements:
| Operating Temperature, °F (°C) | +32 to +104 (0 to 40) |
| Storage Temperature, °F (°C) | -4 to +140 (-20 to 60) |
| Relative Humidity | 0% to 95%, non-condensing |
| Operating Elevation | 10,000 ft. (3,000m) |
| Storage Elevation | 50,000 ft. (15,000m) |
| Audible Noise | <48dBA at 3 ft. (1m) |
Â
Â
Communications & Management:
| Control Interface | LCD graphical display with keypad + secure web interface (HTTPS) via RDU101 |
| Front Panel | Color LCD for real-time UPS status, load %, battery level, alarms, and configuration |
| Remote Monitoring | Full remote monitoring via embedded RDU101 network card |
| Network Interface | 10/100 Mbps Ethernet (RJ-45) via RDU101 |
| Communication Ports | USB, RS-232, 1× RJ-45 Ethernet, 1× RJ-45 One-Wire |
| Communication Slot |
 IntelliSlot (occupied by RDU101 card) |
| Supported Protocols |
SNMP v1/v2c/v3, Modbus TCP/IP, HTTP/HTTPS, SMTP |
| Web Access |
Secure HTTPS access (Chrome, Firefox, Safari, Edge compatible) |
| Remote Shutdown |
Supported via network graceful shutdown software |
| Software Integration |
Vertiv Power Insight, Trellis Enterprise, LIFE Services |
| Alarm Notifications |
Email and SMS alerts |
| Alarm Types |
Power failure, low battery, overload, temperature, system faults |
| Notifications |
SNMP traps, email alerts, SMS (gateway dependent) |
| Environmental Monitoring |
Supported via Liebert SN sensors |
| Sensor Interface |
One-Wire port (RJ-45) for environmental sensors |
| Data Logging | Event logs, alarm history, power conditions, environmental data |
| Firmware Upgrade | Remote firmware/configuration updates |
| Security | HTTPS encryption, SNMPv3, certificate support |
| Authentication |
RADIUS, TACACS+, LDAP/Active Directory, Kerberos |
| User Access Control |
Role-based multi-user access control |
| File Transfer |
High-speed firmware/config uploads |
| Emergency Power Off (EPO) |
Supported |
| Â |
 |
Â
Â
Â
Agency:Â
| Surge Immunity | Surge Immunity |
| Transportation | Transportation |
| Safety | Safety |
| Emissions | Emissions |
| Environmental Compliance | Environmental Compliance |
