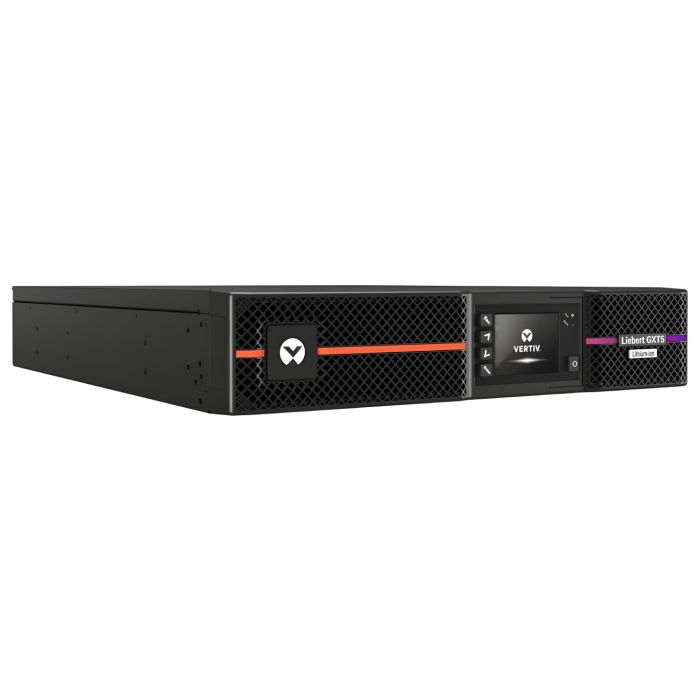

Main image Click to view image in fullscreen Vertiv Liebert GXT5LI-3000LVRT2UXL Lithium-Ion UPS 3000VA/2700W Double-Conversion Online - Refurbished

Vertiv Liebert GXT5LI-3000LVRT2UXL Lithium-Ion UPS 3000VA/2700W Double-Conversion Online - Refurbished

Vertiv Liebert Lithium-Ion UPS 3000VA/2700W 120V 30A, GXT5LI-3000LVRT2UXL - Refurbished

Vertiv Liebert GXT5 3000VA 2700W RM 2U 120V 30A

Model: GXT5LI-3000LVRT2UXL
Input: NEMA L5-20P 30A - 120V
Output: (1) L5-30R 30A, (6) 5-20R 20A
Online, Double-Conversion UPS - Sine wave Output
New Batteries, Refurbished UPS
1 Year Warranty Included

Extended Warranty

1 Year Included

2 Year + CAD $437.00

3 Year + CAD $764.75

Back Order

Quantity

Manufacturer: Liebert
Model: Liebert GXT5LI 3000VA 2700W, RM, 2U, 120V
Condition: Lithium‑Ion Batteries, Refurbished UPS
Part Number: GXT5LI-3000LVRT2UXL
Maximum output: 2700W / 3000VA
Warranty: 1 Year Full Replacement Warranty
Includes: (1) GXT5LI-3000LVRT2UXL UPS - No additional accessories are included

Liebert GXT5 Lithium‑Ion 3000VA/2700W RM 2U GXT5LI‑3000LVRT2UXL – User’s Manual

GXT5LI-3000LVRT2UXL - Liebert GXT5 3000VA 2700W Specifications:

Output:

Output Power Capacity

2700W / 3000VA

Typical 120V User Selectable Output

100 / 110 / 115 / 120 / 125 VAC (user-configurable); ±3%

Waveform Type

Sine wave

Output Connections

(4) NEMA 5-15/20R (programmable)
(2) NEMA 5-20R
(1) NEMA L5-30R

Utility (AC) Mode Overload

>150% for 250ms (shuts down immediately)
125–150% for 60 seconds
105–125% for 10 minutes

Input:

Range

Typical 120V
Range: 60-150V

Frequency

40-70Hz; Auto Sensing

Input Power Connection

NEMA L5-20P

Batteries and Runtime:

Type	Lithium-ion, hot-swappable, maintenance-free
Backup Time (100% Load)	13 minutes
Backup Time (50% Load)	28 minutes
+1 External Battery Cabinet (100% Load)	Extends runtime depending on EBC model
+1 External Battery Cabinet (50% Load)	Extends runtime significantly depending on EBC model

Environmental:

Operating Temperature °F(°C)	32 to 104°F (0 to 40°C)
Storage Temperature°F(°C)	-4 to 140°F (-20 to 60°C)
Audible Noise	<45 dBA max @ 3 ft. (1m)
Relative Humidity	0% to 95%, non-condensing
Operating Elevation	Up to 10,000 ft. (3,000m)
Storage Elevation	Up to 50,000 ft. (15,000m)

Agency:

Safety	UL 1778, UL 1973, UL 1642, CSA 22.2
Emissions	FCC Part 15 (Class A) CISPR22 Class A
Environmental	RoHS2, WEEE, REACH
Surge Immunity	ANSI C62.41 Category B
Transportation	ISTA Procedure 1A

Communications and Management:

Interface port	USB, RS-232, Dry Contact, IntelliSlot
Available Slot Interface Quantity	1
IntelliSlot Card	IntelliSlot™ RDU101 Communications Card - Optional

Physical:

Maximum Height	3.4 inches (85 mm)
Maximum Width	16.9 inches (430 mm)
Maximum Depth	18.5 inches (470 mm)
Net weight	39.7 lbs. (18.0 kg)
