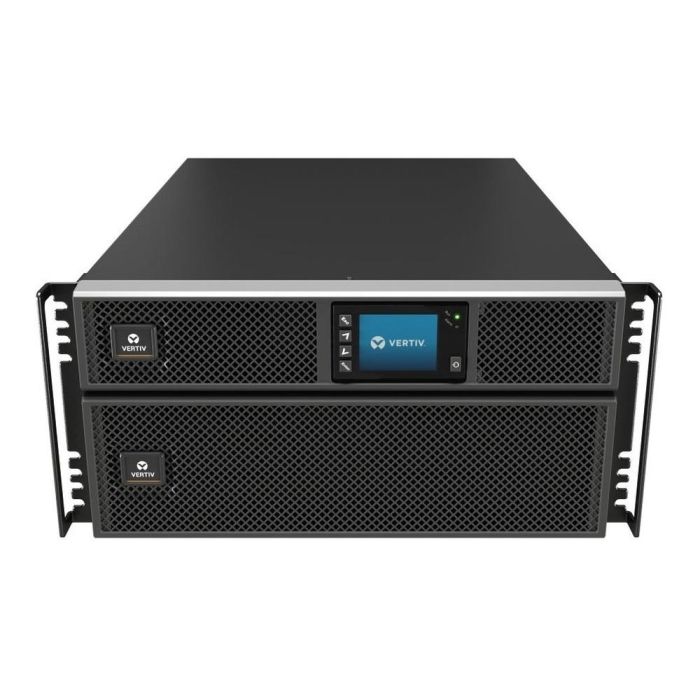

Vertiv Liebert GXT5 10000VA 10kW RM/Tower 5U 208/240V 70A GXT5-10KHVRT5UXLN - Refurbished

Power Rating

10,000VA / 10,000W

Input Voltage

Typical: 208VAC / Range: 176-288VAC - L1-L2-G

Output Voltage

200/208/220/230/240 VAC (user-configurable)

Efficiency

Up to 98% Active ECO Mode; up to 95% on-line mode

Wiring

Hardwired in/out + Output: 2 x L6-20R, 2 x L6-30R

Operating Temperature

+32 to +104 °F (0 to 40 °C)

Dimensions (inch/mm)

16.9 × 24.8 × 8.5 (430 × 630 × 217)

Weight (lbs/kg)

75.5 (166.4)

Operating Frequency, Nominal

50 or 60 Hz
(factory-default is 60 Hz)

Factory-default VAC

208 VAC

User-configurable VAC

200/208/220/230/240 VAC
(Adjustable using operation/display configuration options)

Operating voltage range without battery operation

176 – 288 VAC (100 – 176VAC with power derating)

Maximum Allowable VAC

288 VAC

Input Frequency without Battery Operation

40 – 70 Hz

Voltage Range

176 – 288 VAC (100 – 176 VAC
with power derating)

User configurable: 200/208/220/230/240 VAC

Input Power

PD5-CE10HDWRMBSU

AC-AC Efficiency

95%

Factory-default VAC Frequency

208 VAC, 60 Hz

Output Receptacles

Waveform

Sinewave

Output Voltage

208 VAC Nominal
(Adjustable to 200/220/230/240 VAC)

Utility (AC) Mode Overload

>150% minimum 200 mS,
125 – 150% for 60 seconds;
105 – 125% for for 5 minutes;
≤ 105% continuous

Interface Options

Factory pre-installed Vertiv™ RDU101 SNMP/Webcard, USB, RS485, RS232, terminal block, external battery connector

Protocols

SNMP and web management enabled with factory pre-installed Vertiv RDU101 communications card; serial connection for out-of-band management

Control Panel

Full-color graphic LCD with gravity sensing orientation, provides insight to UPS status for easy installation, configuration and operation

Charger Current, A

2.25 A default, maximum 8 A

Type

Valve-regulated, non-spillable, lead acid

Quantity x Voltage x Rating

16 x 12V x 9.0AH

Upper-limit selections

+10%, +15%, +20%; default +10%

Lower-limit selections

-10%, -15%, -20%; default -15%

Backup Time (100% Load)

2 Minutes

Backup Time (50% Load)

7 Minutes

+1 External Battery Cabinet (100% Load)

7 Minutes

+1 External Battery Cabinet
(50% Load)

19 Minutes

Disable-bypass operation

When the input frequency prevents synchronous operation

Operating Temperature, °F (°C)

32 to 104 (0 to 40) (no derating)

Storage Temperature, °F (°C )

+5 to +104 (-15 to 40)

Relative Humidity

0% to 95%, non-condensing

Operating Elevation

Up to 10,000 ft (3,000 m) at 77°F
(25°C) without derating

Audible Noise

<55 dBA,at 1 meter from the front,
<50 dBA, at 1 meter from rear
or sides

Safety

IEC62040-1:2008 version,
GS mark;
UL1778, c-UL listed

EMI/EMC/C-Tick EMC

IEC/EN/AS 62040-2 2nd
Ed (Cat 2 – Table 6);
FCC Part 15 (Class A)
CISPR22 Class A (RFI)

ESD

IEC/EN EN61000-4-2
Level 4, Criteria A

Radiated Susceptibility

IEC/EN EN61000-4-3
Level 3, Criteria A

Electrical Fast Transient

IEC/EN EN61000-4-4
Level 4, Criteria A

Surge Immunity

IEC/EN EN61000-4-5
Level 4, Criteria A;
ANSI C62.41 Category B

Transportation

ISTA Procedure 1E

Emissions

FCC Part 15 (Class A)

Listings

ENERGY STAR® 2.0 certified, UL1778, c-UL listed, RoHS2, REACH

Topology

On-line double conversion UPS; flexible rack/tower form factor
