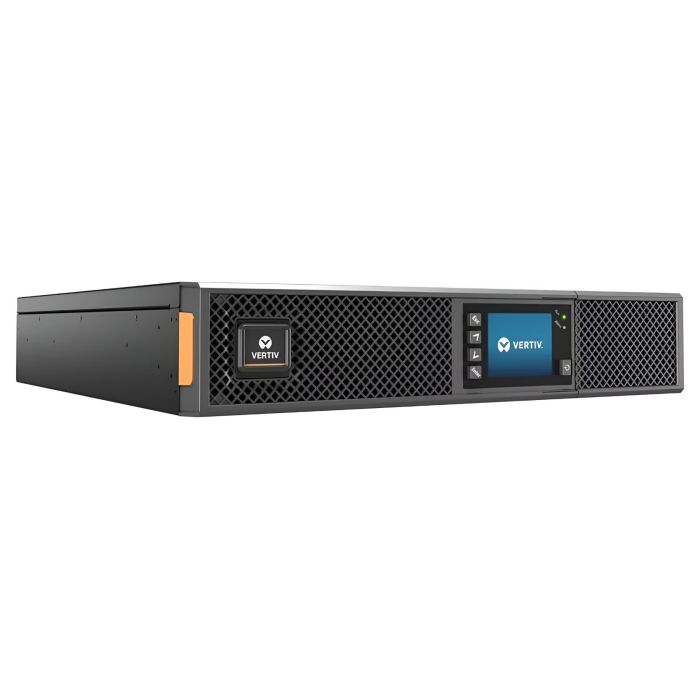

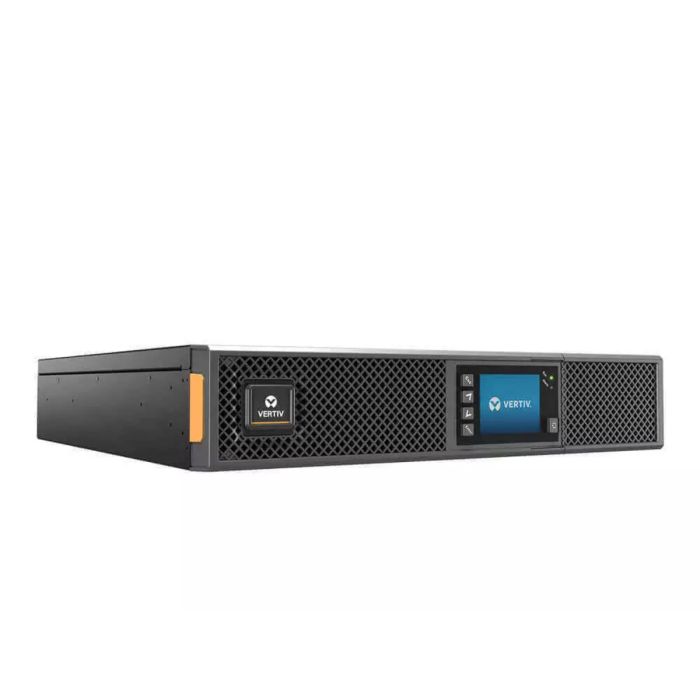

Vertiv Liebert GXT5 1500VA 1350W RM 2U 120V GXT5-1500LVRT2UXL - Refurbished

Dimensions (inch/mm)

16.9 x 18.5 x 3.4 (430 x 470 x 85)

Weight (lbs/kg)

46.2 (21)

Range

Typical 120V
Range: 60-150V

Frequency

40-70Hz; Auto Sensing

Input Power Cord

10 ft. attached w/
NEMA 5-15P A plug

Output Receptacles

Typical 120V
User selectable output

110/115/120VAC
(user-configurable); ±3%

Waveform

Sine wave

Utility (AC) Mode Overload

>200% for 250ms;
150- 200% for 2 seconds;
125- 150% for 50 seconds;
105-125% for 60 seconds

Type

Valve-regulated, non-spillable, lead acid

Backup Time (100% Load)

6.7

Backup Time (50% Load)

18.8

+1 External Battery Cabinet
(100% Load)

32.4

+1 External Battery Cabinet
(50% Load)

79.7

Operating Temperature, °F (°C)

+32 to +104 (0 to 40)

Storage Temperature, °F (°C )

-4 to +140 (-20 to 60)
contain batteries will be
from -15 to 40°C

Relative Humidity

0% to 95%, non-condensing

Operating Elevation

10,000 ft. (3,000m)

Storage Elevation

50,000 ft. (15,000m)

Audible Noise

< 46dBA at 3 ft. (1m) front and side
< 45dBA at 3 ft. (1m) rear

Surge Immunity

ANSI C62.41 Category B

Transportation

ISTA Procedure 1A

Safety

UL 1778 4th Edition and CSA
22.2 No 107.3

Emissions

FCC Part 15 (Class A) -
CISPR22 Class A (RFI)

Environmental

WEEE and ROHS2 REACH
