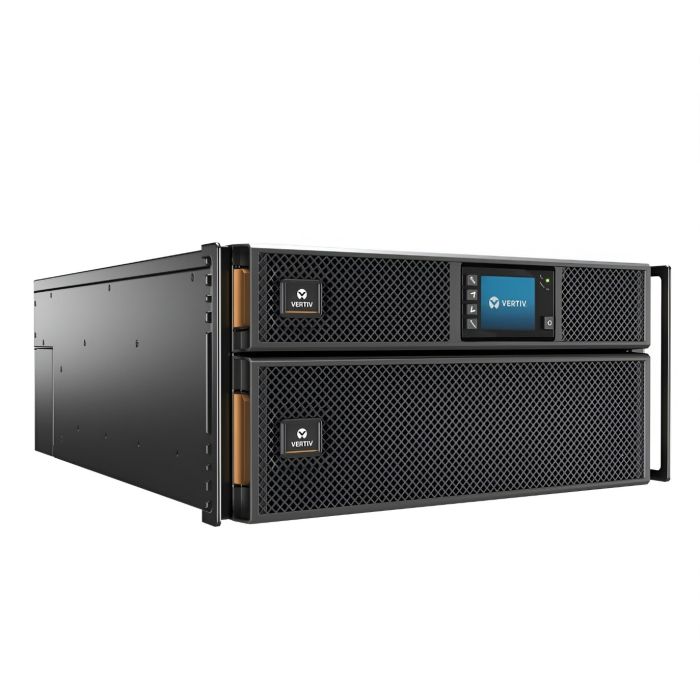

Main image Click to view image in fullscreen Vertiv Liebert GXT5 5000VA 5000W RM/Tower 5U 208V/240V GXT5-5000HVRT5UXLN - Refurbished

Vertiv Liebert GXT5 5000VA 5000W RM/Tower 5U 208/240V 50A GXT5-5000HVRT5UXLN - Refurbished

Vertiv GXT5 5kVA 5kW RM/Tower 5U 208V 50A
Model: GXT5-5000HVRT5UXLN
Input: Hardwire (208V/240V) - L1-L2-G
Output: (2) L6-20R, (2) L6-30R, Hardwire
Online, Double-Conversion UPS - Sine wave Output
New batteries, refurbished UPS
1 Year Warranty Included

Extended Warranty

1 Year Included

2 Year + CAD $575.00

3 Year + CAD $1,006.25

In stock

Quantity

Manufacturer: Vertiv
Model: Vertiv Liebert GXT5 5000VA 5000W RM/Tower 5U 208V/240V - Online Double Conversion UPS
Condition: New batteries, refurbished UPS
Part Number: GXT5-5000HVRT5UXLN
Maximum output: 5000W / 5000VA
Typical backup timeat half load: 18.5 minutes (2500 Watts)
Typical backup time at full load: 7 minutes (5000 Watts)
Warranty: 1 year full replacement warranty
Included: UPS, preinstalled RDU101 NIC, rack ears, rail kit, tower stand (feet), USB cable

Vertiv GXT5 5000VA 5000W GXT5-5000HVRT5UXLN User's Manual

GXT5-5000HVRT5UXLN - Vertiv UPS 5000VA / 5000W Specifications:

Overview:

Power Rating	5,000VA / 5,000W
Input Voltage	Typical: 208VAC / Range: 176-288VAC - L1-L2-G
Output Voltage	200/208/220/230/240 VAC (user-configurable)
Efficiency	Up to 98% Active ECO Mode; up to 95% on-line mode
Wiring	Hardwired in/out + Output: 2 x L6-20R, 2 x L6-30R

Operational Conditions:

Operating Temperature

+32 to +104 °F (0 to 40 °C)

Physical:

Dimensions (inch/mm)	16.9 × 24.8 × 8.5 (430 × 630 × 217)
Weight (lbs/kg)	156.7 (71.1)

Input AC:

Operating Frequency, Nominal	50 or 60 Hz (factory-default is 50 Hz)
Factory-default VAC	208 VAC - L1-L2-G
User-configurable VAC	200/208/220/230/240 VAC (Adjustable using operation/display configuration options)
Operating voltage range without battery operation	176 – 288 VAC (100 – 176VAC with power derating)
Maximum Allowable VAC	288 VAC
Input Frequency without Battery Operation	40 – 70 Hz
Voltage Range	176 – 288 VAC (100 – 176 VAC with power derating) Configurable: 200/208/220/230/240 VAC (user-configurable/display configuration options)
Input Power Connection	PD5-CE6HDWRMBSU

Output AC:

Output Receptacles

(2) NEMA L6-20R
(2) NEMA L6-30R

Output Power Connection

PD5-CE6HDWRMBSU

AC-AC Efficiency

94%

Factory-default VAC Frequency

208 VAC, 60 Hz

Output Voltage

208 VAC Nominal
(Adjustable to 200/220/230/240 VAC)

Waveform

Sinewave

Normal Mode Overload

>150% minimum 200 mS
125 – 150% for 60 seconds
105 – 125% for 5 minutes
≤105% continuous

Interfaces / Ports:

Interface Options	Factory pre-installed Vertiv™ RDU101 SNMP/Webcard, USB, RS485, RS232, terminal block, external battery connector
Protocols	SNMP and web management enabled with factory pre-installed Vertiv RDU101 communications card; serial connection for out-of-band management
Control Panel	Full-color graphic LCD with gravity sensing orientation, provides insight to UPS status for easy installation, configuration and operation

Internal Battery Charger:

Charger Current, A

2.25A default, maximum 5A

Battery Parameters:

Type	Valve-regulated, non-spillable, lead acid
Quantity x Voltage x Rating	16 x 12V x 9.0AH
Upper-limit selections	+10%, +15%, +20%; default +10%.
Lower-limit selections	-10%, -15%, -20%; default -15%
Disable-bypass operation	-10%, -15%, -20%; default -15%
Backup Time (100% Load)	7.0 Minutes
Backup Time (50% Load)	18.5 Minutes
+1 External Battery Cabinet (100% Load)	19.0 Minutes
+1 External Battery Cabinet (50% Load)	48.0 Minutes

Environmental:

Operating Temperature, °F (°C)	+32 to +104 (0 to 40) (no derating)
Storage Temperature, °F (°C )	+5 to +104 (-15 to 40)
Relative Humidity	0 to 95%, non-condensing
Operating Elevation	Up to 10,000 ft (3,000 m) at 77°F (25°C) without derating
Audible Noise	<55 dBA,at 1 meter from the front, <50 dBA, at 1 meter from rear or sides

Agency:

Safety	IEC62040-1:2008 version GS mark UL1778, c-UL listed
EMI/EMC/C-Tick EMC	IEC/EN/AS 62040-2 2nd Ed (Cat 2 – Table 6); FCC Part 15 (Class A) CISPR22 Class A (RFI)
ESD	IEC/EN EN61000-4-2 Level 4, Criteria A
Radiated Susceptibility	IEC/EN EN61000-4-3 Level 3, Criteria A
Electrical Fast Transient	IEC/EN EN61000-4-4 Level 4, Criteria A
Surge Immunity	IEEE/ANSI C62.41 Category A & B
Transportation	ISTA Procedure 1E
Emissions	FCC Part 15 (Class A)

Miscellaneous:

Listings	ENERGY STAR® 2.0 certified, UL1778, c-UL listed, RoHS2, REACH
Topology	On-line double conversion UPS; flexible rack/tower form factor
