FREE

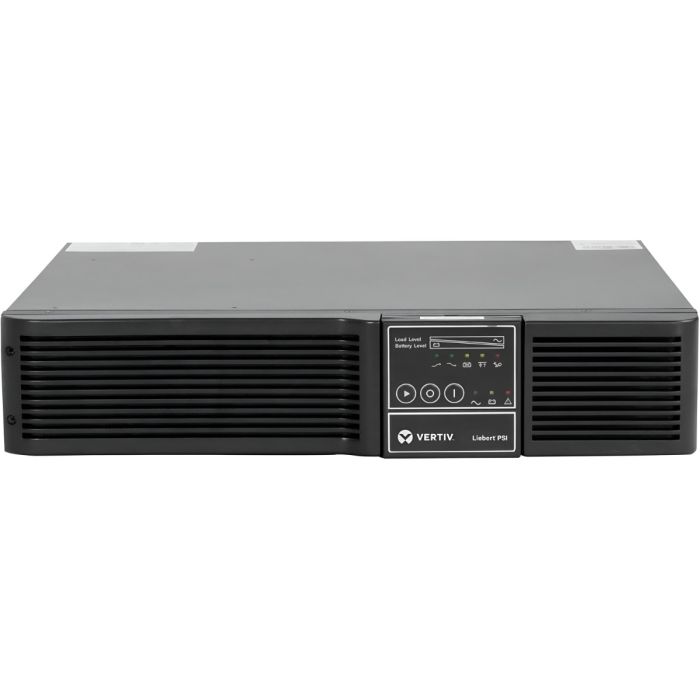

Vertiv Liebert PSI-XR UPS 3000VA / 2700W RM 2U 120V 30A PS3000RT3-120XR – Refurbished
Vertiv Liebert PSI-XR 3000VA / 2700W RM 2U 120V 30A
Model: PS3000RT3-120XR
Input: NEMA L5-30P (120V – 30A)
Output: (4) NEMA 5-15R, (2) NEMA 5-20R T-Slot, (1) NEMA L5-30R
Line-Interactive UPS – Sinewave Output
New batteries, Refurbished UPS
1-Year Warranty Included
CAD $977.49
In stock
Manufacturer: Vertiv
Model: Vertiv Liebert PSI-XR 3000VA / 2700W RM, 2U, 30A 120V
Condition: New Batteries, Refurbished UPS
Part Number: PS3000RT3-120XR
Maximum Output: 2700W / 3000VA
Typical Backup Time at Half Load: 13 minutes (≈1350 Watts)
Typical Backup Time at Full Load: 5 minutes (2700 Watts)
Warranty: 1-year full replacement warranty
Vertiv Liebert PSI-XR 3000VA 2700W RM 2U 120V – User’s Manual
PS3000RT3-120XR – Vertiv UPS 3000VA / 2700W Specifications
Physical:
|
Dimensions (inch/mm) |
17.3 x 27.6 x 3.5 (440 x 700.5 x 88) |
|
Weight (Lb/kg) |
105 (48) |
Input AC Parameters:
|
Surge Protection |
570J |
|
Voltage Range Without Battery Operation |
83 to 159 VAC (configurable) |
|
Frequency Range |
45~65Hz, (0.5Hz) |
|
Input Power Cord, 10ft (3m) Attached |
(1) NEMA L5-30P |
|
Output Receptacles |
(4) NEMA 5-15R |
|
(2) NEMA 5-20R T-Slot |
|
|
(1) NEMA L5-30R |
|
|
Voltage (Normal Mode) |
110/120/127 VAC (configurable) |
|
Voltage (Battery Mode) |
110/120/127 VAC; 5% before low-battery warning |
|
Transfer Time |
4–6 ms typical |
|
Battery Waveform |
Sinewave |
Battery Parameters:
|
Type |
Valve-regulated, non-spillable, lead acid |
|
Recharge Time |
5 hours to 90% of rated capacity, after full discharge into resistive load |
Battery Backup Time:
|
Full Load |
5 minutes |
|
Half Load |
>10 minutes; 13 minutes typical |
Environmental:
|
Operating Temperature |
32°F to 104°F (0°C to 40°C) |
|
Storage Temperature |
5°F to 104°F (-15°C to 40°C) |
|
Relative Humidity |
0% to 90%, non-condensing |
|
Operating Altitude |
Up to 10,000 ft (3000m) at 95°F (35°C) without derating |
|
Audible Noise |
<40 dBA (fan Off), <45 dBA (fan On) |
Communications & Management:
|
Interface Port(s) |
USB Port |
|
RS232 (DB-9) Port |
|
|
Liebert IntelliSlot® Port |
|
|
RJ-45 Data Line Protection Ports |
|
|
Control Panel |
Multifunction LED display panel, 90° rotatable |
|
Audible Alarm |
Audible and visual alarms prioritized by severity |
|
Emergency Power Off (EPO) |
Yes |
|
Available IntelliSlot™ Interface Quantity |
1 |
Agency:
|
Safety |
UL 1778, c-UL Listed |
|
Emissions |
FCC Part 15, Class A |
|
Network Surge |
UL 497 B |
|
Transportation |
ISTA Procedure 1A Certification |
