Description
Details
Manufacturer: Vertiv

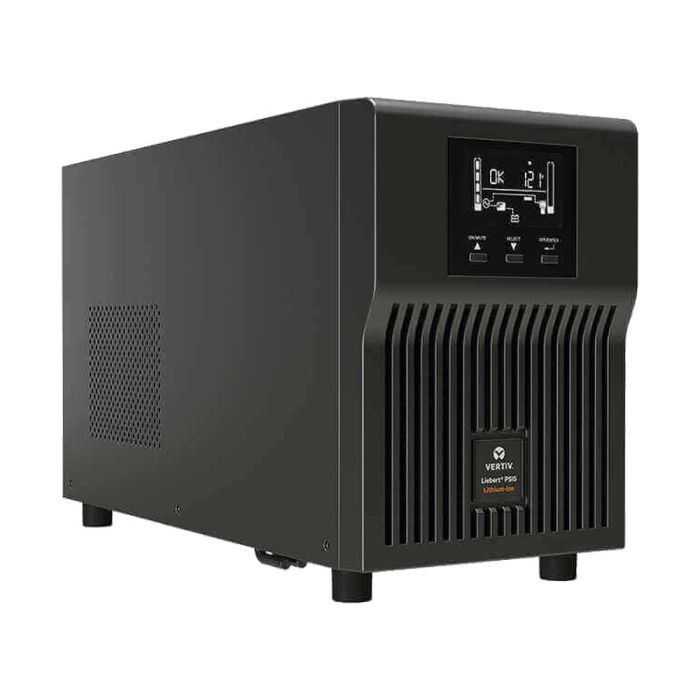

Model: Vertiv Liebert PSI 1500VA 1350W Tower, 15A 120V
Condition: New batteries, refurbished UPS
Part Number: PSI5-1500MT120LI
Maximum output: 1350W / 1500VA
Typical backup timeat half load: 17.7 minutes (675 Watts)
Typical backup time at full load: 7.5 minutes (1350 Watts)
Warranty: 1 year full replacement warranty
Vertiv Liebert PSI 1500VA 1350W Tower 120V PSI5-1500MT120LI User's Manual
PSI5-1500MT120LI - Liebert PSI 1500VA Specifications:
Physical:
Dimensions (inch/mm) |
6.3 x 15.6 x 8.7 |
Weight (Lb/kg) |
27.9 (12.7) |
Input AC Parameters:
Surge Protection |
1372J |
||||
Voltage Range Without |
83 to 159 VAC (configurable) |
||||
Frequency Range |
45~65Hz, (0.5Hz) |
||||
Input Power Cord, (90deg type) |
|
||||
Input Cord |
6ft (1.8m) Atttached |
||||
Output Receptacles |
|
||||
Nominal Voltage Setting |
120VAC Default; 100/110/115/125VAC User Selectable |
||||
Voltage Range Without Battery Operation |
75 - 146VAC |
||||
Frequency Range |
55~65Hz (57~63Hz Battery to Normal Comeback) |
||||
Surge Protection |
ANSI C62.41, Category A, Level 3 |
||||
Transfer Time |
4 - 6ms Typical |
||||
Battery Waveform |
Pure Sine Wave |
Battery Parameters:
Type |
Lithium-Ion (LiFePO4) |
Recharge Time (from full discharge) |
2hrs to 90% |
Battery Backup Time:
Full Load |
7.5 min |
Half Load |
17.7 min |
Environmental:
Operating Temperature |
32°F to 104°F (0°C to 40°C) |
Storage Temperature |
5° to 120° (-15° to 50°) |
Relative Humidity |
20% – 90%, non-condensing |
Operating Altitude, ft (m) |
0 to 9,942 (0 to 3,000) without derating. |
Audible Noise |
< 45 dB @ line mode, |
Agency:
Safety |
UL 1642 (LiFe cells), UL 1973 (LiFe pack), UL 1778, CSA 22.2 no. 107.3 |
Agency |
UL 1778, c-UL, NOM, FCC Part 15, Class B |
Environmental |
RoHS2 / REACH / WEEE |
Network Surge |
ANSI C62.41, Category A, Level 3 |
Transportation |
ISTA Procedure 2A UN 38.3 (Lithium-ion) |
Additional Info
Additional Info
Manufacturer | Vertiv |
---|---|
Form Factor | Tower |
Waveform in Battery Mode | Pure Sinewave |
Input Voltage | 120V AC |
Output (VA) | 1500VA |
Output Voltage | 120V AC |
PDU Total Outlets | No |
