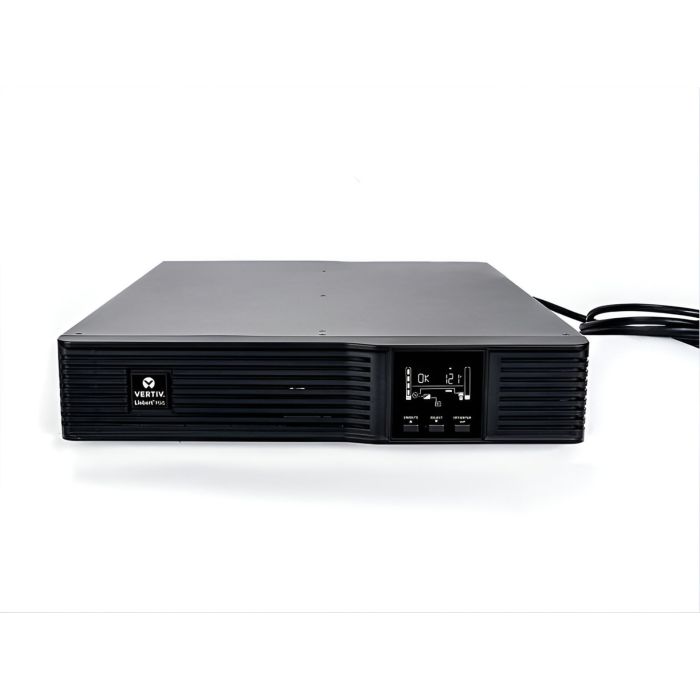

Vertiv Liebert PSI5 1500VA 1350W 120V 15A Output: (6)5-15R, PSI5-1500RT120 - Refurbished

Power Rating

1500VA / 1350W

Input Voltage

Nominal: 120VAC / Range: 75-146VAC

Output Voltage

120VAC (100/110/115/125VAC user-configurable)

Efficiency

Up to 96% (Normal Mode)

Wiring

Input: 5-15P; Output: 6 x 5-15R

125 VAC Input

1500VA, 1350W, 12A

120 VAC Input

1440VA, 1350W, 12A

115 VAC Input

1380VA, 1350W, 12A

110 VAC Input

1275VA, 1147W, 11.6A

100 VAC Input

1200VA, 1147W, 12A

Operating Temperature

Up to 40C

Unit Dimensions
W x D x H (in) (mm)

17.2 x 20.0 x 3.5
(438 x 510 x 88)

Shipping Dimensions
W x D x H (in) (mm)

10.2 x 26.5 x 22.4
(258 x 672 x 570)

Unit Weight, lb. (kg)

43.0 (19.5)

Shipping Weight, lb. (kg)

56.0 (25.4)

Voltage Input Range (with battery
operation)

0 to 150 VAC

Voltage Input Range (without battery operation)

75 to 146 VAC

Input Voltage Measurement Tolerance

±3%

Nominal Voltage Setting

100 / 110 / 115 / 120 / 125 VAC

High Line Buck to Battery

117 / 129 / 135 / 140 / 146 VAC

High Line Battery to Buck

114 / 125 / 131 / 137 / 143 VAC

High Line Normal to Buck

110 / 121 / 127 / 132 / 138 VAC

High Line Buck to Normal

107 / 118 / 123 / 128 / 134 VAC

Low Line Boost to Normal

93 / 102 / 107 / 112 / 116 VAC

Low Line Normal to Boost

90 / 99 / 104 / 108 / 113 VAC

Low Line Battery to Boost

80 / 88 / 92 / 96 / 100 VAC

Low Line Boost to Battery

75 / 83 / 86 / 90 / 94 VAC

Frequency Input Range

55 to 65 Hz (57 to 63 Hz Battery to Normal comeback)

Internal Rear Panel lnput Breaker

16A

Input Surge Protection

ANSI C62.41 Category A, Level 3
1372J

Input Power Cord, 10ft (3m) Attached

Output Voltages (on battery)

100 / 110/ 115 / 120 / 125 VAC (±1.5 on battery before alarm) user selectable (120 VAC is factory default)

Output Frequency (on battery)

60 (default)/ 50 Hz ±1%

Output Receptacles - not controllable

Output Receptacles - controllable

Transfer Time

Adjustable with User Setting
09 ST1: 4-6 ms typical, 10 ms max. (default).
ST2: 6-8 ms typical, 11 ms max.
ST3: 8-10 ms typical, 13 ms max.

Output Waveform (on battery)

Pure Sinewave

Output Overload Operation

100% — Alarm warning
110% — Alarm warning and shutdown after 10 seconds
120% — Alarm warning and immediate shutdown

Protection

Electronic (overcurrent, short circuit w/ latching shutdown)

AC Mode Efficiency

96% for 100 / 110 / 115 / 120 / 125 VAC

Buck and Boost Mode Efficiency

93% for 100 / 110 / 115 / 120/ 125 VAC

Recharge Time

6-8 hours to recover to 90%

EPO Connector

EPO capable of flexible configuration for NO or NC operation via user settings. With EPO active;
the UPS output is shut Off regardless of what mode the UPS is operating in. The UPS cannot be started
if the signals are active. When the signal is removed, the UPS output can be enabled by pressing the
ON/MUTE button.

USB Port

(1) USB Port. The USB connector a standard 4 pin Type B. The USB interface
port is always be active. The UPS can communicate system status and system shutdown via the
USB. USB
port communicates via the USBHID standard protocol.

Data Line Protection

Data line (in and out) connectors are on the rear of the UPS and provide transient voltage surge
suppression(TVSS) for Phone/Fax/DSL/Internet/Modem devices.

Intellislot Port

(1) Intellistlot Port
- No NMC included

Part Number

PSI5-1500BATKIT

Protection

Electronic (overcurrent, short circuit with latching shutdown)

Type

Valve-regulated lead-acid (VRLA) in compliance with UL 1989

Quantity x Voltage x Ah

4 x 12V x 9 Ah

Model Number

PSI5-48VBATT

Protection

Circuit Breaker

Type

Valve-regulated lead-acid (VRLA) in compliance with UL 1989

Quantity x Voltage x Ah

8 x 12V x 9.0 Ah

Unit Dimensions
W x D x H (in) (mm)

17.2 x 20 x 3.5
(438 x 510 x 88)

Shipping Dimensions
W x D x H (in) (mm)

10.2 x 26.5 x 21.7
(258 x 670 x 550)

Unit Weight, lb. (kg)

63.9 (29.0)

Shipping Weight, lb. (kg)

70.3 (31.9)

Operating Temperature, °F (°C)

32° to 104° (0° to 40°)

Operating Elevation, ft. (m)

0 to 9,942 (0 to 3,000 without derating)
Operating temperature reduced 9 °F (5 °C) for each additional 1,640ft. (500m) of altitude

Relative Humidity

20% – 90%, non-condensing

Storage Temperature °F ( °C)

5 to 122 (-15 to 50)

Storage Relative Humidity

10% to 90% non-condensing

Audible Noise

< 45 dB@line mode
< 55 dB@battery mode

Safety

UL 1778, c-UL-us Listed

Emissions

FCC Part 15, Class B

Network Surge

UL 497 B

Transportation

ISTA Procedure 1A Certification

TAA Compliant

Yes

Listings

UL 1778, c-UL-us Listed, FCC Part 15, Class B

Topology

Line-interactive (automatic voltage regulation)
