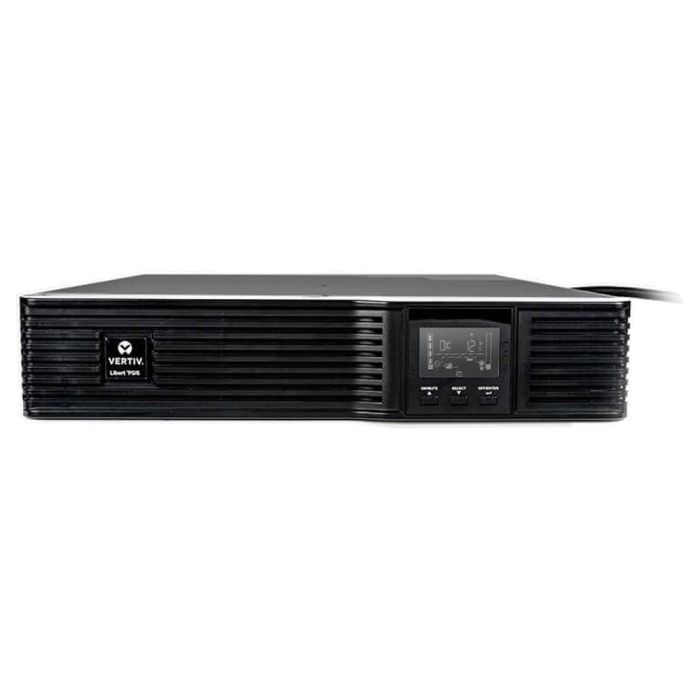

Main image Click to view image in fullscreen Refurbished Vertiv Liebert PSI5 1920VA 1920W RM 2U 120V PSI5-2200RT120

Vertiv Liebert PSI5 1920VA 1920W RM 2U 120V PSI5-2200RT120 - Refurbished

Vertiv Liebert PSI5 1920VA 1920W RM 2U 120V
Model: PSI5-2200RT120
Input: NEMA L5-20P (120V - 20A)
Output: (3) NEMA 5-15/20R, (1) NEMA L5-20R, (3) NEMA 5-20R
Line Interactive UPS - Sine wave Output
New batteries, refurbished UPS
1 Year Warranty Included

Extended Warranty

1 Year Included

2 Year + CAD $138.00

3 Year + CAD $241.50

Back Order

Quantity

Manufacturer: Vertiv
Model: Vertiv Liebert PSI5 1920VA 1920W RM 2U, 20A, 120V
Condition: New batteries, refurbished UPS
Part Number: PSI5-2200RT120
Maximum output: 1920W / 1920VA
Typical backup timeat half load: 18 minutes (960 Watts)
Typical backup time at full load: 5 minutes (1920 Watts)
Warranty: 1 year full replacement warranty
Included: UPS, rack ears, rail kit, feet (to use as a tower)

Vertiv Liebert PSI5 1920VA 1920W RM 2U PSI5-2200RT120 User's Manual

PSI5-2200RT120 - Liebert PSI5 1920VA Specifications:

Input/Output AC Parameters:

Nominal Voltage Setting

100/110/115/120(default) / 125 1920W

Voltage Range Without Battery Operation

75 to 146 VAC

Frequency Range

55~65Hz (57~63Hz Battery to Normal comeback)

Surge Protection

1372J

Input Power Cord, 10ft (3m) Attached

NEMA L5-20P std 5-20P adapter included

Output Receptacles – Not Controllable

(3) NEMA 5-15/20R
(1) NEMA L5-20R

Output Receptacles - Controllable

(3) NEMA 5-20R

Transfer Time

4-6 ms Typical

Battery Waveform

Pure Sinewave

Battery Parameters:

Type	Valve-regulated lead-acid (VRLA) in compliance with UL 1989
Recharge Time	4 hours to recover 90%

Internal Battery Run Time:

Full Load	5.0 min
Half Load	14.0 min
External Battery	PSI5-72VBATT

Physical:

Unit Dimensions W x D x H (in) (mm)	17.2 x 24.8 x 3.5 (438 x 630 x 88)
Unit Weight, lb. (kg)	59.1 (26.8)

Environmental Requirements:

Operating Temperature, °F (°C)	32° to 104° (0° to 40°)
Storage Temperature °F ( °C)	5° to 120°(-15° to 50°)
Relative Humidity	20% – 90%, non-condensing
Operating Altitude	0 to 9,942 (0 to 3,000) without derating. Operating temperature reduced 9 °F (5 °C) for each additional 1,640ft (500m) of altitude.
Audible Noise	< 45 dB@line mode < 55 dB@battery mode

Agency:

Safety	UL 1778, c-UL-us Listed
Emissions	FCC Part 15, Class B
Network Surge	UL 497 B
Transportation	ISTA Procedure 1A Certification
