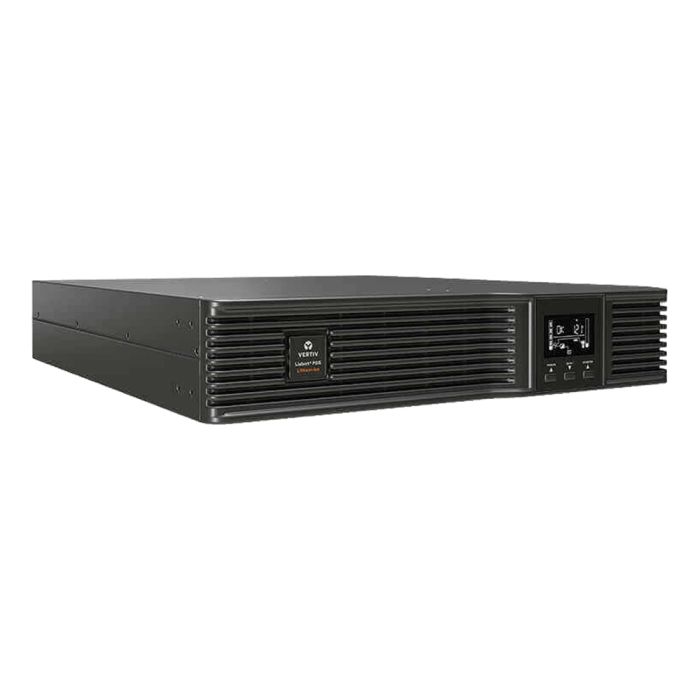

Vertiv Liebert PSI5 UPS 1920VA 1920W RM 2U 120V PSI5-2200RT120LI - Refurbished
Vertiv Liebert PSI5 1920VA 1920W RM 2U 120V
Model: PSI5-2200RT120LI
Input: NEMA L5-20P (120V - 20A)
Output: (3) NEMA 5-20R, (1) NEMA L5-20R, (3) NEMA 5-20R
Line Interactive UPS - Sine wave Output
New batteries, refurbished UPS
1 Year Warranty Included
CAD $1,724.99
Back Order
Manufacturer: Vertiv
Model: Vertiv Liebert PSI5 1920VA 1920W RM 2U, 20A, 120V
Condition: New batteries, refurbished UPS
Part Number: PSI5-2200RT120LI
Maximum output: 1920W / 1920VA
Typical backup timeat half load: 19 minutes (960 Watts)
Typical backup time at full load: 8.6 minutes (1920 Watts)
Warranty: 1 year full replacement warranty
Included: UPS, rack ears, rail kit, feet (to use as a tower)
Vertiv Liebert PSI5 1920VA 1920W RM 2U PSI5-2200RT120LI User's Manual
PSI5-2200RT120LI - Liebert PSI5 1920VA Specifications:
Input/Output AC Parameters:
|
Nominal Voltage Setting |
120VAC Default; 100/110/115/125VAC User Selectable |
||||
|
Voltage Range Without Battery Operation |
75 - 146VAC |
||||
|
Frequency Range |
55~65Hz (57~63Hz Battery to Normal Comeback) |
||||
|
Surge Protection |
ANSI C62.41, Category A, Level 3 |
||||
|
Input Plug |
|
||||
|
Input Cord |
10ft (3m) Attached |
||||
|
Non-Programmable Receptacles |
|
||||
|
Programmable Receptacles |
|
||||
|
Transfer Time |
4-6 ms Typical |
||||
|
Battery Waveform |
Pure Sinewave |
Battery Parameters:
|
Type |
Lithium-Ion (LiFePO4) |
|
Recharge Time (from full discharge) |
2hrs to 90% |
|
Full-Load Runtime |
8.6 min |
|
Half-Load Runtime |
19.0 min |
Physical:
|
Unit Dimensions |
17.2 x 20.1 x 3.4 |
|
Unit Weight, lb. (kg) |
39.5 (18.0) |
Environmental Requirements:
|
Operating Temperature, °F (°C) |
32° to 104° (0° to 40°) |
|
Storage Temperature °F ( °C) |
5° to 120°(-15° to 50°) |
|
Relative Humidity |
20% – 90%, non-condensing |
|
Operating Altitude, ft (m) |
0 to 9,942 (0 to 3,000) without derating. Operating temperature reduced 9°F (5 °C) for each additional 1,640ft (500m) of altitude |
|
Audible Noise |
< 45 dB@line mode |
Agency:
|
Safety |
UL 1642 (LiFe cells), UL 1973 (LiFe pack), UL 1778, CSA 22.2 no. 107.3 |
|
Agency |
UL 1778, c-UL, NOM, FCC Part 15, Class B |
|
Environmental |
RoHS2 / REACH / WEEE |
|
Network Surge |
ANSI C62.41, Category A, Level 3 |
|
Transportation |
ISTA Procedure 2A |
