Description
Details
Manufacturer: Vertiv

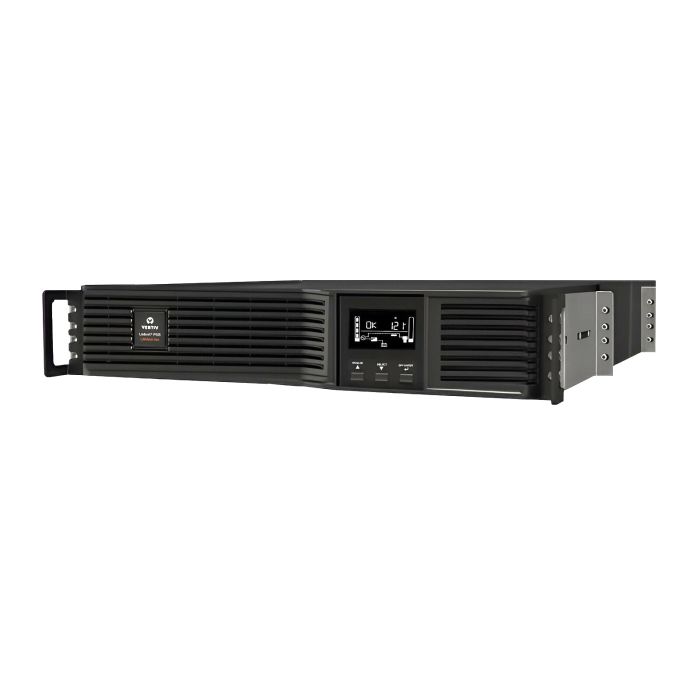

Model: Vertiv Liebert PSI5 3kVA 2.7kW RM/Tower 2U 120V - Line Interactive UPS - TAA Compliant
Condition: New batteries, refurbished UPS
Part Number: PSI5-3000RT120TAA
Maximum output: 2700W / 2880VA
Typical backup timeat half load: 16 minutes (1350 Watts)
Typical backup time at full load: 5.5 minutes (2700 Watts)
Warranty: 1 year full replacement warranty
Included: UPS, rack ears, rail kit, feet (to use as a tower)
Vertiv Liebert PSI5 2880VA 2700W RM/Tower 2U PSI5-3000RT120TAA User's Manual
PSI5-3000RT120TAA - Vertiv UPS 3000VA / 2700W Specifications:
Overview:
Power Rating |
2880VA/2700W |
Input Voltage |
120 VAC |
Output Voltage |
120 VAC |
Efficiency |
Up to 96% (Normal Mode) |
Wiring |
Input: L5-30P; Output: 6 x 5-15R, 1 x L5-30R |
Operational Conditions:
Operating Temperature |
Up to 40C |
Power Rating:
125 VAC Input |
3000VA, 2700W, 24A |
120 VAC Input |
2880VA, 2700W, 24A |
115 VAC Input |
2760VA, 2700W, 24A |
110 VAC Input |
2550VA, 2295W, 23.2A |
100 VAC Input |
2400VA, 2400W, 24A |
Physical:
Unit Dimensions |
17.2 x 24.8 x 3.5 |
Shipping Dimensions |
10.2 x 26.7 x 22.4 |
Unit Weight, lb. (kg) |
71.4 (32.4) |
Shipping Weight, lb. (kg) |
85.8 (38.9) |
Input:
Voltage Input Range (with battery operation) |
0 to 150 VAC |
||
Voltage Input Range (without battery operation) |
75 to 146 VAC |
||
Input Voltage Measurement Tolerance |
±3% |
||
Nominal Voltage Setting |
100 / 110 / 115 / 120 / 125 VAC |
||
High Line Buck to Battery |
117 / 129 / 135 / 140 / 146 VAC |
||
High Line Battery to Buck |
114 / 125 / 131 / 137 / 143 VAC |
||
High Line Normal to Buck |
110 / 121 / 127 / 132 / 138 VAC |
||
High Line Buck to Normal |
107 / 118 / 123 / 128 / 134 VAC |
||
Low Line Boost to Normal |
93 / 102 / 107 / 112 / 116 VAC |
||
Low Line Normal to Boost |
90 / 99 / 104 / 108 / 113 VAC |
||
Low Line Battery to Boost |
80 / 88 / 92 / 96 / 100 VAC |
||
Low Line Boost to Battery |
75 / 83 / 86 / 90 / 94 VAC |
||
Frequency Input Range |
55 to 65 Hz (57 to 63 Hz Battery to Normal comeback) |
||
Internal Rear Panel lnput Breaker |
30A |
||
Input Surge Protection |
ANSI C62.41 Category A, Level 3 1372J |
||
Input Power Cord |
|
Output:
Output Voltages (on battery) |
100 / 110/ 115 / 120 / 125 VAC (±1.5 on battery before alarm) user selectable (120 VAC is factory default) |
||||
Output Frequency (on battery) |
60 (default)/ 50 Hz ±1% |
||||
Output Receptacles - not controllable |
|
||||
Output Receptacles - controllable |
|
||||
Transfer Time |
Adjustable with User Setting 09 ST1: 4-6 ms typical, 10 ms max. (default). ST2: 6-8 ms typical, 11 ms max. ST3: 8-10 ms typical, 13 ms max. |
||||
Output Waveform (on battery) |
Pure Sinewave |
||||
Output Overload Operation |
100% — Alarm warning |
||||
Protection |
Electronic (overcurrent, short circuit w/ latching shutdown) |
||||
AC Mode Efficiency |
96% for 100 / 110 / 115 / 120 / 125 VAC |
||||
Buck and Boost Mode Efficiency |
93% for 100 / 110 / 115 / 120/ 125 VAC |
||||
Recharge Time |
6-8 hours to recover to 90% |
Communications:
EPO Connector |
EPO shall be capable of flexible configuration for NO or NC operation via user settings. With EPO active; |
USB Port |
The UPS will have (1) USB Interface Port. The USB connector a standard 4 pin Type B. The USB interface |
Data Line Protection |
Data line (in and out) connectors are on the rear of the UPS and provide transient voltage surge |
Intellislot Port |
The shall be equipped with the ability to provide advanced communication and monitoring options such |
Internal Battery:
Part Number |
PSI5- 3000BATKITTAA |
Protection |
Electronic (overcurrent, short circuit with latching shutdown) |
Type |
Valve-regulated lead-acid (VRLA) in compliance with UL 1989 |
Quantity x Voltage x Ah |
6 x 12V x 10 Ah |
External Battery Cabinets:
Model Number |
PSI5-72VBATTTAA |
Protection |
Circuit Breaker |
Type |
Valve-regulated lead-acid (VRLA) in compliance with UL 1989 |
Quantity x Voltage x Ah |
6 x 12V x 9.0 Ah / 6 x 12V x 9.0 Ah |
Unit Dimensions W x D x H (in) (mm) |
17.2 x 24.8 x 3.5 (438 x 630 x 88) |
Shipping Dimensions W x D x H (in) (mm) |
10.2 x 26.7 x 21.7 (258 x 782 x 550) |
Unit Weight, lb. (kg) |
90.8 (41.2) |
Shipping Weight, lb. (kg) |
96.1 (43.6) |
Environmental Requirements:
Operating Temperature, °F (°C) |
32° to 104° (0° to 40°) |
Operating Elevation, ft. (m) |
0 to 9,942 (0 to 3,000 without derating) Operating temperature reduced 9 °F (5 °C) for each additional 1,640ft. (500m) of altitude |
Relative Humidity |
20% – 90%, non-condensing |
Storage Temperature °F ( °C) |
5 to 122 (-15 to 50) |
Storage Relative Humidity |
10% to 90% non-condensing |
Audible Noise |
<45 dB @ Line mode |
Agency:
Safety |
UL 1778, c-UL-us Listed |
Emissions |
FCC Part 15, Class B |
Network Surge |
UL 497 B |
Transportation |
ISTA Procedure 1A Certification |
TAA Compliant |
Yes |
Miscellaneous:
Listings |
ENERGY STAR® 2.0 certified, UL1778, c-UL listed, RoHS2, REACH |
Topology |
On-line double conversion UPS; flexible rack/tower form factor |
Additional Info
Additional Info
Manufacturer | Vertiv |
---|---|
Form Factor | Rackmount |
Waveform in Battery Mode | Pure Sinewave |
Input Voltage | 120V AC |
Output (VA) | 3000VA |
Output Voltage | 120V AC |
PDU Total Outlets | No |
