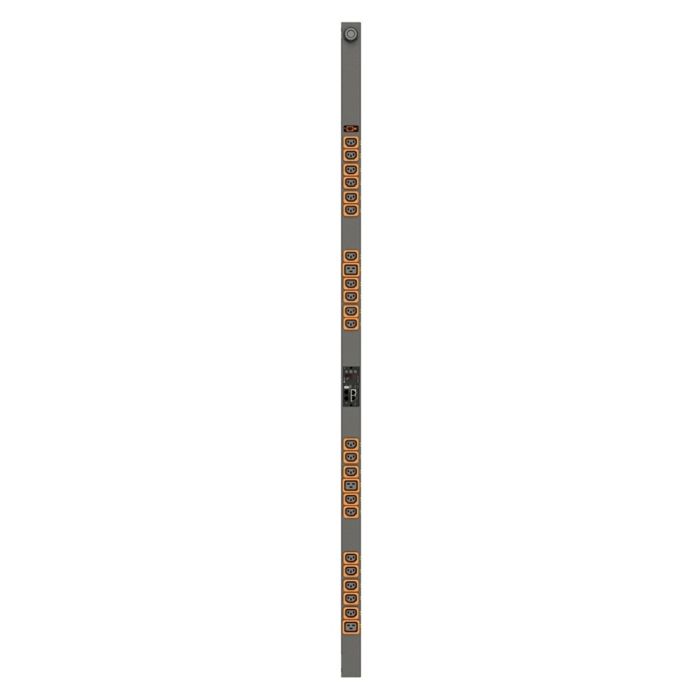

Vertiv VP8959NA3-B Switched Rack PDU, Zero U, 208V, 20A, L6-20P Input, (21) C13 & (3) C19 Output - Refurbished

Monitoring

Input power monitoring with Outlet switching. Environmental monitoring via optional remote sensors. Daisy chain Ethernet connectivity. Local high visibility LED display.

Input Monitoring

Phase (A) Monitoring (kWh, W, VA, PF, V, A)

Power Measurements Compliant with ANSI C12.1 and IEC 62053-
21 at 1% Accuracy Class Requirements.

Remote Power Management

Individual Outlet Switching with Optional User Defined Time
Delays and Sequential Power-up

Quantity Of Inputs

1

Voltage

200-240V

Current

20A

VA per Input (Load Capacity)

3.3kW (208V)

Frequency

50/60Hz

Over Current Protection

None

Switch

No

Scrolling / Rotatable Digital Display

Yes

Indicators - LED(s)

24

Power Cable Wire Gauge

12/3

Power Cable Length

10ft / 3m

Power Entry Location

Bottom Front

Plug Type

Combined Total Receptacle/Socket Quantity

24

Receptacle/Socket Type #1

- Quantity on Face

21

- U-Lock Color ID

1 Circuit = Orange

- Style

Individual

- Voltage per Receptacle/Socket

208V

Receptacle/Socket Type #2

Quantity on Face

3

- U-Lock Color ID

1 Circuit = Orange

- Style

Individual

- Voltage per Receptacle/Socket

208V

Network Connection

Dual 10/100/1000Mbps Ethernet

Protocols Supported

DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP,
SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+

Data Access Formats

CSV datalog, JSON API, JSON datalog

USB Support

Yes

IP Reset Button

Yes

Hard Reboot Button

Yes

Serial Connection

RS232 via RJ45

Remote Sensor RJ Connection Jacks

1 (Supports up to 16 Sensors)

Maximum Operating Temperature

60C / 140F

Heavy Steel - Powder Coat Finish

Black

Configuration

Zero U

Certification/Agency Approvals

FCC Part 15 Class A Conformance
RoHS Compliant
UL & c-UL Listed 62368-1

Chassis Dimensions (LxWxD)

66.25in x 2in x 2.6in / 1683mm x 51mm x 66mm

Shipped Weight

18lbs (8.16kg)
