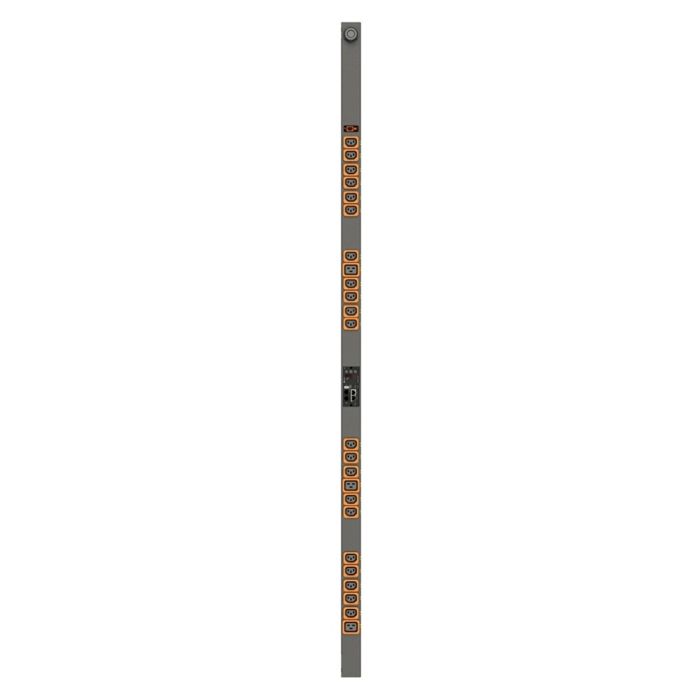

Vertiv VP8959NA3-R Switched Rack PDU, Zero U, 208V 20A
Model: VP8959NA3-R
Input: NEMA L6-20P
Output: (21) C13, (3) C19
Refurbished PDU
1 Year Warranty Included
In stock
Manufacturer: Vertiv
Model: VP8959NA3-R
Description: Vertiv Switched Rack PDU, Zero U, 20A, 208V
Input: NEMA L6-20P - (208V - 20A)
Output: (21) C13 & (3) C19
Condition: Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty available
Vertiv VP8959NA3-R Specifications:
Monitoring |
Input power monitoring with Outlet switching. Environmental monitoring via optional remote sensors. Daisy chain Ethernet connectivity. Local high visibility LED display. |
||
Input Monitoring |
Phase (A) Monitoring (kWh, W, VA, PF, V, A) |
||
Remote Power Management |
Individual Outlet Switching with Optional User Defined Time |
||
Quantity Of Inputs |
1 |
||
Voltage |
200-240V |
||
Current |
20A |
||
VA per Input (Load Capacity) |
3.3kW (208V) |
||
Frequency |
50/60Hz |
||
Over Current Protection |
None |
||
Switch |
No |
||
Scrolling / Rotatable Digital Display |
Yes |
||
Indicators - LED(s) |
24 |
||
Power Cable Wire Gauge |
12/3 |
||
Power Cable Length |
10ft / 3m |
||
Power Entry Location |
Bottom Front |
||
Plug Type |
|
||
Combined Total Receptacle/Socket Quantity |
24 |
||
Receptacle/Socket Type #1 |
|
||
- Quantity on Face |
21 |
||
- U-Lock Color ID |
1 Circuit = Orange |
||
- Style |
Individual |
||
- Voltage per Receptacle/Socket |
208V |
||
Receptacle/Socket Type #2 |
|
||
Quantity on Face |
3 |
||
- U-Lock Color ID |
1 Circuit = Orange |
||
- Style |
Individual |
||
- Voltage per Receptacle/Socket |
208V |
||
Network Connection |
Dual 10/100/1000Mbps Ethernet |
||
Protocols Supported |
DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, |
||
Data Access Formats |
CSV datalog, JSON API, JSON datalog |
||
USB Support |
Yes |
||
IP Reset Button |
Yes |
||
Hard Reboot Button |
Yes |
||
Serial Connection |
RS232 via RJ45 |
||
Remote Sensor RJ Connection Jacks |
1 (Supports up to 16 Sensors) |
||
Maximum Operating Temperature |
60C / 140F |
||
Heavy Steel - Powder Coat Finish |
Black |
||
Configuration |
Zero U |
||
Certification/Agency Approvals |
FCC Part 15 Class A Conformance |
||
Chassis Dimensions (LxWxD) |
66.25in x 2in x 2.6in / 1683mm x 51mm x 66mm |
||
Shipped Weight |
18lbs (8.16kg) |
